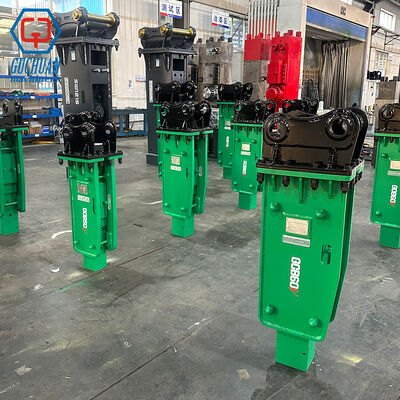

In global civil engineering, utility trenching, and urban site preparation, fleet managers and equipment distributors demand attachments that blend raw breaking force with zero-downtime maintainability. The GCB50 open type hydraulic breaker is engineered as a direct replacement for the SOOSAN SB30 equivalent hydraulic hammer, delivering factory-direct cost efficiency paired with international OEM-grade manufacturing. Designed specifically for 2.5 to 4.5-ton mini excavators, the GCB50 provides unmatched line-of-sight visibility, superior thermal management, and 100% component interchangeability with market-standard Korean hydraulic breakers.

       +-------------------------------------------------------------+
       |   SOOSAN SB30 Equivalent GCB50 Open Type Hydraulic Breaker   |
       +-------------------------------------------------------------+
                                      |
         +----------------------------+----------------------------+
         |                                                         |
         v                                                         v
+----------------------------------+             +----------------------------------+
|  Hydro-Pneumatic Power System    |             |  Advanced Metallurgy & Sealing   |
|  - 42CrMo Alloy Steel Piston     |             |  - Vacuum Carburizing Heat Tx    |
|  - High-Purity Nitrogen (N2)     |             |  - Cryogenic Stabilization (-196C)|
|  - Synchronized Oil-Gas Cycle    |             |  - EMG CNC Mirror Grinding       |
+----------------------------------+             +----------------------------------+
         |                                                         |
         +----------------------------+----------------------------+
                                      |
                                      v
       +-------------------------------------------------------------+
       | Field Applications: Utility Trenching & Concrete Demolition |
       +-------------------------------------------------------------+

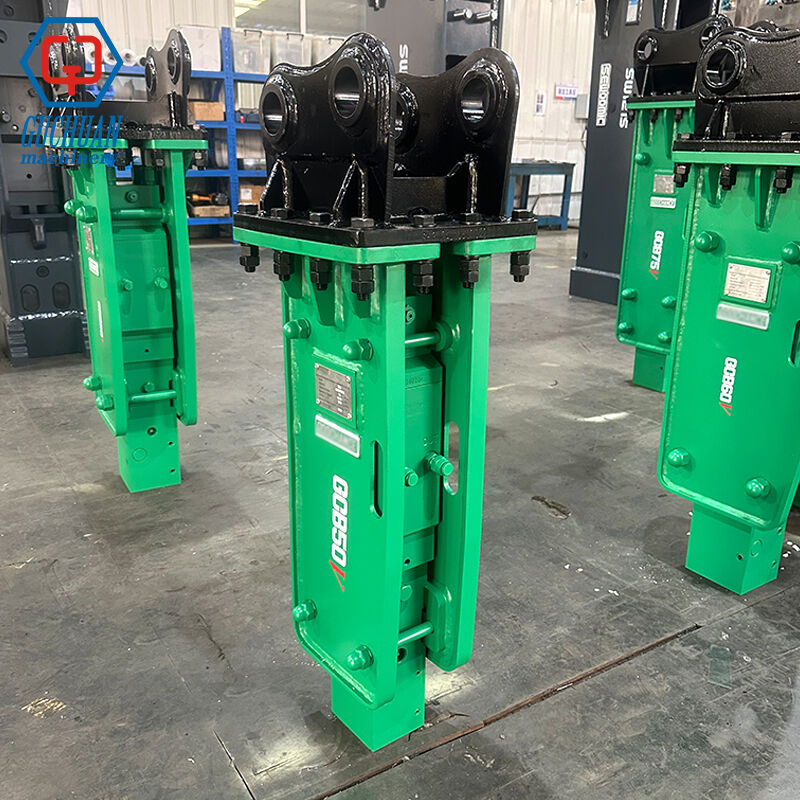

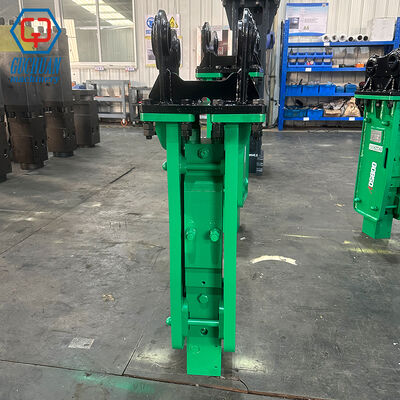

Structural Advantages of the Open Top Frame Layout

The open frame design top hydraulic breaker configuration is favored across rock breaking and demolition job sites due to its structural transparency and ergonomic advantages. Unlike fully enclosed box-type breakers, the open frame allows machine operators to maintain a direct line of sight to the chisel point and working surface, enabling millimeter-precise positioning during delicate trenching or foundation works.

Key structural benefits of the GCB50 top-mount structure include:

• Extended Vertical Reach: The top-mounted bracket extends the total working envelope of the mini excavator arm, making it the ideal hydraulic breaker attachment for extended reach trenching in narrow ditches or high vertical walls.

• Rapid Heat Dissipation: Open side-housing allows ambient airflow directly around the main valve and cylinder, preventing oil temperature spikes during continuous multi-shift operations in hot climates.

• Direct Field Maintenance: Technicians can inspect side bolts, adjust tension nuts, and access grease nipples instantly without removing a heavy outer acoustic casing, drastically cutting down-time during routine maintenance schedules.

Hydro-Pneumatic Working Principle & Kinetic Mechanics

To evaluate breaking energy output, equipment managers must inspect the internal mechanics of the GCB50. Operating as a high impact energy hydraulic breaker for demolition, the unit uses a synchronized hydro-pneumatic hybrid power cycle:

[Auxiliary Hydraulic Oil Inflow] ──► [Lower Cylinder Chamber Fills]
                                                  │
                                                  ▼
[Nitrogen Gas (N2) Accumulator Compression] ◄── [42CrMo Piston Retracts Upward]
                                                  │
                                                  ▼
[Directional Valve Pressure Shift] ──────────► [High-Speed Downward Piston Strike]
                                                  │
                                                  ▼
                                      [Kinetic Impact to 53mm Chisel]

1. Hydraulic Oil Retraction Phase: High-pressure hydraulic fluid supplied by the host excavator's auxiliary pump enters the lower cylinder chamber, driving the alloy steel piston upward.

2. Nitrogen Energy Accumulation: As the piston ascends, it compresses pure nitrogen ($N_2$) gas stored inside the top backhead chamber, converting hydraulic fluid flow into stored pneumatic potential energy.

3. Directional Valve Shift & Impact: Once the piston reaches its upper stroke limit, the internal directional spool valve shifts, releasing fluid pressure. The expanding nitrogen gas propels the piston downward at terminal velocity.

4. Kinetic Energy Transfer: The piston strikes the top end of the 53mm tool chisel, converting pneumatic and hydraulic energy into a high-density shockwave that shatters reinforced concrete, asphalt, and medium-hard rock strata.

Advanced Metallurgy & Precision Anti-Leak Systems

Continuous high-frequency striking generates internal shockwaves, friction, and thermal energy. The GCB50 counters these destructive forces through specialized alloy selection and precision heat treatment routines:

• 42CrMo High-Alloy Forgings: The piston, main cylinder, and front head are forged from high-density 42CrMo structural alloy steel, ensuring maximum tensile strength and resistance against micro-fractures under heavy vibration.

• Vacuum Carburizing & Cryogenic Stabilization: Power cell components undergo atmosphere-controlled vacuum carburizing to achieve an ultra-hard surface casing ($\text{HRC } 58\text{--}62$) around a ductile, shock-absorbing inner core ($\text{HRC } 30\text{--}38$). After carburizing, components undergo sub-zero treatment at $-196^\circ\text{C}$. These cryogenic treated hydraulic hammer spare parts eliminate residual stress and prevent thermal expansion during operation.

• EMG CNC Mirror Grinding & Step Seals: Internal cylinder bores and piston shafts are finished via CNC cylindrical mirror grinding to a surface roughness of $\text{Ra } 0.2\text{--}0.4\,\mu\text{m}$. Equipped with multi-stage polyurethane (PU) step seal kits, this anti leak hydraulic breaker cylinder piston configuration eliminates internal fluid bypass and maintains peak breaking pressure across long shifts.

Practical Job Site Applications

The GCB50 serves as a versatile, heavy duty demolition hydraulic breaker for trenching across civil infrastructure, rock crushing, and utility maintenance project scenarios:

• Municipal Trenching & Pipeline Excavation: Easily breaks through top-layer asphalt, frozen hardpan, and embedded concrete slabs to lay water lines, gas pipes, and fiber-optic networks.

• Urban Structural Demolition: Serves as a compact excavator rock crushing hammer attachment for removing concrete footings, foundation walls, driveways, and retaining structures in residential areas.

• Secondary Quarrying & Land Clearing: Breaks down oversized granite and limestone boulders, clearing bedrock ledges during site preparation for civil construction projects.

Global Excavator Compatibility Matrix

The GCB50 is engineered to fit standard 2.5 to 4.5-ton mini excavators via standard auxiliary hydraulic piping circuits:

• Cater-pillar: CAT 302.7, CAT 303, CAT 303.5, CAT 304

• Komatsu: PC26MR, PC30MR, PC35MR, PC45MR

• Kubota / Yanmar: KX033, KX040, U35 / VIO30, VIO35, VIO40

• Sany / Sunward: SY26U, SY35U / SWE25UF, SWE35UF

• Hitachi / Kobelco: ZX30U, ZX35U / SK28SR, SK35SR

• Vol-vo / Doosan / Hyundai: EC27D, ECR35D / DX27Z, DX35Z / HX30A, HX35A
