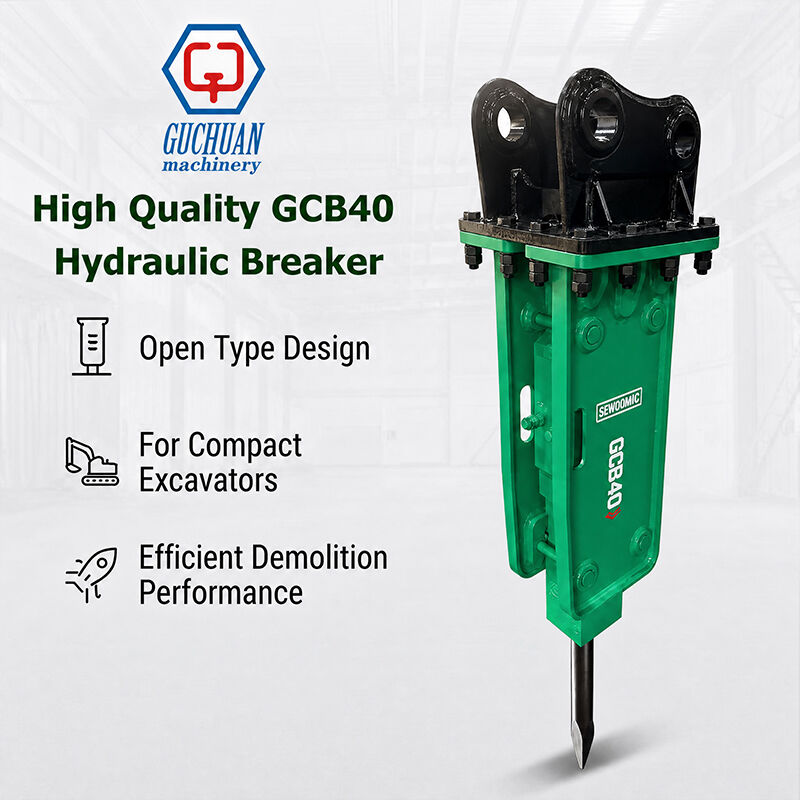

In compact earthmoving, utility trenching, and urban civil engineering, fleet owners and contractors demand attachments that combine high kinetic impact energy, operational reliability, and ease of field serviceability. The GCB40 Top-Type Hydraulic Breaker is an industrial-grade attachment engineered as a direct soosan sb20 equivalent top type hydraulic breaker.

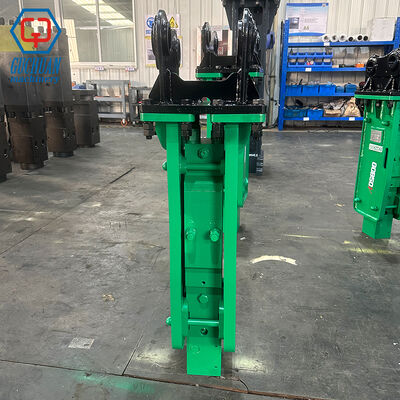

Tailored specifically as a hydraulic breaker for 1.2 to 3 ton mini excavator machinery, the GCB40 adopts a vertical top-mount structural orientation. This structure positions the host boom pin connection directly over the top of the breaker body, maximizing vertical reach, optimizing force distribution, and ensuring superior line-of-sight visibility for precision demolition in restricted working spaces.

Core Operating Principle: Hydro-Pneumatic Hybrid Energy Delivery

To achieve maximum breaking productivity with minimal fuel consumption, the GCB40 functions as a nitrogen gas charged hydraulic breaker hammer system. It utilizes a balanced hybrid power mechanism combining hydraulic fluid pressure with compressed pneumatic force:

1. Piston Retraction & Gas Compression: High-pressure hydraulic oil supplied by the mini excavator’s main auxiliary pump enters the lower cylinder chamber, lifting the heavy alloy piston upward. This movement compresses high-purity nitrogen gas ($N_2$) housed in the back-head accumulator, converting fluid flow into stored potential energy.

2. Explosive Downward Impact: As the piston reaches top dead center, an internal spool valve redirects hydraulic pressure to the upper chamber. The compressed nitrogen expands rapidly, driving the piston downward at terminal speed to strike the 45mm chisel diameter mini hydraulic breaker tool.

Operating as an open frame top mount hydraulic breaker, this kinetic setup delivers a high impact energy output at an adjustable rate of 600 to 1,200 blows per minute (BPM).

Advanced Metallurgy & Precision Manufacturing

Continuous high-frequency hammering subjects internal components to heavy mechanical shock, friction, and thermal stress. To guarantee long service life, every GCB40 undergoes stringent metallurgical processing:

• Alloy Steel Forgings: Core power cell components, including the cylinder and piston, are forged from high-purity 42CrMo structural alloy steel. This guarantees superior tensile strength and fatigue resistance under constant impact.

• Vacuum Carburizing & Cryogenic Stabilization: Wear surfaces undergo atmosphere-controlled vacuum carburizing to create an ultra-hard exterior shell (HRC 58–62) supported by a ductile, shock-absorbing core (HRC 30–38). Following heat treatment, components undergo sub-zero treatment at -196°C. These cryogenic treated hydraulic breaker wear parts eliminate internal stresses, preventing thermal deformation and micro-cracks under high-duty cycles.

• CNC Grinding & Multi-Stage Sealing: The piston shaft and cylinder bore are ground using CNC cylindrical machinery to achieve a mirror finish ($Ra\,0.2\text{--}0.4\,\mu\text{m}$). Integrated with premium polyurethane step seals, this anti leak hydraulic breaker cylinder piston configuration eliminates fluid bypass, maintains hydraulic efficiency, and prevents oil leakage.

Technical Specifications & Carrier Fitment Matrix

The GCB40 offers complete soosan sb20 spare parts compatible hydraulic breaker functionality, enabling seamless interchangeability of tool chisels, seal kits, tie rods, and bushings.

Key Job Site Applications

Designed as a cost effective hydraulic breaker for mini excavator units, the GCB40 is optimized for a wide variety of compact construction and utility operations:

• Utility Trenching & Municipal Infrastructure: Functions as a heavy duty demolition hydraulic breaker for trenching through asphalt roads, frozen hardpan, and buried masonry for water, gas, and fiber-optic installations.

• Urban Concrete Structure Demolition: Acts as an urban concrete demolition hydraulic breaker hammer for breaking interior concrete floor slabs, footings, retaining walls, and brickwork in tight spaces.

• Site Preparation & Rock Clearing: Serves as a compact excavator rock crushing hammer attachment for fracturing boulders, ledge rock, and hard ground during foundation excavation and landscaping.
