Introduction: High-Efficiency Acoustic Isolation for Compact Carriers

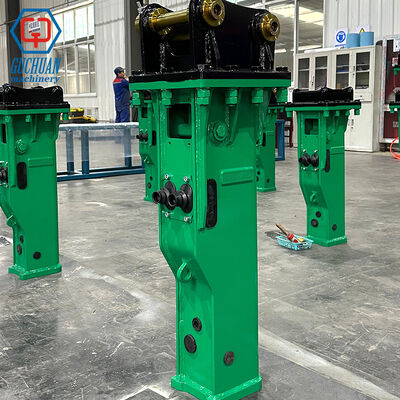

In modern urban civil engineering and utility construction, noise restrictions and carrier protection are critical operational priorities. The GCB40 silent box type hydraulic breaker is an advanced, high-performance demolition attachment engineered as a direct soosan sb20 equivalent silenced hydraulic breaker. Designed specifically for 1.2 to 3.0-ton mini excavators, the GCB40 integrates full-box acoustic shielding, hydro-pneumatic power delivery, and high-precision metallurgy into a compact frame. By offering complete interchangeability with original SOOSAN SB20 components, the GCB40 provides rental fleets, equipment distributors, and B2B buyers with a cost effective hydraulic breaker for mini excavator applications without compromising on structural durability or impact output.

Technical Working Principle and Kinetic Energy Transfer

Understanding the operational excellence of the GCB40 requires analyzing the hydraulic breaker internal structure and working principle. The unit utilizes a synchronized nitrogen-hydraulic kinetic energy loop to convert fluid pressure into dynamic impact energy:

1. Hydraulic Auxiliary Fluid Accumulation: High-pressure hydraulic oil supplied by the mini excavator’s main auxiliary circuit enters the lower cylinder chamber, forcing the high-alloy piston upward against the top backhead.

2. Nitrogen Gas Compression Phase: As the piston ascends, it compresses high-purity nitrogen gas housed within the internal backhead accumulator. This nitrogen charged mini excavator hydraulic breaker design stores fluid energy as pneumatic potential energy, ensuring smooth force accumulation.

3. High-Speed Downward Strike: Upon reaching the apex of the stroke, internal directional control valves shift fluid flow to the upper cylinder chamber. Expanding nitrogen gas combined with incoming hydraulic oil propels the piston downward at maximum velocity.

4. Energy Transfer to Chisel: The precision-ground piston delivers a high-frequency impact directly to the top shank of the tool chisel. Operating as a high frequency hydraulic hammer for mini excavators, this energy propagates through the chisel tip to fracture hard rock, asphalt, or reinforced concrete structures.

 [Auxiliary Fluid Input] ──► [Lower Chamber Fills] ──► [Piston Retracts Upward]
                                                               │
                                                               ▼
 [High-Velocity Impact Strike] ◄── [Spool Valve Shifts] ◄── [Nitrogen (N2) Compressed]

Engineering Design & Structural Advantages

1. Full-Box Acoustic Enclosure & Shock Damping

Operating equipment in residential zones requires stringent noise and vibration control. Built as a low noise silent box hydraulic breaker, the GCB40 features a fully sealed outer steel body line with high-density polyurethane dampening buffers:

• Decibel Reduction: The enclosed box body deadens mechanical chatter and internal impact noise, creating a noise reduction hydraulic hammer for mini excavators compliant with strict urban noise regulations.

• Carrier Arm Protection: The integrated polyurethane cushioning blocks absorb up to 85% of structural recoil vibration before it reaches the carrier boom pin assembly, functioning as an effective hydraulic breaker recoil vibration dampening system.

• Internal Component Shielding: The heavy-duty steel outer frame shields internal tie rods, seals, and cylinder bores against falling concrete debris, dust, and side impacts on tight job sites.

2. Advanced Metallurgy, Cryogenic Stabilization & Anti-Leak Systems

To guarantee operational reliability under extended duty cycles, the inner power cell of the GCB40 undergoes precise manufacturing processes:

• 42CrMo Structural Alloy Forgings: Piston and cylinder components are forged from high-purity 42CrMo structural alloy steel, providing exceptional tensile strength and fatigue resistance.

• Vacuum Carburizing & Cryogenic Treatment: Core components undergo atmosphere-controlled vacuum carburizing to establish a hard outer wear shell (HRC 58–62) combined with a ductile, impact-absorbing core (HRC 30–38). The power cell then undergoes sub-zero cryogenic stabilization at -196°C to eliminate residual stress, creating high-performance cryogenic treated hydraulic breaker wear parts.

• EMG CNC Mirror Grinding & Precision Seals: The cylinder internal bore and piston shaft undergo cylindrical CNC mirror grinding to achieve a surface roughness rating of $Ra\,0.2\text{--}0.4\,\mu\text{m}$. Paired with premium multi-stage polyurethane step seals, this anti leak hydraulic breaker cylinder piston configuration eliminates oil bypass and maintains continuous operating pressure.

Key Applications & Carrier Compatibility Matrix

The GCB40 is a versatile mini excavator rock breaker attachment supplier solution designed for various compact excavation and light demolition tasks:

• Urban Infrastructure & Utility Trenching: Functions as a heavy duty demolition hydraulic breaker for trenching through asphalt, hard pan, and frozen ground for gas, water, and fiber optic line installation.

• Indoor & Residential Structural Demolition: Acts as an urban concrete demolition hydraulic breaker hammer for dismantling concrete slabs, foundations, brick walls, and footings inside buildings or tight spaces.

• Landscape Construction & Foundation Works: Serves as a compact excavator rock crushing hammer attachment for fracturing boulders, retaining walls, and hard ground formations during site preparation.

Technical Parameters (GCB20 / SOOSAN SB20 Class)
