1. Executive Overview & Global Market Demand

In the modern earthmoving and civil engineering machinery sector, the demand for compact, durable, and cost-effective hydraulic attachments has grown exponentially. Construction contractors and equipment rental fleets worldwide are actively searching for a reliable side type hydraulic breaker that delivers the striking power and operational longevity of premier international brands without the heavy price premium. Engineered by Jiangsu Guchuan Machinery Co., Ltd. under the SEWOOMIC brand, the GCB60 hydraulic breaker is developed as an exact, high-performance equivalent to the industry-benchmark SOOSAN SB40 side-mount breaker.

Specially optimized for 4.0 to 8.0-ton compact excavators, the GCB60 provides an exceptional balance of high kinetic impact force, structural stability, and maintenance accessibility. Serving as a high-demand hydraulic breaker for mini excavator units, this breaker is an ideal attachment for utility trenching, municipal road repair, concrete demolition, and site preparation.

┌───────────────────────────────┐
                  GCB60
├───────────────────────────────┤
│            Back Head Assembly (Nitrogen Accumulator)         │
├───────────────────────────────┤
│         Main Cylinder & Forged Alloy Piston Assembly         │
├───────────────────────────────┤
│           Front Head & Dual Retainer Pin Housing             │
├───────────────────────────────┤
│            Φ 68mm / 75mm Moil or Wedge Tool Chisel          │
└───────────────────────────────┘

2. Structural Architecture: Triangle Side-Mount Design Advantages

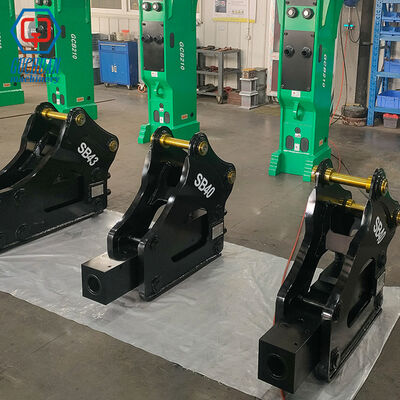

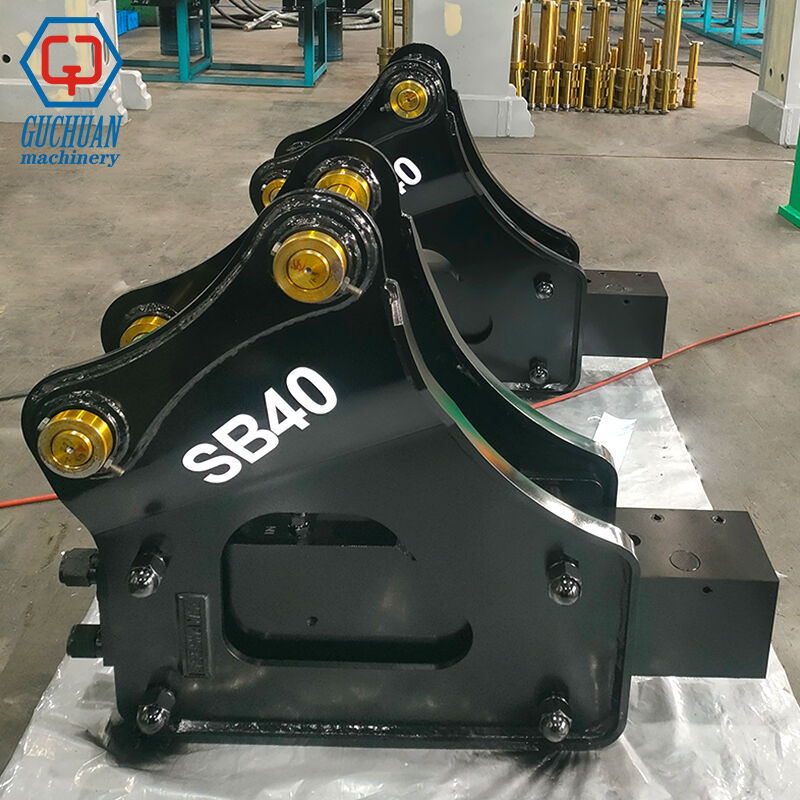

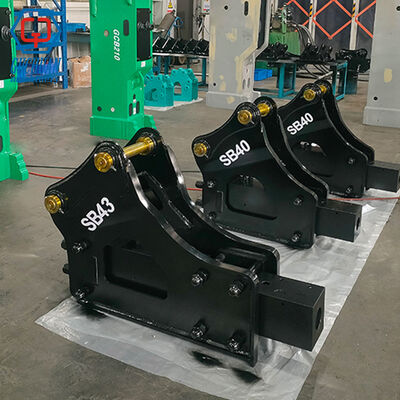

The defining engineering highlight of the GCB60 is its open-frame triangle bracket structure, widely recognized in global search trends as a triangle type hydraulic breaker or side mount hydraulic rock hammer. Unlike top-mount vertical breakers or fully enclosed box-type silent hammers, the side-mount frame locates the pinning points along the lateral side of the breaker's power cell.

• Lower Center of Gravity & Maximum Machine Stability: By mounting the installation brackets on the side of the housing, the total operational length is shortened, bringing the attachment's center of mass closer to the dipper arm. This low center of gravity rock hammer profile reduces boom vibration, minimizes wear on the excavator's connection pins, and prevents machine tipping during full-reach digging or sloping work.

• Extended Operational Reach & Flexibility: The compact body profile allows operators to maneuver easily in tight trenches, utility channels, and low-clearance urban sites, making it a highly productive heavy duty side type breaker for complex earthworks.

• Direct Field Maintenance Access: Featuring a side-bolt open-frame design, technicians can perform daily inspections, check side bolt tension, and replace internal wear parts directly on job sites. This open frame hydraulic hammer attachment structure eliminates the need to dismantle a heavy exterior shell, dramatically reducing unscheduled labor hours and operational downtime.

3. Hydro-Pneumatic Working Principle & Precision Manufacturing

The power output of the GCB60 relies on a synchronized hydro-pneumatic energy distribution system. Operating as an advanced nitrogen charged hydraulic breaker, the tool combines high-pressure hydraulic oil supplied by the host excavator with compressed nitrogen ($N_2$) gas stored within the upper back head chamber.

[Auxiliary Hydraulic Fluid Entry] ──► [Lower Cylinder Chamber Fills]
                                                  │
                                                  ▼
[Nitrogen (N2) Accumulator Compression] ◄── [42CrMo Piston Retracts Upward]
                                                  │
                                                  ▼
[Directional Valve Pressure Release] ────────► [High-Speed Downward Piston Strike]
                                                  │
                                                  ▼
                                       [Impact Energy Transferred to Chisel]

1. Hydraulic Retraction & Energy Storage: High-pressure hydraulic fluid enters the lower chamber, driving the alloy piston upward and compressing pure nitrogen gas inside the head chamber to build potential pneumatic energy.

2. Explosive Downward Stroke: Once the internal control valve shifts, the compressed nitrogen gas expands violently, accelerating the piston downward at terminal velocity to strike the shank of the tool chisel.

To guarantee reliable operation without pressure loss, thermal deformation, or fluid bypass, Jiangsu Guchuan Machinery Co., Ltd. incorporates rigorous metallurgical standards:

• Precision CNC Mirror Grinding: The internal cylinder sleeve undergoes CNC cylindrical mirror polishing to achieve sub-micron tolerances, forming an anti leak hydraulic breaker cylinder that preserves working pressure even under high ambient operating temperatures.

• Vacuum Carburizing & Cryogenic Treatment: Internal pistons are forged from high-density 42CrMo structural alloy steel. Subjected to atmospheric vacuum carburizing heat treatment and sub-zero liquid nitrogen cryogenics (-196°C), every precision ground hydraulic breaker piston delivers exceptional surface hardness (HRC 58–62) and deep core impact toughness.

• High Strike Frequency: Delivers an adjustable strike rate between 500 and 900 blows per minute (BPM), operating as a high impact rate rock hammer for fast material fracturing.

4. Technical Specifications & Host Excavator Compatibility

The GCB60 is engineered to perfectly match the hydraulic output profiles of 4 to 8-ton class mini and midi excavators. It is widely sought after by equipment operators searching for a hydraulic breaker for 5 ton excavator or a hydraulic rock hammer for excavator attachment.

Engineering Specifications (SEWOOMIC GCB60 Side Type)

Wide Host Carrier Compatibility (4 – 8 Ton Excavators)

• Cater-pillar: CAT 304, CAT 305, CAT 305.5E2, CAT 306, CAT 307.5

• Komatsu: PC40MR, PC45MR, PC50MR, PC55MR, PC60

• Kubota: KX040-4, KX057-4, KX161, U48-4, U55-4

• Sany: SY35U, SY55C, SY60C, SY75C

• Hitachi / Kobelco: ZX45, ZX55U, ZX60 / SK45SR, SK55SR, SK75SR

• Yanmar / Takeuchi: ViO45, ViO50, ViO55 / TB250, TB260

• Vol-vo / Doosan / Hyundai: EC55, ECR58 / DX55, DX60 / R55, R60

5. Primary Job Site Applications

Whether functioning as an urban demolition hydraulic rock breaker or a utility trenching excavator breaker attachment, the GCB60 handles challenging civil works with ease:

• Utility Trenching & Pipeline Excavation: Rapidly cuts narrow trenches through frozen soil, hard pan, shale strata, and asphalt layers for water, gas, and telecom lines.

• Urban Concrete Demolition: Efficiently fractures reinforced concrete footings, floor slabs, retaining walls, and brick masonry in space-constrained job sites.

• Road Maintenance & Municipal Works: Rips up concrete pavements, asphalt road surfaces, bridge decks, and curb structures.

• Landscaping & Foundation Work: Breaks down oversized rock boulders and bedrock outcroppings during civil site preparation.

6. B2B Commercial Value: Direct Factory Sourcing & Parts Interchangeability

For international distributors, equipment dealers, and B2B purchasing agents, partnering with a certified b2b hydraulic breaker supplier china brings significant competitive ROI. Manufactured in ISO9001-certified facilities by Jiangsu Guchuan Machinery Co., Ltd., the GCB60 delivers unmatched commercial benefits:

• 100% Component Interchangeability: All primary wear parts—including pistons, front heads, dual retainer pins, chisels, bushings, and seal kits—offer complete hydraulic breaker parts interchangeability with original SOOSAN SB40 units. Dealers can service clients without stocking proprietary spare parts.

• Direct Factory Cost Advantage: Procuring through a china hydraulic breaker factory direct channel ensures wholesale pricing, flexible OEM/ODM branding choices, and direct technical support.

• Heavy-Duty Construction: Built as a durable side mount breaker hammer, the high-tensile steel frame resists abrasive wear, ensuring high resale value and establishing SEWOOMIC as a trusted mini excavator hydraulic hammer supplier and provider of top-tier excavator hydraulic concrete breaker attachment solutions globally.
