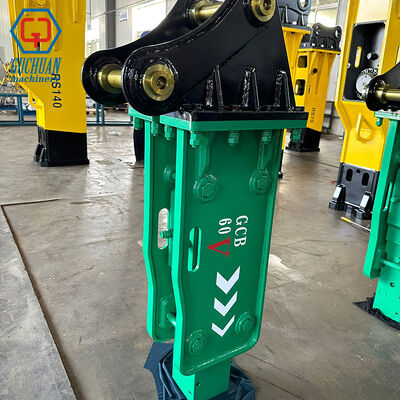

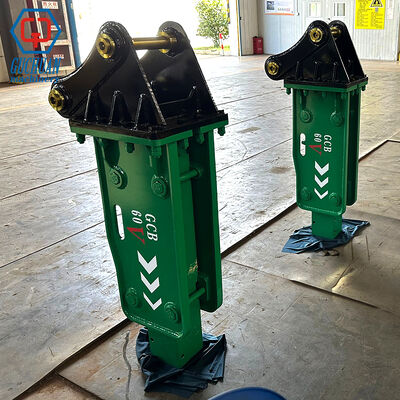

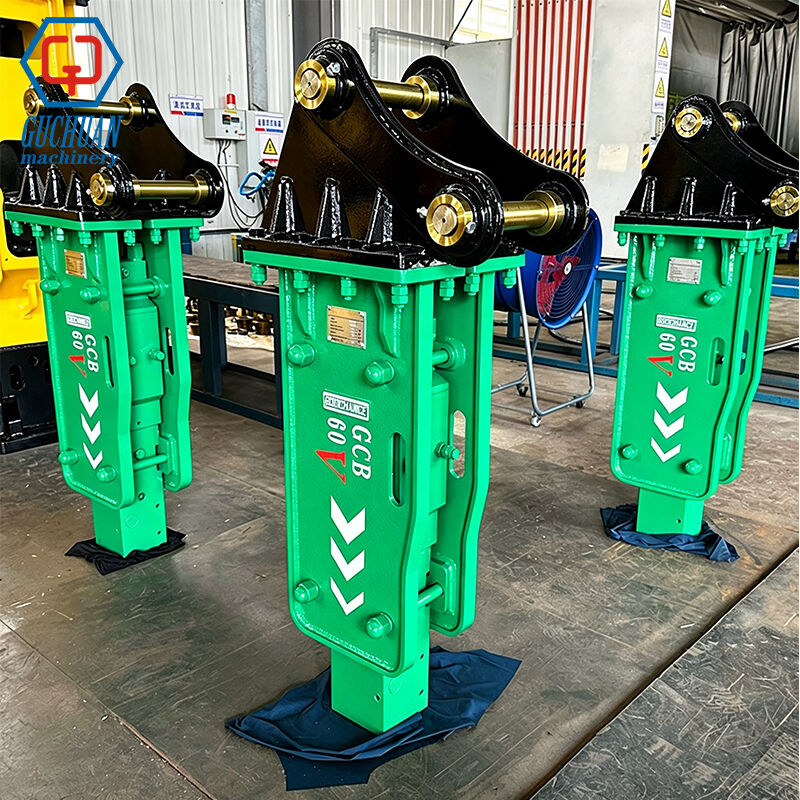

The GCB60 Top-Type Hydraulic Breaker is high-performance attachment engineered as a direct soosan sb40 hydraulic breaker equivalent for mini and compact machinery. Tailored specifically as a hydraulic breaker for 4 to 7 ton excavator units, the GCB60 combines a vertical top-mount structural bracket with high kinetic impact energy to maximize working range, operator visibility, and rock-fracturing efficiency on demanding job sites.

Executive Engineering Overview & Market Positioning

In modern civil engineering, trenching, and urban construction, equipment owners require high productivity with minimal maintenance overhead. The GCB60 functions as a premium top type hydraulic breaker for excavator fleets, providing identical mechanical dimensions, bolt patterns, and internal fluid channels to standard Korean SB40 systems.

Designed as a top mount hydraulic breaker attachment, the GCB60 positions its mounting pin bracket directly on top of the hammer housing. This structural orientation extends the total working reach of the excavator boom, directs downward kinetic force vertically into the substrate, and provides operators with an unobstructed line of sight during precise trenching and site clearing operations. Operating as an open frame top mount hydraulic hammer, it allows field technicians immediate access to side bolts, grease nipples, and high-pressure hydraulic lines without needing to dismantle an exterior shell.

Kinetic Mechanics & Nitrogen-Hydraulic Hybrid Synergy

The power generation mechanism of the GCB60 relies on a synchronized oil-gas energy transfer loop, operating as a high-efficiency nitrogen charged hydraulic breaker hammer system. By combining high-pressure oil supplied by the carrier’s auxiliary circuit with stored pneumatic potential energy, the breaker delivers high single-blow kinetic force.

[Auxiliary Hydraulic Fluid Inflow] ──► [Lower Cylinder Chamber Fills]
                                                       │
                                                       ▼
[Nitrogen Gas (N2) Accumulator Compression] ◄── [Alloy Piston Retracts Upward]
                                                              │
                                                              ▼
[Spool Valve Shifts Pressure Release] ──────► [Explosive Downward Piston Strike]

1. Energy Accumulation Phase: Auxiliary hydraulic oil from the excavator pump enters the lower cylinder chamber, lifting the alloy steel piston upward. As the piston ascends, it compresses high-purity nitrogen gas ($N_2$) housed within the back-head accumulator, storing hydraulic energy as pneumatic potential energy.

2. Explosive Downward Impact: Upon reaching the apex of its stroke, the internal control valve shifts, venting fluid from the upper chamber. The compressed nitrogen gas expands rapidly, propelling the piston downward at terminal velocity to strike the shank of the tool chisel.

This design transforms the unit into a high impact energy hydraulic breaker capable of fracturing high-density granite, basalt, and reinforced concrete slab footings with minimal fluid consumption.

Precision Metallurgy, Heat Treatment & Fluid Sealing

Continuous high-frequency hammering generates mechanical shock and heat. To guarantee structural durability under severe duty cycles, the GCB60 utilizes advanced metallurgical processes:

• Alloy Steel Forgings: Pistons and main cylinders are forged from high-grade $42\text{CrMo}$ structural alloy steel, delivering high tensile resilience against fracturing under impact.

• Vacuum Carburizing & Cryogenic Stabilization: Core components undergo deep-case vacuum carburizing heat treatment to achieve a surface hardness of $\text{HRC } 58\text{--}62$ paired with a shock-absorbing core ($\text{HRC } 30\text{--}38$). Sub-zero liquid nitrogen treatment at $-196^\circ\text{C}$ eliminates residual stress, producing cryogenic treated hydraulic breaker wear parts that resist micro-cracking and thermal expansion.

• EMG CNC Mirror Grinding: The cylinder internal bore and piston shaft undergo micro-finish grinding to achieve a surface roughness rating of $Ra\,0.2\text{--}0.4\,\mu\text{m}$. Combined with multi-stage polyurethane seals, this anti leak hydraulic breaker cylinder piston assembly eliminates internal fluid bypass and maintains constant operating pressure.

Technical Specifications & Carrier Compatibility Matrix

Matching the auxiliary pump output of the carrier to the hydraulic breaker operating pressure and oil flow specifications is critical for optimal blow frequency and thermal management.

Global Excavator Compatibility Matrix

The GCB60 operates as a versatile top mount hydraulic rock breaker for mini excavator configurations across global carrier brands:

• Cater-pillar: CAT 304, CAT 305, CAT 305.5E2, CAT 306

• Komatsu: PC40MR, PC45MR, PC50MR, PC55MR

• Kubota & Yanmar: KX040, KX161, U45, U55 / VIO45, VIO50, VIO55

• Sany & Sunward: SY35U, SY55C / SWE50, SWE60

• Hitachi & Kobelco: ZX45, ZX55U / SK45SR, SK55SR

• Vol-vo, Doosan & Hyundai: EC55, ECR58 / DX55, DX60 / R55, R60

Multi-Sector Field Applications

Engineered as a heavy duty excavator rock breaker attachment, the GCB60 provides versatility across multiple job site applications:

• Utility Pipeline & Municipal Trenching: Serves as a heavy duty trenching hydraulic breaker hammer for cutting through asphalt layers, bedrocks, and frozen soil during utility installation.

• Concrete & Building Demolition: Functions as a hydraulic concrete demolition breaker attachment to break reinforced foundations, retaining walls, and floor slabs.

• Secondary Quarrying & Boulder Splitting: Acts as an excavator mounted rock breaking hammer in aggregate pits, breaking oversized boulders down to crusher feed size.

• Vertical Civil Construction: Serves as a top mounted excavator hammer for vertical demolition tasks, reaching high walls and deep excavations with stable vertical force.

B2B Commercial Advantages & Sourcing ROI

For machinery distributors, rental fleet operators, and equipment buyers, selecting a cost effective hydraulic hammer attachment for excavators directly influences long-term operational profitability.

• 100% Component Interchangeability: All critical wear parts—including chisels, pistons, seal kits, and wear bushings—are dimensionally identical to standard Korean SB40 parts. Sourcing interchangeable soosan sb40 breaker spare parts allows fleet managers to minimize inventory overhead.

• Direct Factory Manufacturing: Sourcing directly from a certified factory direct hydraulic rock breaker manufacturer eliminates intermediary markups and guarantees consistent quality control.

• OEM/ODM Customization: Partnering with an established b2b excavator attachment OEM factory supplier provides custom mounting bracket pin dimensions, personalized paint schemes, and private labeling.

Excavator Hydraulic Breaker Chisel Maintenance Guide

To maximize component service life and maintain peak performance, operator crews should observe this excavator hydraulic breaker chisel maintenance guide:

1. Daily Lubrication: Apply high-temperature lithium-molybdenum grease to the chisel shank and front bushing every 2 hours of continuous operation to prevent metal-to-metal galling.

2. Blank Firing Prevention: Avoid continuous dry firing without resistance against rock surfaces to protect retainer pins and pistons from kinetic stress fractures.

3. Piston & Bushing Clearance Inspection: Regularly measure the gap between the tool chisel and front bushing. Replace bushings when clearance exceeds factory wear limits to avoid piston misalignment.
