1. Executive Summary & Market Demand Analysis

In today’s global construction and infrastructure equipment market, the demand for compact yet heavy-duty excavator attachments has grown rapidly. Mini and midi excavators in the 6 to 9-ton weight class serve as the backbone for urban utility trenching, road reconstruction, and building demolition. To operate effectively in noise-restricted metropolitan areas, contractors require a silent box type hydraulic breaker that delivers maximum striking energy without violating municipal noise regulations or causing carrier boom fatigue.

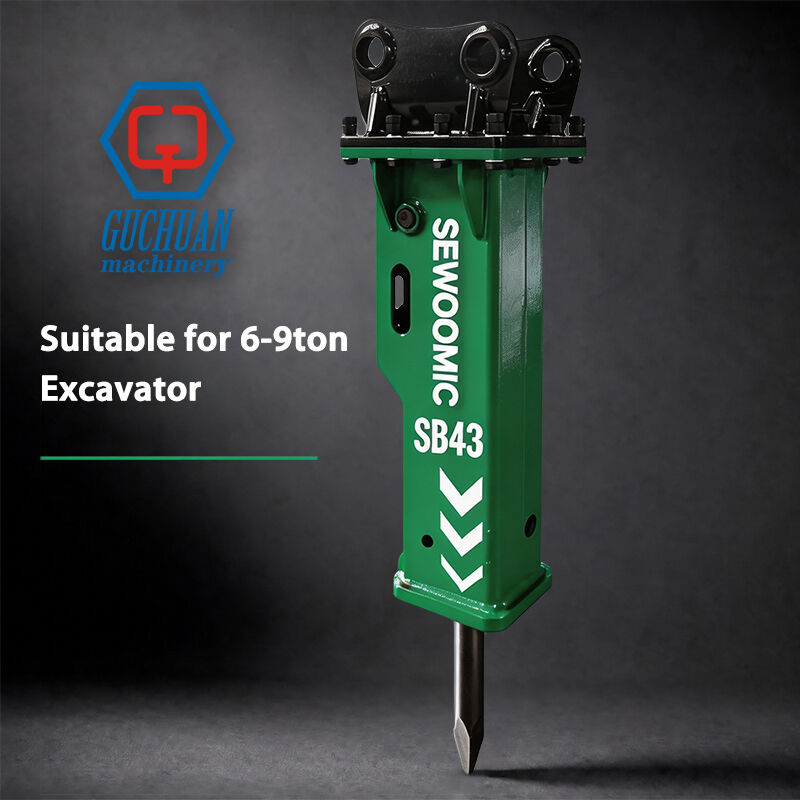

The SEWOOMIC GCB75 is engineered as a benchmark soosan sb43 equivalent hydraulic breaker, offering identical internal component compatibility, superior acoustic isolation, and enhanced hydraulic anti-leak performance. Designed for global B2B distributors and fleet operators seeking maximum ROI, the GCB75 serves as a high-efficiency hydraulic breaker for mini excavator setups, combining Korean mechanical principles with factory-direct manufacturing precision.

2. Kinetic Energy & Nitrogen-Hydraulic Working Principle

The striking efficiency of the GCB75 relies on an optimized hybrid power transfer system that combines carrier hydraulic flow with compressed gas expansion. Functioning as a nitrogen charged hydraulic hammer breaker, the unit stores and releases kinetic energy through a synchronized two-stage operating cycle:

[Auxiliary Hydraulic Pressure Input] ──► [Upward Piston Compression] ──► [Nitrogen Gas Storage]
                                                                                      │
[Explosive Impact on Chisel Tool] ◄── [Downwards High-Speed Stroke] ◄───────┘

1. Upward Compression Stroke: High-pressure hydraulic oil supplied by the excavator’s main auxiliary pump fills the lower cylinder chamber, driving the piston upward. This stroke compresses pure nitrogen ($N_2$) gas held in the back-head chamber, converting fluid energy into stored pneumatic energy.

2. Explosive Downward Impact: When the internal directional valve shifts, hydraulic fluid discharges into the return line, allowing the compressed nitrogen gas to expand instantly. This propels the precision ground hydraulic breaker piston downward at high speed to strike the tool chisel shank.

Operating as a high impact nitrogen hydraulic breaker, the GCB75 produces high impact energy per blow at an adjustable blow rate of 400 to 800 BPM, making it an exceptionally reliable high energy mini excavator hammer for tough rock strata and reinforced concrete.

3. Structural Shielding, Acoustic Isolation & Boom Protection

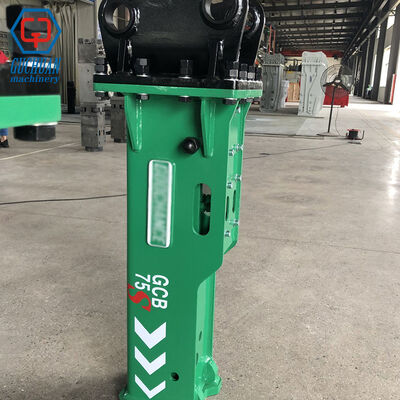

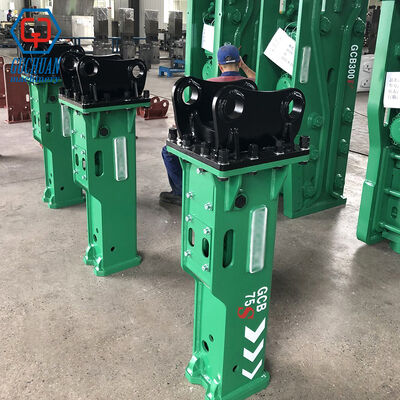

Noise reduction and structural durability are essential in modern job-site environments. The GCB75 features a fully enclosed steel housing, functioning as a premium silenced excavator rock hammer attachment.

+-------------------------------------------------------------+
|                 Outer Heavy-Duty Box Frame                  |
|   +-----------------------------------------------------+   |
|   |        Polyurethane Cushion & Dampening Pads        |   |
|   |   +---------------------------------------------+   |   |
|   |   |             Inner Power Cell                |   |   |
|   |   |  (Back Head - Main Cylinder - Front Head)   |   |   |
|   |   +---------------------------------------------+   |   |
|   +-----------------------------------------------------+   |
+-------------------------------------------------------------+

As an advanced polyurethane damped silent excavator breaker, high-density polyurethane dampening pads and side guides are positioned between the inner power cell and the outer steel box. This design provides three major operational benefits:

• Acoustic Insulation: The fully sealed box frame dampens mechanical chatter and internal impact noise, transforming the attachment into a low noise excavator hydraulic hammer suitable for night shifts and urban job sites.

• Recoil Vibration Dampening: High-energy impacts send recoil shockwaves back through the attachment. The internal polyurethane cushions absorb up to 85% of recoil energy, protecting the excavator’s boom pins, bushings, and hydraulic arm from micro-fractures.

• Debris & Dust Shielding: The outer housing shields internal tie rods, seals, and cylinder components from falling rock debris, dust, and external impacts, making it the ideal urban concrete demolition breaker hammer.

4. Advanced Metallurgy, Cryogenic Processing & Anti-Leak Systems

Hydraulic oil leaks and premature piston scoring are common failure points in low-grade attachments. To eliminate these issues, Jiangsu Guchuan Machinery Co., Ltd. implements strict metallurgical and machining controls:

Technical Manufacturing Flowchart

[42CrMo Alloy Steel Billet Forging]
               │
[Precision CNC Deep Cylinder Boring]
               │
[Atmosphere-Controlled Vacuum Carburizing]
               │
[Deep Sub-Zero Cryogenic Processing (-196°C)]
               │
[Multi-Stage Stress-Relief Tempering]
               │
[EMG CNC Cylindrical Mirror Grinding (Ra 0.2–0.4 µm)]

• High-Purity 42CrMo Alloy Steel: Core power cell components are forged from 42CrMo structural alloy steel, creating a high durability alloy steel breaker piston capable of withstanding continuous tensile and compressive stress.

• Vacuum Carburizing & Cryogenic Stabilization: Thermal processing produces a deep wear-resistant outer shell (HRC 58–62) backed by a shock-absorbing ductile core (HRC 30–38). Components then undergo sub-zero cryogenic treatment at -196°C to convert residual austenite into stable martensite. These cryogenic treated hydraulic breaker parts eliminate internal mechanical stress and prevent thermal expansion deformation.

• EMG Precision Grinding & Anti-Leak Seals: Cylinder bores and pistons are finished using EMG CNC cylindrical grinders to achieve sub-micron dimensional tolerances ($Ra\ 0.2 - 0.4\ \mu m$). Paired with high-tier polyurethane step seals, this anti leak hydraulic breaker cylinder configuration prevents hydraulic fluid bypass and maintains system operating pressure.

5. Technical Specifications & Global Carrier Compatibility

Technical Specifications: SEWOOMIC GCB75

Universal Carrier Fitment Matrix (6 – 9 Ton Excavator Class)

• Cater-pillar: CAT 306, CAT 307.5, CAT 308 CR

• Komatsu: PC55MR, PC60, PC70, PC78US, PC88MR

• Sany: SY55C, SY60, SY75C, SY95C

• Kubota / Takeuchi: KX057-4, KX080-4, U55, TB260, TB280FR, TB290

• Vol-vo / Hitachi: EC60, ECR88 / ZX60, ZX75, ZX85

• Doosan (Develon) / Hyundai: DX60, DX80 / R60, R80, HX60A, HX80A

6. Applications & B2B Manufacturer Advantages

Versatile Application Scenarios

• Municipal Infrastructure & Trenching: Functions as a specialized municipal trenching rock breaker attachment for opening utility trenches through hard asphalt, concrete, and subsoil strata.

• Urban Concrete Demolition: Serves as a hydraulic concrete breaker for mini excavator fleets, dismantling concrete slabs, foundations, retaining walls, and footings in residential zones.

• Secondary Rock Quarrying: Operates as a rock breaker for 6 ton excavator or hydraulic breaker for 8 ton excavator setups to fracture oversized boulders in gravel pits and aggregate yards.

Strategic B2B Supplier Value

1. 100% Interchangeable Components: All wear parts—including chisels, bushings, pistons, and seal kits—use interchangeable soosan sb43 breaker parts, allowing local procurement and lower inventory costs.

2. Direct OEM/ODM Customization: As a factory direct hydraulic breaker manufacturer, Guchuan Machinery provides custom color matching, private-label branding, and custom pin/bracket mounting configurations.

3. High Profit Margins for Distributors: Working directly with a b2b excavator hydraulic breaker supplier ensures factory-direct wholesale pricing, robust warranty coverage, and reliable technical backup.
