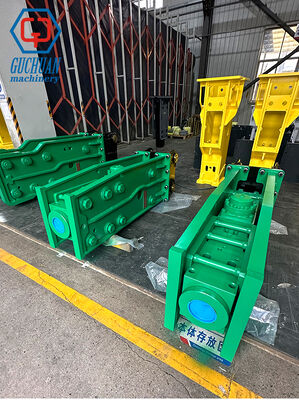

The GCB190, manufactured by Jiangsu Guchuan Machinery Co., Ltd. (SEWOOMIC), is a high-performance soosan sb60 open type hydraulic breaker engineered for heavy-duty quarrying, demolition, and infrastructure excavation. Designed as a functional equivalent to the Korean SOOSAN SB60 class, this open frame hydraulic rock breaker combines high impact velocity, open structural access, and superior thermal dissipation for 15-to-18-ton carrier classes.

1. Open Frame Structural Architecture & Thermal Efficiency Advantages

The structural chassis of an open-style hydraulic breaker provides distinct operational benefits over fully enclosed soundproof box housings, particularly in high-duty cycle or high-temperature field environments:

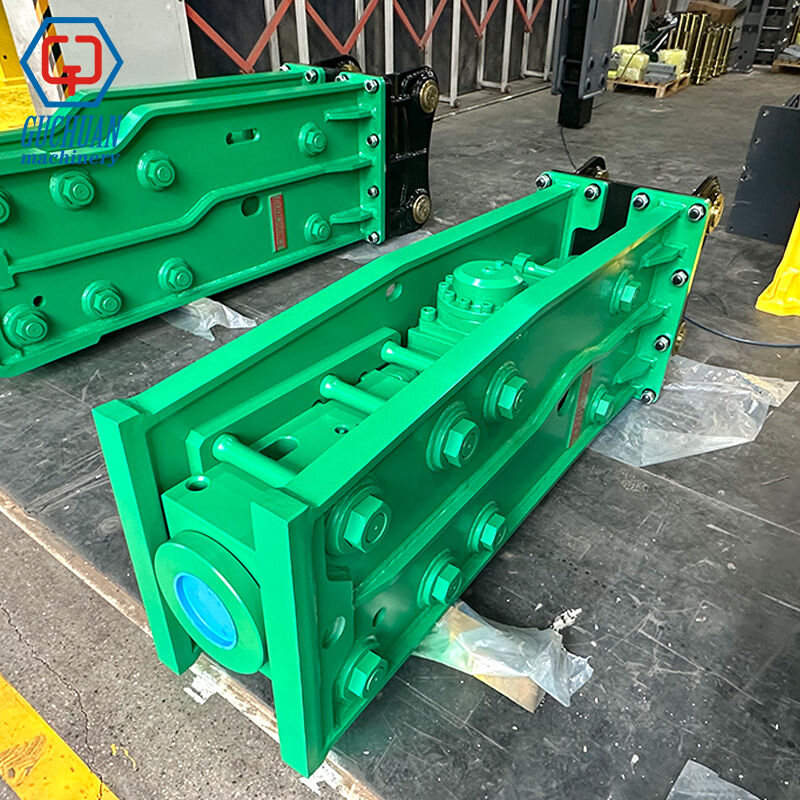

• Direct Field Maintenance Access: The open chassis utilizes high-strength tie rods and side bolts to secure the inner power cell without fully enclosing it. Technicians can inspect side-bolt tension, measure lower bushing wear, and replace seal kits directly on the job site without dismantling an exterior housing shell. Functioning as a direct maintenance open frame hydraulic breaker, it minimizes equipment downtime during field servicing.

• Superior Heat Dissipation Capability: Continuous heavy-duty rock hammering generates extreme friction and thermal build-up within the hydraulic cylinder. The open frame architecture permits continuous ambient air circulation around the power cell, operating as a high heat dissipation open frame breaker. This structural airflow stabilizes hydraulic fluid viscosity and extends seal kit operational life in arid or continuous quarry duties.

• Enhanced Line-of-Sight Visibility: The streamlined frame offers excavator operators an unobstructed line of sight to the chisel tip, improving precision during trenching, benching, and selective concrete demolition.

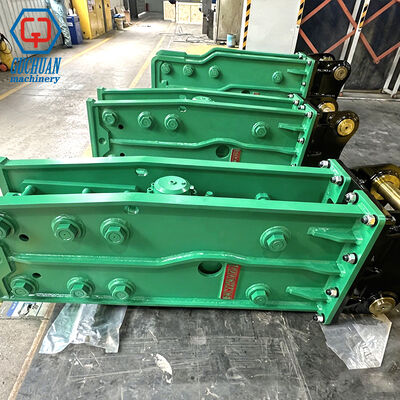

• Rugged Heavy-Duty Side Bolt Construction: Constructed as an open frame side bolt hydraulic breaker, the assembly absorbs lateral working stresses, keeping the power cell aligned under high shock loads.

2. Kinetic Mechanics & Nitrogen-Hydraulic Working Principle

The GCB190 operates as a high-efficiency nitrogen gas charged hydraulic hammer, utilizing a hybrid oil-gas energy transfer mechanism:

1. Hydraulic Piston Retraction: High-pressure hydraulic fluid supplied by the excavator’s main auxiliary pump enters the lower cylinder chamber, forcing the alloy piston upward. This upward stroke compresses pure nitrogen ($N_2$) gas housed in the back head chamber, converting fluid pressure into stored pneumatic potential energy.

2. Explosive Downward Impact: Upon reaching the top of its stroke, the internal control valve shifts, pressure releases, and the compressed nitrogen gas expands rapidly. This force propels the piston downward at terminal velocity, driving the 125mm chisel tool into the substrate.

Operating as a high energy nitrogen hydraulic hammer attachment, the GCB190 delivers up to 2,711 Joules of single-blow energy at an adjustable impact frequency of 350 to 650 blows per minute (BPM).

3. Advanced Metallurgy, Precision Machining & Anti-Leak Systems

Internal breaker components are subjected to intense mechanical shock, fluid pressure, and thermal stress. To guarantee structural integrity and fluid sealing, Jiangsu Guchuan Machinery Co., Ltd. implements precise manufacturing standards:

[42CrMo / 40CrNiMo Forged Alloy Steel Billet]
                      ↓
     [Precision CNC Machining & Deep Boring]
                      ↓
   [Atmospheric Vacuum Carburizing Heat Treatment]
                      ↓
  [Ultra-Low Cryogenic Liquid N2 Treatment (-196°C)]
                      ↓
      [EMG CNC Cylindrical Mirror Grinding]

• Alloy Steel Forgings: Pistons and main cylinders are forged from high-density 42CrMo and 40CrNiMo structural alloy steel, providing tensile resilience and fatigue resistance.

• Vacuum Carburizing & Deep Sub-Zero Cryogenics: Components undergo vacuum carburizing to create an ultra-hard outer wear surface (HRC 58–62) supported by a shock-absorbing ductile core (HRC 30–38). Following heat treatment, parts are subjected to deep cryogenic treatment at -196°C. These cryogenic treated hydraulic breaker wear parts eliminate internal stress, preventing thermal deformation and surface micro-cracking.

• EMG CNC Mirror Grinding: Utilizing imported CNC grinding machinery, every precision ground hydraulic breaker piston achieves a mirror-smooth finish (Ra 0.2–0.4 µm) with sub-micron dimensional tolerances. Paired with multi-stage polyurethane step seals, this anti leak hydraulic breaker cylinder piston configuration prevents oil bypass and maintains continuous operating pressure.

4. Technical Specifications & Global Excavator Carrier Compatibility

Official Engineering Parameters (GCB190 Open Type)

Carrier Compatibility Matrix

The GCB190 is dimensionalized to fit standard two-pin brackets or quick couplers across global 15-to-18-ton excavators:

• Cater-pillar: Functions efficiently as a hydraulic rock hammer for 15 ton excavator units like the CAT 315, CAT 317, or as a hydraulic concrete breaker for cat 320 operating in eco-mode.

• Komatsu: Matches PC160LC, PC170LC, PC180LC, and works as a heavy-duty hydraulic breaker for komatsu pc200 fleet setups.

• Hitachi: ZX160LC, ZX180LC, ZX200, ZX210LC.

• Sany & Vol-vo: SY155U, SY175C, SY215C / EC160E, EC180E, EC200E.

• Doosan / Develon & Hyundai: DX160LC, DX180LC, DX210-7 / HX160A, HX180A, R180LC, R210NLC.

5. Multi-Industry Field Applications

The combination of 2,711 Joules of impact energy and a 125mm chisel shank allows the GCB190 to adapt to diverse field environments:

• Infrastructure & Trenching: Operates as a reliable open type hydraulic rock hammer for trenching, cutting through hard asphalt, shale strata, and solid bedrock.

• Heavy Demolition: Serves as a heavy duty excavator rock demolition hammer, fracturing reinforced concrete walls, bridge decks, and foundation footings.

• Quarry Operations: Functions as a high impact secondary rock breaking hammer, reducing oversized granite and basalt boulders prior to primary crushing.

• Civil Foundations: Fractures hardpan, frozen ground, and dense clay during site preparation.

6. B2B Sourcing, OEM & Inventory Advantages

Partnering with Jiangsu Guchuan Machinery Co., Ltd. offers commercial benefits for heavy machinery dealers, rental fleets, and regional distributors:

• 100% Spare Parts Interchangeability: Chisels, pistons, seal kits, and wear bushings match SOOSAN SB60 components, allowing dealers to maintain interchangeable spare parts for soosan sb60 inventory with minimal holding costs.

• Direct Factory ROI: Sourcing from a china factory direct hydraulic breaker supplier eliminates middleman overhead, maximizing margin potential for distributor networks.

• Custom OEM/ODM Manufacturing: As a trusted b2b excavator attachment OEM supplier china, SEWOOMIC offers custom mounting bracket dimensions, private label branding, and customized paint options.

• Reliable Manufacturing Supply Chain: As a specialized 125mm chisel open type hydraulic breaker manufacturer and 125mm chisel hydraulic breaker supplier, every unit undergoes dynamic hydraulic performance testing prior to dispatch.
