In the competitive global equipment market, civil engineering contractors, quarry operators, and machinery fleets require high-impact hydraulic attachments that combine maximum breaking force with job-site reliability. Engineered to benchmark standards, the GCB190 stands as a high-performance side type hydraulic breaker for excavator applications. Developed as a 100% functional soosan sb60 hydraulic breaker equivalent, the GCB190 delivers Korean-tier hydraulic impact velocity, high-grade metallurgy, and exceptional structural stability at competitive OEM factory pricing.

Whether deployed in heavy rock trenching, structural concrete demolition, or secondary boulder breaking, this triangle type hydraulic rock hammer provides exceptional productivity for 15-to-18-ton carrier classes.

1. Structural Engineering & Triangle Side-Mount Housing Advantages

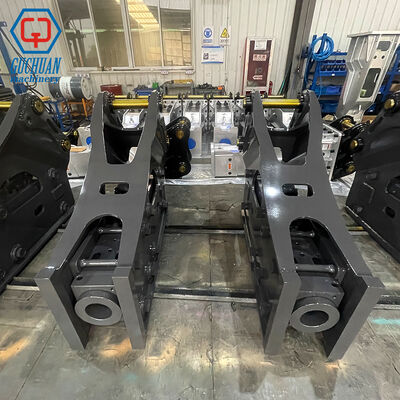

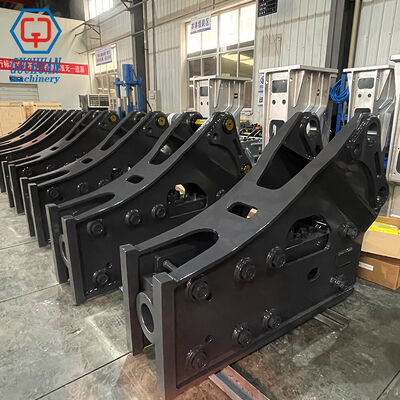

The housing configuration of a hydraulic hammer significantly influences carrier boom geometry, center-of-gravity distribution, and field serviceability. The GCB190 features an optimized open frame side bolt hydraulic breaker chassis, providing distinct structural advantages over top-mount or fully enclosed box housings:

• Optimized Center of Gravity: By locating the excavator attachment bracket mounting pins directly along the side frame rather than atop the back head, the distance between the breaker’s operational mass and the excavator’s dipper arm pin is reduced. This low center of gravity rock hammer structure reduces torsional stress on the carrier’s boom and dipper arm while maintaining carrier stability during angled or high-reach operations.

• Extended Reach in Confined Spaces: The shortened vertical profile improves maneuverability when cutting deep utility trenches, working inside tight urban job sites, or breaking overhead concrete structures.

• Direct Field Maintenance Access: The open-frame side bolt assembly allows operators and field technicians to inspect tie rod tension, examine internal bushings, and replace hydraulic seal kits directly on the job site without requiring full disassembly of an exterior shield.

2. Core Mechanical Principle: Nitrogen-Hydraulic Hybrid Synergy

The operational efficiency of the GCB190 relies on an optimized nitrogen gas-assisted kinetic energy transfer system:

1. Energy Accumulation Phase: High-pressure hydraulic fluid supplied by the excavator’s main auxiliary pump fills the lower cylinder chamber, driving the alloy piston upward. This upward movement compresses high-purity nitrogen ($N_2$) gas stored within the breaker’s back head accumulator, converting fluid flow into stored pneumatic potential energy.

2. Explosive Downward Stroke: Upon reaching the apex of the stroke, the internal spool valve shifts, releasing hydraulic pressure. The compressed nitrogen gas expands rapidly, propelling the piston downward at terminal velocity to strike the top shank of the 125mm tool chisel.

Operating as a nitrogen charged hydraulic breaker hammer, the GCB190 cushions recoil shocks while generating an impact energy of 2,711 Joules at an adjustable frequency of 350 to 650 blows per minute (BPM).

3. Advanced Metallurgy, Cryogenic Processing, and Anti-Leak Systems

Continuous high-frequency hammering subjects internal components to heavy mechanical shock and thermal expansion. To ensure long service life, the GCB190 undergoes advanced metallurgical treatments:

• Alloy Steel Forgings: The core cylinder and piston are forged from high-purity 42CrMo and 40CrNiMo structural alloy steel, providing exceptional tensile strength and fatigue resistance under continuous impact.

• Vacuum Carburizing & Cryogenic Stabilization: Critical wear parts undergo deep-case vacuum carburizing heat treatment, producing a wear-resistant surface shell (HRC 58–62) backed by a shock-absorbing ductile core (HRC 30–38). Sub-zero liquid nitrogen treatment at -196°C converts residual austenite into stable martensite. These cryogenic treated hydraulic breaker wear parts resist micro-cracking, galling, and thermal deformation under continuous duty cycles.

• EMG Precision Grinding: Utilizing CNC cylindrical surface grinding equipment, every precision ground hydraulic breaker piston achieves a mirror finish (Ra 0.2–0.4 µm) with sub-micron dimensional tolerances. Paired with premium polyurethane step seals, this anti leak hydraulic breaker cylinder piston system eliminates fluid bypass, maintains hydraulic efficiency, and prevents oil leaks.

4. Technical Specifications & Carrier Compatibility Matrix

Official Engineering Specifications

Global Carrier Compatibility Matrix

The GCB190 is optimized for global 15-to-18-ton excavators, functioning seamlessly as a rock breaker for 15 ton excavator or a hydraulic breaker for 18 ton excavator configuration:

• Cater-pillar: CAT 315, CAT 317, CAT 317 GC, and works as a fuel-efficient hydraulic breaker for cat 320 series.

• Komatsu: PC160LC, PC170LC, PC180LC, and serves as a heavy-duty hydraulic breaker for komatsu pc200 fleet setups.

• Hitachi: ZX160LC, ZX180LC, ZX200, ZX210LC.

• Sany & Vol-vo: SY155U, SY175C, SY215C / EC160E, ECR145E, EC180E, EC200E.

• Doosan / Develon & Hyundai: DX160LC, DX180LC, DX210-7 / HX160A, HX180A, R180LC, R210NLC.

5. Multi-Scenario Field Applications

The 125mm tool chisel and 2,711-Joule energy output enable the GCB190 to excel across demanding field environments:

• Utility Trenching & Infrastructure: Functions as an efficient excavator hydraulic breaker for trenching through asphalt layers, shale strata, and buried bedrock.

• Structural & Civil Demolition: Performs reliably as a hydraulic breaker for concrete demolition, fracturing reinforced concrete pillars, floor slabs, and foundation footings.

• Quarrying & Secondary Rock Breaking: Serves as a high impact hydraulic breaker for quarrying operations, reducing oversized granite and limestone boulders before crushing.

• Foundation Work: Functions as a heavy duty side mount rock breaker to break up hardpan, frozen ground, and dense clay during civil foundation site preparation.

6. Commercial & B2B Sourcing Advantages

For equipment dealers, machinery distributors, and rental fleet managers, partnering with our manufacturing facility provides clear commercial benefits:

• 100% Spare Parts Interchangeability: All critical internal parts—including pistons, chisels, front bushings, stop pins, and seal kits—are dimensionally identical to SOOSAN SB60 components. As an established 125mm chisel hydraulic breaker supplier, we help global dealers maintain minimal inventory overhead.

• Factory-Direct ROI: Sourcing from a factory direct hydraulic breaker manufacturer eliminates middleman markups, improving ROI for rental fleets and dealers.

• Full OEM/ODM Customization: As a b2b excavator attachment OEM supplier, we offer customized bracket pin dimensions, tailored color schemes, and private label branding.

• Quality Assurance: Every high energy rock hammer attachment undergoes strict dynamic hydraulic testing before shipment to ensure zero-defect field performance.
