Executive Overview: The Vital Role of Retention Pins in Heavy-Duty Demolition

In modern mining, quarrying, heavy trenching, and civil infrastructure demolition, nitrogen-assisted hydraulic hammers operate under some of the most punishing mechanical environments on earth. Achieving maximum kinetic impact energy while preventing catastrophic structural failure requires absolute precision across every single internal wear component. Among these critical wear components, the flat pin (chisel fixing pin) and round pin (stop pin or rod pin) serve as the primary structural anchors within the breaker’s front head assembly.

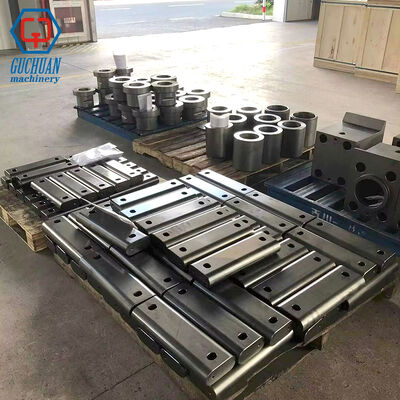

Our factory specializes in high-durability heavy duty hydraulic breaker wear parts manufactured to exact original equipment specifications. Within our product catalog, our flagship breaker series utilizes the HB product model designation—specifically the HB15G, HB20G, HB30G, and HB40G models. These units and their internal wear components are engineered for total dimensional and metallurgical cross-compatibility with Japan’s industry-standard FURUKAWA GCB series, including the GCB180, GCB200, GCB300, and GCB330 hydraulic hammers.

Whether managing a regional rental fleet of 20-ton excavators or directing high-tonnage quarry extraction operations, utilizing a premium hydraulic rock hammer tool retainer pin is essential. High-grade retention pins eliminate internal mechanical play, absorb destructive rebound kinetic energy, maintain precise piston-to-chisel alignment, and drastically reduce hourly operating costs across demanding job sites.

1. Mechanical Principles & Tool Guidance in Nitrogen Hammers

To understand why precision engineering is non-negotiable for retention pins, one must examine the internal fluid and pneumatic dynamics of a nitrogen gas-assisted hydraulic hammer.

       +-------------------------------------------------------+
       |               NITROGEN BACK HEAD CELL                 |
       |             [Compressed N2 Gas Cushion]               |
       +-------------------------------------------------------+
                                   |
                                   v
       +-------------------------------------------------------+
       |                HYDRAULIC CYLINDER                     |
       |          Reciprocating High-Alloy Piston              |
       +-------------------------------------------------------+
                                   |
                                   v (Kinetic Impact Force)
       +-------------------------------------------------------+
       |                FRONT HEAD ASSEMBLY                    |
       |  +-------------------------------------------------+  |
       |  |       Chisel Shank / Working Tool Tooling       |  |
       |  +-------------------------------------------------+  |
       |         ^                               ^             |
       |         |                               |             |
       |   [ FLAT PIN ]                    [ ROUND PIN ]       |
       | (Transverse Lock)               (Rotational Stop)     |
       +-------------------------------------------------------+

The Kinetic Impact Cycle

During operation, hydraulic oil supplied by the host carrier forces the breaker piston upward, compressing high-purity nitrogen gas ($N_2$) contained within the back head reservoir. When the main spool valve shifts, the trapped nitrogen expands violently, accelerating the piston downward to strike the top shank of the working tool at frequencies ranging from 300 to 1,200 impacts per minute (BPM).

The Four Primary Functions of Retention Pins

Positioned transversely through the heavy-walled front head housing, the nitrogen hammer front head retainer pins interface directly with the machined retention slots of the tool chisel. They perform four vital mechanical functions:

1. Axial Stroke Guidance: They establish the precise vertical travel boundaries of the chisel, allowing free reciprocating stroke movement while preventing the tool from slipping out of the front head assembly.

2. Rebound & Blank-Firing Absorption: When an operator accidentally fires the hammer without full down-pressure against bedrock (blank firing), immense excess kinetic energy is generated. The retention pins act as the final mechanical stop, absorbing severe tensile impact loads to protect the inner cylinder walls and seal kits.

3. Anti-Rotation Alignment: They prevent the working tool from twisting within the lower bushing, ensuring that the flat face of the piston impacts the chisel crown squarely. This prevents off-center stroke vectoring and localized fatigue fracturing.

4. Distribution of Transverse Shearing Stress: When prying or maneuvering large boulders, immense lateral bending forces are transferred directly from the tool shank to the retention pins. High-grade pins prevent structural yielding and binding within the front housing.

Installing an inferior or worn aftermarket hydraulic breaker tool locking pin introduces axial misalignment. This leads to accelerated scoring on the durable rock breaker front bushing pin interface, premature oil seal degradation, and costly cylinder scoring.

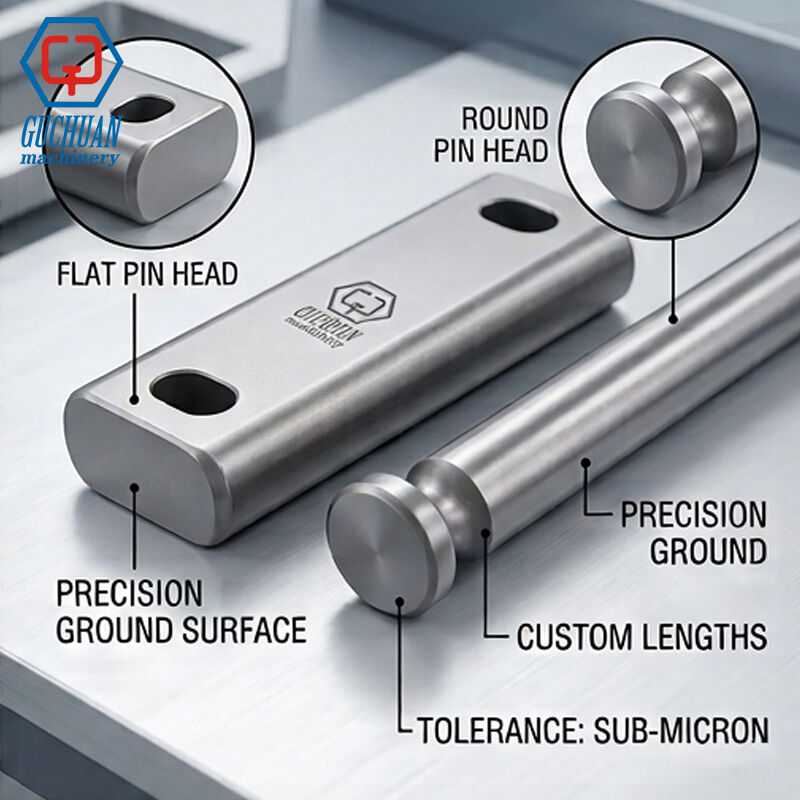

2. Technical Comparison: Flat Pins vs. Round Pins

Hydraulic breaker designs utilize flat pins, round pins, or dual-locking pin combinations depending on the operating tonnage class, stroke frequency, and lateral force requirements.

  FLAT PIN GEOMETRY                     ROUND PIN GEOMETRY
+-------------------+                 +-------------------+
|  Flat Load Face   |                 |                   |
|  [==============] |                 |   ( Circular )    |
|  Recessed Slot    |                 |   ( Section  )    |
+-------------------+                 +-------------------+
  - Maximum Surface Area                - Rotational Wear Balance
  - High Lateral Resistance             - Quick Field Replacement
  - Heavy Prying Support                - Standard Tonnage Fit

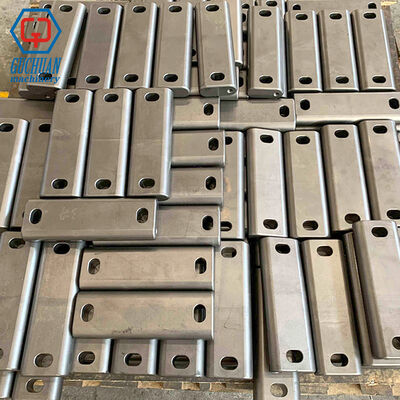

1. Flat Pins (Chisel Fixing Irons / Flat Retainer Pins)

Flat pins feature a wide, precision-machined rectangular bearing surface designed to sit perfectly flush against the chisel's retention recess.

• Mechanical Mechanism: By expanding the surface contact area by up to 250% compared to traditional round profiles, flat pins dramatically diminish surface pressure ($\text{N/mm}^2$) generated during severe impact.

• Primary Advantage: Exceptional resistance against severe lateral torque and heavy bending moments. This makes components like the furukawa hb20g hydraulic breaker flat pin and gcb200 breaker front head fixing pin essential for high-stress trenching and boulder splitting.

2. Round Pins (Stop Pins / Rod Pins)

Round pins feature a solid cylindrical alloy profile designed for balanced circumferential load distribution, lower rotational friction, and rapid field serviceability.

• Mechanical Mechanism: The cylindrical geometry allows maintenance technicians to periodically rotate the pin 90 or 180 degrees during routine inspection, exposing a fresh, un-galled surface to the chisel shank and effectively doubling component service life.

• Primary Advantage: Superior energy dissipation under rapid vertical shock cycles, widely deployed in models like the hb15g hydraulic breaker chisel fixing pin and gcb180 hydraulic rock hammer retainer pin.

Engineering Specification Matrix

3. Metallurgy & Manufacturing Excellence

To withstand millions of continuous high-frequency blows without micro-fracturing or mushrooming, our retention pins undergo a rigorous, highly controlled manufacturing cycle.

[ Raw Alloy Steel Billet: 42CrMo / 40CrNiMoA ]
                      │
                      ▼
[ High-Density 3D Closed-Die Hot Forging ]
                      │
                      ▼
[ Multi-Axis Precision CNC Turning & Milling ]
                      │
                      ▼
[ Deep-Case Atmosphere Vacuum Carburizing ]
                      │
                      ▼
[ Sub-Zero Cryogenic Treatment (-196°C) ]
                      │
                      ▼
[ Stress-Relieving Multi-Stage Tempering ]
                      │
                      ▼
[ EMG Precision CNC Cylindrical Surface Grinding ]

Premium Forged Alloy Steel Selection

We source high-purity alloy steel billets, including 42CrMo, 40CrNiMoA, and 20CrMo. The high nickel and chromium content provides deep hardenability, superior tensile strength (exceeding 1,100 MPa), and outstanding resistance to mechanical fatigue. High-density 3D forging refines internal grain flow, eliminating microscopic voids and gas pockets.

Vacuum Carburizing & Cryogenic Stabilization

Standard atmospheric heat treatment frequently leaves residual internal stress and retained austenite, causing pins to deform under continuous heat and heavy shock.

1. Vacuum Carburizing: Our pins undergo deep-case vacuum carburizing, producing a glass-hard outer wear surface (58–62 HRC) reaching a depth of 3.0 mm to 5.0 mm depending on pin size.

2. Sub-Zero Cryogenic Processing: Components are subjected to liquid nitrogen cooling down to -196°C. As a vacuum heat treated hydraulic hammer pins technology, this converts unstable retained austenite into ultra-stable tempered martensite, eliminating internal dimensional growth during operation.

3. Tempering Cycle: A multi-stage stress-relief tempering process restores core elasticity (28–35 HRC). This dual-structure engineering yields a pin with an extremely hard outer skin that resists galling and a ductile, shock-absorbing core that absorbs massive energy spikes without snapping.

Sub-Micron Precision CNC Finishing

Finished as precision forged hydraulic rock breaker parts, every pin undergoes final EMG CNC cylindrical grinding. Microscopic dimensional tolerances ($\pm 0.01\text{ mm}$) guarantee an exact mechanical fit into original HB series and FURUKAWA GCB front heads, eliminating loose play that accelerates wear on surrounding bushings.

4. Product Model Lineup & Excavator Compatibility

Our factory's proprietary HB series product models—HB15G, HB20G, HB30G, and HB40G—are specifically designed as direct-fit equivalents for Japanese FURUKAWA GCB series units (GCB180, GCB200, GCB300, and GCB330).

+-----------------------------------------------------------------------------------+
|               HB SERIES PRODUCT LINEUP & FURUKAWA COMPATIBILITY                   |
+-------------------+--------------------+--------------------+---------------------+
| OUR HB MODEL NAME | EQUIVALENT MODEL   | CHISEL DIAMETER    | CARRIER TONNAGE     |
+-------------------+--------------------+--------------------+---------------------+
| HB15G             | FURUKAWA GCB180    | 120 mm – 135 mm    | 12 – 16 Tons      |
| HB20G             | FURUKAWA GCB200    | 135 mm – 145 mm    | 18 – 22 Tons      |
| HB30G             | FURUKAWA GCB300    | 150 mm – 165 mm    | 28 – 35 Tons      |
| HB40G             | FURUKAWA GCB330    | 165 mm – 180 mm    | 38 – 50 Tons      |
+-------------------+--------------------+--------------------+---------------------+

Model Specifications & Engineering Roles

1. HB15G / FURUKAWA GCB180 Series

• Application: Utility trenching, asphalt cutting, urban concrete demolition, and light quarry work.

• Component Specs: Engineered as a precision gcb180 hydraulic rock hammer retainer pin setup. Utilizes high-tensile round stop pins combined with flat retainer blocks to deliver fast stroke rates on 12-to-16-ton excavators.

• Featured Part: hb15g hydraulic breaker chisel fixing pin.

2. HB20G / FURUKAWA GCB200 Series

• Application: The world standard for 20-ton class excavators. Handles foundation excavation, hard rock splitting, and heavy civil construction.

• Component Specs: Demands an exceptionally tough chisel retainer pin for 20 ton excavator breaker units. Features deep-carburized flat pins engineered to absorb massive lateral torque when operators pry hard rock.

• Featured Parts: furukawa hb20g hydraulic breaker flat pin and gcb200 breaker front head fixing pin.

3. HB30G / FURUKAWA GCB300 Series

• Application: Open-pit quarrying, secondary boulder reduction, bench fracturing, and heavy reinforced concrete demolition.

• Component Specs: High-tonnage impact requires a heavy-duty hb30g nitrogen hammer chisel stop pin and gcb300 nitrogen breaker chisel locking pin. Engineered with widened bearing faces to distribute thousands of Joules of blow energy.

4. HB40G / FURUKAWA GCB330 Series

• Application: Heavy mining, primary quarry extraction, underwater rock fracturing, and high-tonnage earthworks.

• Component Specs: Fitted with ultra-heavy-duty gcb330 heavy excavator rock breaker pins and supported by a dedicated hb40g excavator breaker rod pin supplier network. Features deep case depths to endure continuous 40+ ton excavator hydraulic output.

Global Carrier Brand Compatibility Matrix

Our replacement pins fit seamlessly across major global excavator carriers fitted with HB series or FURUKAWA GCB hydraulic hammer attachments:

+-------------------+-------------------------------------------------------------------+
| CARRIER BRAND     | MATCHING EXCAVATOR MODELS FOR HB / FURUKAWA GCB ATTACHMENTS       |
+-------------------+-------------------------------------------------------------------+
| Cater-pillar (CAT) | CAT 315, CAT 320, CAT 323, CAT 330, CAT 336, CAT 349, CAT 352     |
| Komatsu           | PC130, PC200, PC210, PC220, PC300, PC350, PC400, PC450            |
| Hitachi           | ZX135, ZX200, ZX210, ZX270, ZX330, ZX350, ZX470                   |
| Vol-vo             | EC140, EC210, EC220, EC300, EC350, EC480                          |
| Sany              | SY135, SY215, SY225, SY305, SY365, SY485                          |
| Doosan / Develon  | DX140, DX225, DX300, DX340, DX480                                 |
| Kobelco           | SK135, SK200, SK210, SK330, SK350, SK500                          |
| Hyundai           | HX145, HX220, HX300, HX340, HX480                                 |
+-------------------+-------------------------------------------------------------------+

5. Key Operational Advantages for Plant Managers & Fleet Operators

Upgrading to our factory-direct, precision-engineered excavator mounted breaker chisel fixing pin solutions delivers measurable commercial and operational benefits for equipment fleet owners and plant managers:

                      OPERATIONAL ADVANTAGES

  [ Extended Wear Life ] ────► Deep carburizing increases service
                               life by up to 45%.

  [ Front Head Protection ] ──► Sub-micron tolerances prevent
                               bushing scoring & seal failure.

  [ Zero Blank-Firing Rupture ]► Flexible core absorbs violent recoil
                               without brittle fracturing.

  [ Lower Cost-Per-Hour ] ────► Factory-direct sourcing maximizes
                               operating profit margins.

1. Extended Working Life: Deep carburizing and sub-zero cryogenic treatment increase pin surface wear resistance by up to 45% compared to standard aftermarket components, drastically reducing replacement frequency in abrasive granite and basalt.

2. Protection for Expensive Front Housings: Precise micro-tolerances minimize lateral chisel wobble. This preserves the structural integrity of the front head, protects internal stroke alignment, and extends the service life of internal seal kits.

3. Resilience Against Blank-Firing Shock: The ductile alloy core provides exceptional impact toughness ($> 80\text{ J/cm}^2$), preventing sudden pin shearing or brittle catastrophic fracture during inadvertent blank firing.

4. Field Maintenance Efficiency: Machined lead-in chamfers allow rapid removal and installation during field service, minimizing machine downtime and keeping excavators active on tight project schedules.

5. Optimized Inventory Cost: Universal dimensional compatibility across our HB product model designation and original FURUKAWA GCB units enables B2B distributors and equipment dealers to streamline inventory management while serving mixed carrier fleets.

6. Recommended Maintenance & Installation Best Practices

To maximize the operational lifespan of any high frequency impact resistant breaker pin and prevent premature damage to the breaker front head assembly, field technicians should enforce strict maintenance protocols:

+-----------------------------------------------------------------------------------+
|                         DAILY MAINTENANCE CHECKLIST                               |
+-------------------+---------------------------------------------------------------+
| INSPECTION ITEM   | RECOMMENDED ACTION PROTOCOL                                   |
+-------------------+---------------------------------------------------------------+
| Lubrication       | Apply high-temp moly grease every 2 hours of active hammering.|
| Wear Measurement  | Measure flat spots; replace pin when wear exceeds 3 mm.       |
| Rotation (Round)  | Rotate round pins 90° during weekly service intervals.        |
| Chisel Clearance  | Check gap between chisel shank & pin; replace worn bushings.  |
| Operating Technique| Avoid blank firing and excessive lateral prying with tool.    |
+-------------------+---------------------------------------------------------------+

1. High-Pressure Moly Lubrication

Every 2 operating hours, inject high-temperature, extreme-pressure lithium grease containing at least 3% to 5% molybdenum disulfide ($\text{MoS}_2$) into the front head grease nipples. Proper lubrication creates a heavy protective film over the pin bearing face, reducing metal-to-metal friction, preventing galling, and repelling abrasive rock dust.

2. Monitoring Wear Limits

Inspect flat pins and round pins weekly during regular maintenance checks:

• Flat Pins: Inspect the main flat contact face for deep grooving, galling, or mushrooming. If surface wear exceeds 3 mm to 4 mm, replace the pin immediately. Continuing to operate with severely worn pins permits excessive chisel movement, leading to uneven piston impacts.

• Round Pins: Rotate round pins 90 degrees at weekly intervals to distribute surface wear evenly around the circumference. Once all sides exhibit wear beyond specifications, replace the pin pair.

3. Preventing Blank Firing & Prying Damage

Train excavator operators to maintain firm down-pressure on the working tool before engaging the auxiliary hydraulics. Operators must never use the breaker tool as a crowbar to pry rock; lateral prying generates extreme mechanical leverage that bends retention pins, scores front bushings, and cracks front head housings.

7. B2B Sourcing: Why Partner with Our Manufacturing Facility

As a specialized wear resistant chisel stop pin supplier and direct furukawa hydraulic hammer spare parts manufacturer, we provide global B2B clients, regional dealers, and mining companies with end-to-end manufacturing excellence:

+-----------------------------------------------------------------------+
|                    FACTORY OEM / ODM CAPABILITIES                     |
|                                                                       |
|  1. DIRECT FACTORY COST ADVANTAGE                                     |
|     - Eliminate intermediary distributor markups                      |
|     - Direct factory pricing for high ROI                             |
|                                                                       |
|  2. 100% OEM INTERCHANGEABILITY                                       |
|     - Guaranteed fitment for HB15G, HB20G, HB30G, HB40G               |
|     - Precise match for FURUKAWA GCB180, GCB200, GCB300, GCB330       |
|                                                                       |
|  3. STRICT QUALITY ASSURANCE                                          |
|     - ISO9001 certified heat treatment & grinding processes           |
|     - Spectrometric material traceability on every batch              |
+-----------------------------------------------------------------------+

• Complete OEM/ODM Services: We offer customized branding, specialized anti-corrosion surface coatings (black oxide, zinc plating, phosphating), custom packaging, and private-label laser etching for global distributors.

• Strict ISO9001 Quality Control: Every production batch undergoes 100% dimensional inspection, ultrasonic flaw testing to detect internal micro-cracks, and Rockwell hardness verification prior to packaging.

• Global Logistics & Ready Inventory: We maintain extensive stock of fast-moving retention pins for our HB series (HB15G, HB20G, HB30G, HB40G) and compatible FURUKAWA GCB series (GCB180, GCB200, GCB300, GCB330), ensuring rapid international dispatch to minimize site downtime.
