Introduction: Essential Wear Components in Heavy-Duty Hydraulic Hammers

In modern quarrying, trenching, infrastructure demolition, and mining operations, the performance of a hydraulic breaker relies heavily on the structural integrity of its internal retention components. Among these critical wear parts, the flat pin (chisel fixing pin) and round pin (stop pin or rod pin) play an indispensable role in securing the working tool inside the front head assembly.

Specially engineered for GCB series nitrogen breaker maintenance parts and engineered for full cross-brand compatibility with South Korea’s industry-standard soosan sb series chisel retainer pin systems, these precision components ensure continuous impact delivery without tool displacement, premature fatigue, or catastrophic front-head failure.

Whether managing a fleet of compact hammers or high-tonnage mining breakers, utilizing high-grade replacement pins is essential for reducing operating costs, protecting the front cylinder, and maximizing impact energy transmission on demanding job sites.

Mechanical Principles and Role in Nitrogen Breakers

In a nitrogen gas-assisted hydraulic hammer, the internal piston strikes the chisel at frequencies ranging between 300 to 1,200 impacts per minute. During this rapid reciprocating action, the working tool must move vertically within strict limits while remaining securely locked inside the lower housing.

This critical retention balance is maintained by the hydraulic rock hammer tool retainer pin. Positioned transversely within the front head, flat pins and round pins interface directly with the machined retention slots of the breaker chisel:

• Axial Guidance & Stroke Control: They allow the chisel to move freely up and down during impact while preventing it from slipping out of the front head.

• Impact & Rebound Absorption: During blank firing or rebound cycles, the pins absorb excess kinetic energy, protecting internal seals and pistons.

• Rotational & Alignment Lock: They prevent the tool from rotating, ensuring the piston hits the chisel squarely to prevent uneven force distribution.

Installing a precise nitrogen hydraulic hammer stop pin eliminates internal mechanical play, preventing premature bush scoring, off-center piston strokes, and localized stress fractures.

Flat Pins vs. Round Pins: Technical Specifications & Mechanics

Nitrogen hydraulic hammers utilize flat pins, round pins, or dual-pin locking configurations depending on the energy output class and mechanical load requirements.

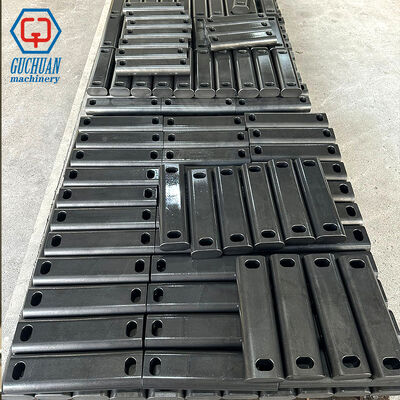

1. Flat Pins (Chisel Fixing Irons)

Flat pins feature a wide, rectangular bearing face that aligns flush against the chisel’s locking recess. This geometry significantly increases the surface contact area, spreading lateral shearing forces evenly across the front housing.

• Applications: Ideal for medium-to-heavy breaking equipment, such as soosan sb81 hydraulic breaker spare parts and high-impact GCB series breakers.

• Key Advantage: Superior resistance against severe bending moments and high lateral torque during heavy rock prying.

2. Round Pins (Rod Pins / Stop Pins)

Round pins feature a cylindrical alloy profile designed for quick alignment, rotational flexibility, and rapid replacement. An excavator mounted breaker chisel fixing pin in round profile allows for easy wear distribution by rotating the pin during routine service intervals.

• Applications: Common in compact and medium breakers, including the soosan sb30 nitrogen breaker chisel pin and soosan sb50 hydraulic hammer flat pin combined setups.

• Key Advantage: Balanced circumferential load distribution, lower manufacturing friction, and straightforward field maintenance.

Technical Specification Comparison

Advanced Metallurgy and Manufacturing Excellence

To withstand continuous stress in abrasive environments, high strength alloy steel breaker pins must strike an exact balance between extreme surface hardness and core toughness.

• 3D Forging & Microstructure: Sourced from high-purity alloy steel, raw billets undergo precision hot forging to refine grain flow, eliminate internal voids, and maximize mechanical shear strength.

• Vacuum Heat Treatment: Every batch of vacuum heat treated hydraulic hammer pins undergoes controlled carburizing, oil quenching, and tempering. This creates a wear-resistant outer layer while maintaining a ductile core to absorb sudden shock loads without snapping.

• Precision CNC Machining: Manufactured as precision forged hydraulic rock breaker parts, every pin is finished to sub-millimeter tolerances, guaranteeing tight mechanical fitment into both original GCB series and SOOSAN SB front heads.

Engineering Note: Incorrect heat treatment leads to two distinct failure modes: pins with insufficient hardness deform under impact and jam the chisel; pins with excessive hardness become brittle and fracture under high-frequency impact, resulting in catastrophic front head damage.

Universal Compatibility: GCB Series & SOOSAN SB Series

Our flat pins and round pins are engineered for seamless interchangeability with original equipment standards. As an established gcb series breaker rod pin manufacturer, we supply parts that serve dual-compatibility for both GCB units and South Korea's world-renowned SOOSAN SB series:

• SOOSAN SB Breaker Compatibility: Fits SB10, SB20, SB30, SB40, SB43, SB45, SB50, soosan sb70 rock hammer round pin, SB81, soosan sb121 breaker chisel locking pin, and SB151 models.

• GCB Series Compatibility: Fully covers light, medium, and heavy-duty GCB nitrogen hammer specifications.

As a dedicated wear resistant chisel stop pin supplier, we deliver factory-direct dimensions matching OEM tolerances, allowing fleet managers and distributors to streamline their heavy duty rock breaking equipment spares inventory.

Key Operational Advantages for Plant Operators

Upgrading to a high-grade high frequency impact resistant breaker pin offers tangible operational benefits:

1. Extended Working Hours: Deep case hardening resists scoring, pitting, and surface galling, extending pin life by up to 40% compared to standard aftermarket parts.

2. Protection for Internal Bushings: Precise tolerance matching reduces lateral chisel wobble, preserving the durable rock breaker front bushing pin alignment and protecting internal seal kits.

3. Reduced Unplanned Downtime: Quick-release geometry enables rapid field replacements, keeping excavators operational on tight project timelines.

4. Optimal Cost Efficiency: Longer wear life reduces the cost per hour during high-intensity rock breaking and demolition projects.

Maintenance Best Practices for Extended Pin Life

To maximize the service lifespan of an aftermarket hydraulic breaker tool locking pin and nitrogen hammer front head retainer pins:

1. Daily Lubrication: Apply high-temperature, extreme-pressure moly grease to the chisel shank and retainer pin cavities every 2 hours of active operation.

2. Inspect Wear Limits: Regularly check pins for excessive flat spots, mushrooming, or axial distortion. Replace pins when wear exceeds manufacturer limits.

3. Avoid Blank Firing: Ensure the breaker tool is firmly pressed against rock or concrete before firing to prevent high-velocity rebound impacts against the stop pins
