Introduction: The Shift Toward Monobloc Solid-Body Technology

In the modern construction and civil engineering sector, global search trends for compact excavation attachments have experienced a significant surge. Fleet operators, rental agencies, and civil contractors no longer look solely at initial purchasing costs; they prioritize total cost of ownership (TCO), reliability under harsh site conditions, and minimal routine maintenance. Among compact demolition attachments, monobloc solid-body hydraulic breakers have emerged as the industry gold standard.

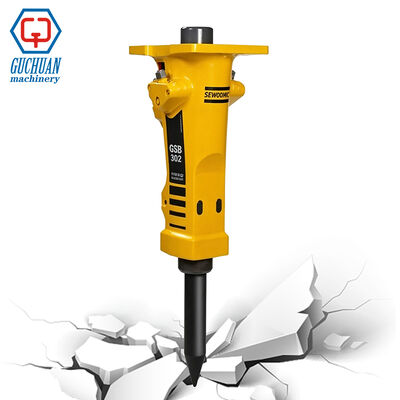

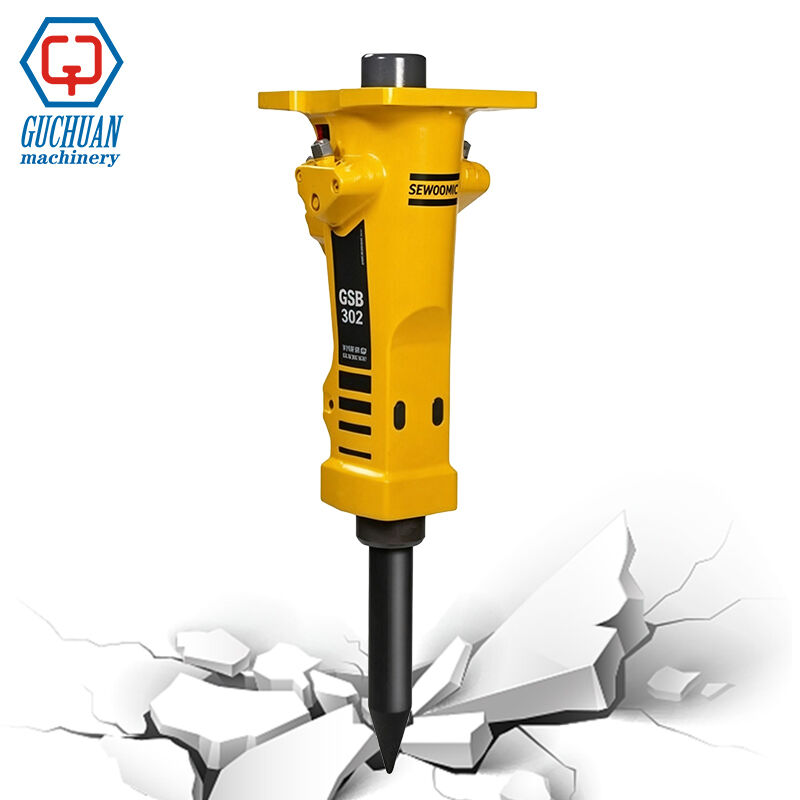

To fulfill this growing worldwide B2B demand, Jiangsu Guchuan Machinery Co., Ltd. (established in 2010 in Changzhou, China) manufactures the SEWOOMIC SB302. Engineered as an epiroc sb302 equivalent hydraulic breaker hammer , the SB302 combines a high blow frequency, optimized hydraulic efficiency, and superior structural rigidity. Designed specifically for 4.5-to-9-ton compact machinery , this attachment delivers heavy-duty breaking capability for trenching, urban infrastructure work, rock excavation, and indoor demolition.

Structural Integrity: The Monobloc Solid-Body Advantage

The hallmark of the SEWOOMIC SB302 lies in its monobloc solid-body housing concept. Unlike conventional split-body breakers held together by external side bolts or tie rods, the SB302 breaker body is precision-machined from a single solid block of high-tensile alloy steel.

+-----------------------------------------------------------------+
|                   MONOBLOC SOLID-BODY STRUCTURE                   |
|                                                                   |
|  [ Integrated Cast Accumulator ] ---> No External Gas Chamber     |
|  [ Boltless Steel Body ]        ---> Zero Side / Through Bolts    |
|  [ Floating Bushing System ]    ---> Quick Field Replacement      |
|  [ Dual Retainer Pin Housing ]  ---> Idle Strike Energy Absorption|
+-----------------------------------------------------------------+

Key engineering benefits of this solid-body architecture include:

• Boltless Monobloc Construction: Eliminates vulnerable side bolts, through-bolts, and body parting lines, preventing tie-rod failures caused by excessive torsional stress.

• Integrated Cast Accumulator: The high-pressure nitrogen accumulator is cast directly into the breaker housing. This eliminates external membrane chambers, reduces potential gas leaks, and creates an exceptionally slim profile for precise positioning in narrow trenches.

• Unmatched Bending Resistance: Superior resistance to operator levering abuse and extreme bending forces encountered during hard rock extraction.

• Integrated Overload Protection: Built with an internal pressure relief valve to shield the hydraulic motor and internal cylinder from pressure spikes caused by carrier hydraulic overload.

By utilizing this solid body design mini excavator rock breaker , operators benefit from a weight reduction of up to 20% compared to traditional bracket-type hammers, boosting carrier stability and breakout dynamics.

Technical Performance & Energy Recovery

The SB302 integrates advanced hydraulic principles that maximize power transfer while minimizing fuel consumption on the host machine.

1. Advanced Energy Recovery System

Traditional hydraulic hammers dissipate substantial kinetic recoil energy into heat. The SEWOOMIC SB302 features an advanced energy recovery system hydraulic rock breaker mechanism. The recoil force generated by the piston strike is automatically captured and redirected into the subsequent impact stroke. This hydraulic loop innovation boosts overall breaker efficiency from 53% to 68% , delivering higher impact force per blow without requiring higher hydraulic oil flow.

2. High-Frequency Impact Rate

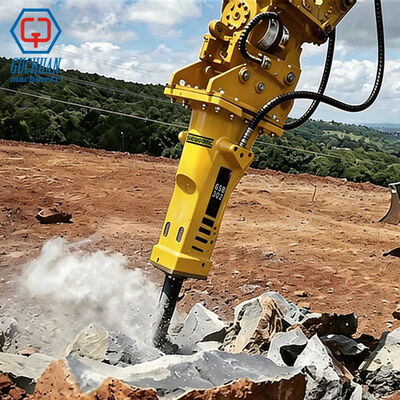

Equipped with an optimized valve stroke, the SB302 achieves strike frequencies ranging from 850 up to 1,380 blows per minute (BPM). Operating as a high frequency mini excavator hydraulic hammer , it rapidly fractures reinforced concrete, asphalt layers, and medium-hard rock beds, yielding exceptional daily productivity.

3. Floating Bushing & Dual Retainer Pin System

To lower operating wear, the SB302 incorporates an innovative floating bushing monobloc hydraulic breaker tool sleeve. The floating design allows uniform grease distribution, reducing friction and extending the working life of both the tool bushing and the chisel. Furthermore, the dual retainer pin configuration acts as an idle strike protection hydraulic breaker hammer system. In blank-firing situations (striking without load resistance), the dual pins absorb excessive shock loads, preventing damage to the front head and retainer housing.

Technical Specifications: SEWOOMIC SB302

Environmental Adaptation & Specialized Applications

The SEWOOMIC SB302 comes fully equipped for harsh, multi-environmental job sites:

• Air Inlet Port: Built-in air supply channel enables pressurized air connection for specialized tunneling and underwater demolition projects.

• Dust Suppression System: Features integrated dust wiper seals. Optional water inlet ports and water nozzles can be fitted to spray mist directly onto the chisel impact zone, satisfying strict urban dust-control regulations.

• Compact Noise Dampening: Rubber damping elements and enclosed acoustic housing achieve a low sound pressure level of 91 dB(A) at 10 meters , making it a preferred choice for residential and nighttime utility work.

+-----------------------------------------------------------------+
|                   VERSATILE JOB SITE APPLICATIONS               |
|                                                                 |
|  [ Urban Utilities ]    ---> Asphalt Cutting & Cable Trenching  |
|  [ Foundation Work ]    ---> Piling, Slab & Footing Demolition  |
|  [ Tunneling & Mining ] ---> Underwater Breaking & Tunnel Work  |
|  [ Landscaping ]        ---> Boulder Fracturing & Frozen Soil   |
+-----------------------------------------------------------------+

Carrier Compatibility & Matching Models

The SB302 functions as a monobloc hydraulic breaker for 5 to 9 ton excavators , offering seamless pin-on and quick-coupler compatibility with all leading global excavator brands:

• Cater-pillar: CAT 305, CAT 306, CAT 307.5, CAT 308 CR

• Komatsu: PC55MR, PC70, PC78US, PC88MR

• Kubota: KX057-4, KX080-4, U55

• Sany: SY55C, SY60, SY75C, SY95C

• Takeuchi: TB260, TB280FR, TB290

• Bob-cat / Yanmar / Vol-vo / JCB / Doosan / Hyundai: 5-to-9-ton mini excavators and compact tracked loaders.

Why Partner with SEWOOMIC (Guchuan Machinery)

As a trusted b2b hydraulic breaker supplier china factory , Jiangsu Guchuan Machinery Co., Ltd. provides global dealers and equipment distributors with uncompromised manufacturing standards:

1. 100% Dimensional Interchangeability: All wear parts—including pistons, seal kits, floating bushings, dual retainer pins, and chisels—are fully compatible with standard aftermarket Epiroc / Atlas Copco SB302 units.

2. Cost-Effective OEM/ODM Direct Supply: Factory-direct wholesale pricing provides exceptional ROI without compromising metallurgical quality or machining tolerances.

3. Rigorous Quality Control: Manufactured in ISO9001 certified facilities using CNC machining centers and deep-case thermal heat treatment processes.

Conclusion: Upgrade Your Compact Excavator Fleet

When searching for a 4.5 to 9 ton excavator hydraulic breaker that delivers high blow frequency, minimal maintenance downtime, and superior solid-body durability , the SEWOOMIC SB302 stands out as an unbeatable solution. Contact SEWOOMIC today to request technical drawings, custom lugging options, and competitive factory-direct quotations.
