1. Introduction: Market Trends & Rising Global Demand for Compact Attachments

In the evolving global construction and urban infrastructure sectors, contractors, rental fleet managers, and civil engineering firms are facing heightened performance standards alongside strict job site constraints. The rapid expansion of urban utility networks, indoor building refurbishment, and tight-space trenching has driven a surge in search interest for a high-efficiency monobloc hydraulic breaker for mini excavator applications. Modern operators no longer tolerate excessive equipment downtime, fluid leakage, or bulky attachments that strain compact carriers. Instead, global procurement queries are focused on lightweight, highly reliable attachments capable of delivering exceptional blow energy without compromising maneuverability.

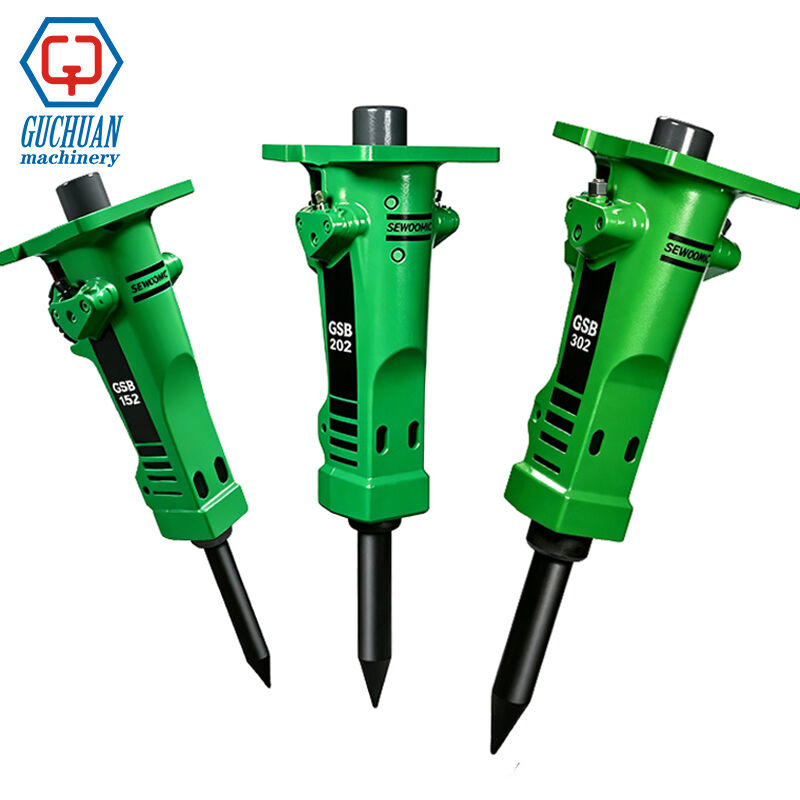

To address these market demands, Jiangsu Guchuan Machinery Co., Ltd. (established in 2010 in Changzhou, China) presents the SEWOOMIC SB202 Hydraulic Breaker. Engineered to benchmark the industry-standard Epiroc / Atlas Copco SB 202, the SEWOOMIC SB202 represents the apex of solid-body monobloc engineering. By combining high impact frequency, an unyielding steel body design, and optimized hydraulic energy transfer, this attachment provides B2B equipment dealers and end-users with an unmatched price-to-performance ratio.

2. Monobloc Engineering Concept: Structural Innovation & Working Principles

What sets the SEWOOMIC SB202 apart from traditional segmented breakers is its revolutionary monobloc housing design. Manufactured from a single forged block of high-tensile alloy steel, the cylinder housing and guide mechanism are fully integrated. This eliminates the need for side bolts, top bolts, and body parting line gaskets—components that are historically prone to stretching, loosening, or snapping under heavy bending forces.

The Mechanics of Impact Energy Conversion

The SB202 operates on an advanced hydraulic-gas power cycle designed for compact carriers:

• Oil Flow Optimization: Hydraulic oil from the carrier enters the main valve assembly, propelling the internal piston upward against a sealed high-pressure accumulator chamber.

• Kinetic Energy Storage & Release: As the piston reaches its upper stroke limit, the compressed gas chamber releases stored potential energy, rapidly accelerating the piston downward to strike the 65mm chisel tool.

• Energy Recovery Recoil: Operating as an energy recovery system mini hydraulic breaker, the tool automatically captures piston recoil energy to supplement the next impact stroke, simultaneously reducing hydraulic power demands and minimizing machine recoil vibration.

3. Comprehensive Technical Specifications

Engineered specifically as an atlas copco sb202 equivalent hydraulic hammer, the SEWOOMIC SB202 offers precise dimensional and hydraulic compatibility with global compact excavator fleets.

4. Key Engineering Advantages & User Pa-in Point Solutions

1. Boltless Monobloc Durability

Conventional small breakers utilize long tie rods that stretch and fail under torsional strain. The SB202’s solid steel casting eliminates side bolts completely. This structural integrity makes it a true solid body design hydraulic concrete breaker capable of resisting operator abuse, side-prying loads, and high-vibration demolition duty.

2. Carrier Protection via Overload Safeguards

Fluctuations in carrier oil pressure can lead to severe internal hydraulic damage. The SB202 features an integrated overload pressure relief valve breaker mechanism that bypasses excessive pressure spikes, shielding both the breaker internal valve system and the host machine’s primary hydraulic pump.

3. Extended Bushing and Retainer Pin Life

To prevent tool binding and irregular bushing wear, the front head employs a dual retainer pin mini breaker attachment design. Dual heavy-duty pins distribute working stress evenly across the 65mm chisel shaft, while a quick-exchange floating wear bushing simplifies daily on-site maintenance.

4. Recoil and Noise Dampening

Indoor and tight-space jobs demand low sound levels and minimal operator fatigue. Utilizing internal damping guides, the SB202 acts as a recoil damping monobloc hydraulic demolition breaker, suppressing shockwaves before they travel up the excavator boom and cab assembly.

5. Primary Application Scenarios & Industry Use Cases

• Urban Infrastructure & Utility Trenching: Perfect as a utility work trenching hydraulic rock hammer, enabling fast excavation through asphalt, underlying concrete slabs, and hard soil layers without damaging adjacent utility lines.

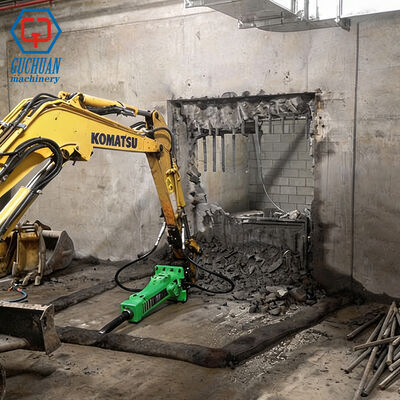

• Indoor Renovation & Selective Demolition: Its compact 200kg profile makes it an ideal indoor demolition mini excavator breaker tool, effortlessly breaking floor slabs, foundation footings, and reinforced brick walls in confined indoor sites.

• Asphalt & Pavement Stripping: Works as a dedicated trenching and asphalt cutting hydraulic breaker, delivering precise impact control to clean-cut road edges prior to resurfacing.

• Landscape & Civil Earthworks: Easily tackles embedded boulders, frost layers, and soft rock formations on civil development sites, acting as a light concrete breaking hydraulic hammer attachment.

• Underground Scaling & Tunnel Profiling: Compact profile and optional water-spray/dust-suppression ports make the SB202 highly effective for scaling underground mine walls and clearing ladle slag in metallurgical plants.

6. Carrier Compatibility & Matching Guide

The SB202 is optimized to fit a broad spectrum of 2.5 to 6.0-ton mini excavators, compact track loaders, and skid steer units.

• Cater-pillar (CAT): 302.7 CR, 303 CR, 303.5 CR, 304, 305 CR series.

• Kubota: U25, U35, KX033-4, KX040-4 series.

• Komatsu: PC26MR, PC30MR, PC35MR, PC45MR series.

• Yanmar & Takeuchi: ViO25, ViO35, SV40 / TB230, TB240 series.

• Bob-cat & Skid Steers: E26, E35, E42, E50, and standard skid steer loader hydraulic breaker attachment carrier plates.

Standard pin-on ears or quick-coupler mounting brackets can be customized to match exact carrier dimensions.

7. Strategic Manufacturing & B2B Supply Chain Advantages

As a premium chinese supplier mini excavator hydraulic breaker manufacturer, Jiangsu Guchuan Machinery Co., Ltd. brings over a decade of precision manufacturing expertise. Operating from our Changzhou factory, we maintain rigorous ISO quality management systems across every stage of production—from raw high-alloy steel selection and CNC machining to vacuum heat treatment and 100% hydraulic pressure testing.

Global distributors choosing SEWOOMIC gain access to:

1. Identical OEM/Aftermarket Fitment: Full interchangeability of wear parts with original Epiroc / Atlas Copco SB 202 components.

2. Cost Efficiency & High Margin: Top-tier alloy durability at factory-direct pricing.

3. Comprehensive Spare Parts Availability: Complete inventory of 65mm chisel chisels, wear bushings, seal kits, and retainer pins ready for global dispatch.

Equip your mini excavator fleet with the SEWOOMIC SB202 Monobloc Hydraulic Breaker today to boost job site productivity, lower operating overhead, and conquer tough demolition challenges. Contact our technical sales team for CAD drawings, OEM options, and factory-direct quotation sheets.
