1. Introduction: Market Demands in Compact Demolition Equipment

In the global construction and demolition sector, the demand for compact, efficient, and versatile excavator attachments has grown rapidly. Modern urban infrastructure projects, utility trenching, indoor residential renovations, and tight-space excavations require attachments that maximize impact output while keeping carrier weight and operating costs minimal. Mini excavators ranging from 1.9 to 4.5 tons have become the industry workhorse for compact earthmoving. However, equipping these machines with traditional tie-rod hydraulic breakers often leads to excessive vibration, frequent side-bolt breakage, higher carrier wear, and costly maintenance downtime.

To address these site operational challenges, Jiangsu Guchuan Machinery Co., Ltd. (established in 2010 in Changzhou, China) delivers the SEWOOMIC SB152 monobloc hydraulic breaker for mini excavator applications. Benchmarked directly against the industry-standard Swedish Atlas Copco / Epiroc SB 152, the SEWOOMIC SB152 utilizes a durable solid steel body hydraulic breaker tool design. By eliminating structural tie rods and side bolts, this advanced hammer delivers maximum durability, high impact efficiency, and seamless operational reliability for global B2B fleets, equipment dealers, and rental companies.

2. Structural Innovation: The Monobloc Solid Body Concept

The defining technological foundation of the SEWOOMIC SB152 is its Monobloc (Solid Body) architectural design. Traditional hydraulic breakers assemble separate cylinder blocks, front heads, and back heads held together by long, high-tension tie rods or through-bolts. Under severe bending forces, misaligned strikes, or operator abuse, these bolts are prone to loosening, stretching, or snapping.

The SB152 completely eliminates these vulnerabilities.

• Integrated One-Piece Housing: The entire percussion mechanism and guide cylinder are precision-machined from a single block of high-strength alloy steel forging. This side bolt free hydraulic hammer for compact carrier configurations eliminates body parting lines, dramatically improving resistance to torsional stress and extreme bending forces encountered during pry-breaking.

• 20% Weight Reduction: Integrating the housing structure reduces total attachment weight by approximately 20% compared to traditional bolt-assembled breakers in the same impact class. As a solid body hydraulic breaker 140kg weight class attachment, the SB152 allows operators to mount a powerful hammer onto lighter compact excavators without exceeding boom lift capacity or stability limits.

• Integrated Diaphragm Accumulator: The high-pressure nitrogen accumulator is cast directly into the internal breaker housing. As a maintenance free accumulator hydraulic breaker for excavator fleets, it requires no regular gas recharging and eliminates external lines or bolt-on housings that could be damaged during operation in confined spaces.

3. Core Technologies & Operating Performance

The SEWOOMIC SB152 is engineered with advanced hydraulic control dynamics that maximize energy conversion while protecting the host carrier.

Energy Recovery & Recoil Absorption

When the breaker piston strikes the working tool, a portion of the impact energy reflects backward as kinetic recoil. The SB152 features an energy recovery hydraulic rock breaker for mini digger units system. This mechanism captures the reflected recoil energy and automatically routes it into the next hydraulic piston stroke. This results in a higher strike frequency, higher overall impact efficiency, reduced hydraulic oil temperature spikes, and noticeable savings in carrier fuel consumption.

VibroSilenced Noise and Shock Suppression

Working in dense urban environments or indoor building interiors demands low noise levels. The SB152 incorporates hard-wearing dampening polyurethane pads and guide elements between the power cell and outer housing. Operating as a low noise hydraulic breaker for urban demolition project sites, the SB152 achieves a guaranteed sound power level of 114 dB(A) and a sound pressure level of only 85 dB(A) at 10 meters, ensuring full compliance with international noise regulations. Furthermore, the hydraulic breaker with integrated shock damping system shields the mini excavator’s boom, arm, and pin bushings from damaging vibration feedback.

Smart Hydraulic Protection & AutoStart

• Overload Protection Valve: Prevents hydraulic spikes and excessive oil pressure from damaging internal piston seals if line pressure fluctuates.

• AutoStart Mode: Allows the breaker to begin striking immediately upon tool contact with hard material, facilitating smooth positioning for operators.

• Integrated Ports: Built-in water ports enable dust suppression sprays, while air ports allow air flushing for underground or specialized trenching operations.

4. Simplified Serviceability & Dual Tool Retaining Design

Minimizing job site downtime is critical for profit margins. The SB152 is designed for simple, fast maintenance using standard hand tools:

• Dual Retainer Bars: Employs a dual tool retainer bar hydraulic rock hammer retaining system. Dual oval retaining pins distribute wear evenly across the tool shank, reducing tool rotation and extending working life.

• Floating Tool Bushing: Features an easy maintenance floating bushing hydraulic hammer assembly. The single-piece floating bushing provides excellent guidance for the 50mm tool shank and can be replaced directly on site without dismantling the main housing or accumulator assembly.

5. Technical Specifications Table

The technical specifications of the SEWOOMIC SB152 (epiroc sb152 aftermarket alternative hydraulic breaker / atlas copco sb 152 equivalent hydraulic hammer) are summarized below:

6. Machine Matching & Application Compatibility

The SEWOOMIC SB152 is optimized to fit a wide range of global carrier brands. Whether deployed as a compact excavator rock breaker 1.9 to 4.5 ton attachment, a boltless monobloc hydraulic breaker for skid steer loaders, or a compact track loader tool, mounting is fast and straightforward.

Compatible Carrier Models (1.9 – 4.5 Tons):

• Cater-pillar (CAT): 301.7, 301.8, 302 CR, 303.5 CR series

• Komatsu: PC18MR, PC20MR, PC26MR, PC30MR, PC35MR series

• Kubota: KX019-4, KX033-4, U25, U35 series

• Bob-cat: E20, E26, E32, E35 series

• Takeuchi: TB216, TB230, TB235 series

• Yanmar / SANY / Vol-vo / JCB: ViO17, ViO25, SY26C, SY35U, ECR25D, 8025 ZTS

7. Field Applications & Versatility

With its high power-to-weight ratio and compact dimensions, the SB152 excels in diverse field applications:

1. Utility Trenching & Pipe Laying: Easily breaks asphalt, frozen ground, and reinforced concrete in narrow trenches.

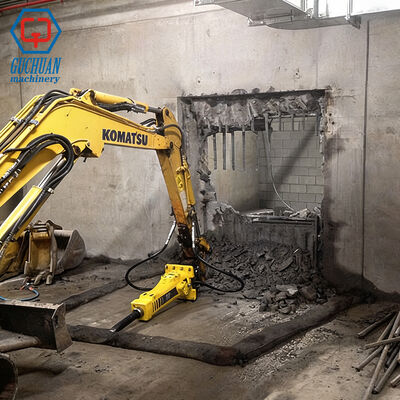

2. Indoor & Building Demolition: Sleek monobloc profile fits through narrow doorways and operating zones inside residential or commercial structures.

3. Road Repairs & Municipal Maintenance: Rapidly shatters concrete pavement, curb blocks, and sidewalk slabs.

4. Landscaping & Foundation Preparation: Works as a heavy duty mini excavator concrete breaking attachment for breaking boulders, clearing rocky terrain, and digging footing foundations.

5. Dust-Sensitive Work: Equipped with a dust suppression water port excavator breaker line connection to suppress airborne particulate matter on environmental sites.

8. Why Partner with SEWOOMIC (Guchuan Machinery)?

As a direct manufacturer based in Changzhou, China, Jiangsu Guchuan Machinery Co., Ltd. combines advanced CNC machining, rigorous metallurgical quality control, and deep international market expertise.

• Factory-Direct Cost Advantage: As a premier china hydraulic breaker factory direct B2B supplier, SEWOOMIC offers OEM/ODM customization and direct export pricing while matching or exceeding original equipment performance standards.

• High Impact Output: Delivering a high impact energy mini excavator jack hammer performance curve, our breakers match the dimensional and hydraulic requirements of global brand fleets.

• Complete Spare Parts Interchangeability: All major internal components—including pistons, floating bushings, retainer pins, seal kits, and chisels—are fully interchangeable with Atlas Copco / Epiroc SB 152 series attachments, helping dealers minimize spare parts inventory overhead.

• Full-Scale Product Portfolio: In addition to the SB152 (sewoomic SB152 monobloc excavator hammer attachment), SEWOOMIC manufactures nitrogen-charged breakers (Soosan SB10 to SB151 equivalents), pure hydraulic series (MSB MS550–MS800 & Furukawa HB-G series equivalents), and ultra-heavy-duty mining hammers for tool diameters up to 210mm.

Equip your mini excavator fleet with the SEWOOMIC SB152 Monobloc Hydraulic Breaker today for uncompromised breaking power, zero side-bolt maintenance, and maximum return on investment!
