In the highly competitive sectors of construction, infrastructure development, and open-pit mining, operational efficiency and strict compliance with environmental and noise regulations are the pillars of project success. As modern metropolitan centers expand globally, stringent municipal noise limits have rendered traditional open-frame hammers obsolete for urban job sites.

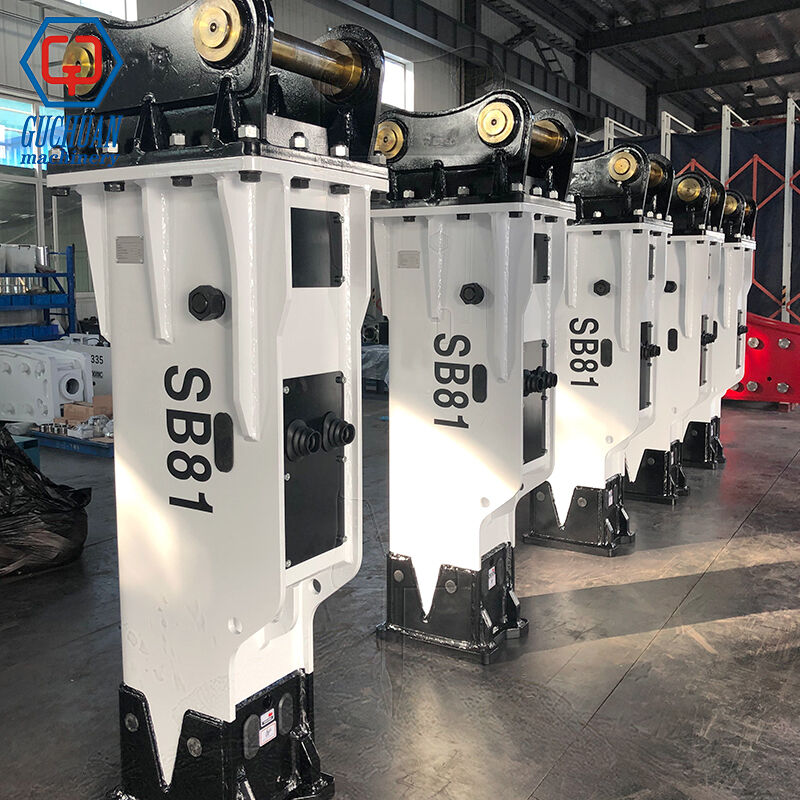

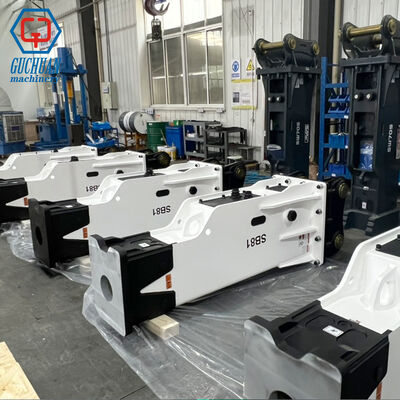

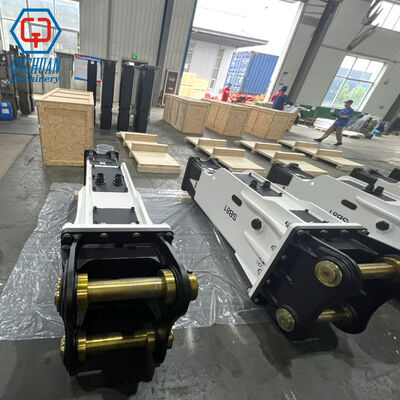

To address these evolving engineering challenges, SEWOOMIC (manufactured by Guchuan Machinery, established in 2010) has engineered a premier, heavy-duty solution: the SB81 (Internal Model: GCB220) Silent Box Type Hydraulic Breaker. This high-performance attachment seamlessly blends immense impact energy with state-of-the-art acoustic attenuation, providing global B2B buyers and fleet managers with an international-brand standard of durability at a highly competitive, factory-direct price.

Below is an expert technical analysis of the design principles, engineering features, host carrier compatibility, and key application scenarios that make the SB81 the preferred excavator rock hammer for modern fleets.

1. The Core Principle: Advanced Nitrogen-Charged Efficiency

The SEWOOMIC SB81 operates as a top-tier nitrogen charged hydraulic breaker. Understanding its underlying mechanical principle highlights why this specific system outperforms mechanical alternatives and lower-tier options:

• Dual-Power Synergy: The breaking mechanism relies on a sophisticated combined power system utilizing both high-pressure hydraulic oil from the host excavator and compressed nitrogen gas ($N_2$) stored within the breaker’s back head chamber.

• Energy Accumulation: During the piston's upward stroke, the carrier's hydraulic fluid pushes the piston upward, which compresses the nitrogen gas trapped in the upper chamber. This action stores massive potential energy.

• High-Impact Release: When the internal directional valve shifts at the peak of the stroke, the compressed nitrogen instantly decompresses. This explosive decompression drives the piston downward with immense velocity, striking the top of the chisel tool.

By utilizing this advanced nitrogen-assist mechanism, this high impact rock hammer achieves a significantly elevated strike frequency and delivers harder blows. Crucially, it achieves this without placing excessive volumetric oil flow demands on the excavator's primary hydraulic pumps, minimizing fuel consumption and optimizing thermal stability.

2. Key Engineering Features & Technical Advantages

The SB81 is meticulously designed to eliminate the most common pa-in points encountered by heavy equipment operators—such as high-decibel noise complaints, hydraulic fluid leaks, and premature component fatigue.

Enclosed Silenced Box Design

The defining characteristic of this silent hydraulic breaker is its fully enclosed protective housing structure. High-density, wear-resistant polyurethane dampening pads and side guides are structurally integrated between the inner power cell and the outer steel shell. This specialized silenced excavator hammer construction achieves three major engineering goals:

1. Acoustic Insulation: It drastically dampens decibel output, transforming it into an ideal urban demolition attachment for sensitive metropolitan environments.

2. Structural Shielding: The heavy-duty outer box isolates the vital cylinder assembly, front head, and back head from abrasive dust, rock fragments, and falling debris.

3. Boom Protection: The premium internal polyurethane cushions absorb the massive recoil shockwaves generated by each strike, preventing destructive vibrations from propagating up the excavator boom and safeguarding the carrier’s pins and hydraulic arm.

State-of-the-Art Anti-Leak Valve & Cylinder Technology

Hydraulic fluid leakage is a leading cause of unscheduled downtime for excavator attachments. SEWOOMIC solves this critical issue through world-class precision manufacturing:

• Premium Cylinder Grinding: Utilizing imported high-end CNC machining centers from Japan and South Korea, the inner cylinders undergo advanced hydraulic breaker cylinder grinding (EMG precision grinding) to achieve airtight, microscopic tolerances.

• Optimized Oil Circuits: The internal fluid channels are engineered to reduce hydraulic fluid friction and minimize operational heat generation. This protects high-end seals from thermal degradation, delivering a truly anti leak hydraulic breaker performance over thousands of continuous hours.

Uncompromised B2B ROI & Quality Standard

Built under strict ISO9001 quality control protocols, the SB81 is manufactured from premium-grade alloy steel subjected to specialized deep-cycle heat treatment. It functions as a direct soosan sb81 breaker equivalent, offering identical structural metallurgy and strike velocities but at a fraction of the initial purchasing and long-term maintenance costs associated with traditional premium brands, resulting in a superior return on investment for rental fleets and contractors.

3. Technical Specifications

Optimized for 20-to-30-ton class machinery, the technical parameters of the SB81 ensure a perfect hydraulic equilibrium between the carrier asset and the attachment:

4. Host Compatibility: The Ideal Match for 20-30 Ton Carriers

The SB81 hydraulic jack hammer for excavator applications is explicitly optimized for medium-to-large crawler and wheeled excavators. It integrates seamlessly with global heavy equipment brands, ensuring flawless hydraulic line compatibility without choking the host engine or causing hydraulic overheating.

It is widely deployed as a premier attachment for the following platforms:

• Cater-pillar (CAT): 320, 323, 326, 330, and 336 series.

• Komatsu: PC200, PC210, PC220, PC240, and PC290 series.

• Hitachi: ZX200, ZX210, ZX240, and ZX300 series.

• Sany: SY215, SY225, and SY335 series.

• Kobelco / Doosan / Hyundai / Vol-vo: All standard 20-ton to 30-ton class carriers.

Whether utilized as a dedicated rock breaker for excavator fleets or shared across mixed assets as a high-capacity heavy duty hydraulic breaker, its standard pinning geometries and versatile bracket adapters make field installation swift and straightforward.

5. Versatile Application Scenarios

From highly regulated urban renewals to aggressive open-pit mines, this heavy-duty hydraulic concrete breaker adapts smoothly to diverse engineering challenges:

• Urban Demolition & Renovation: Perfect for the structural dismantling of reinforced concrete buildings, bridge abutment fracturing, and commercial foundation wall breaking where strict municipal noise boundaries apply.

• Quarrying & Open-Pit Mining: Highly effective when deployed as a primary or secondary quarry rock breaker. It handles oversized boulder fracturing, slag clearing, and primary layer splitting with ease, prepping materials efficiently for mobile crushers.

• Infrastructure & Roadworks: An essential tool for highway pavement tearing, asphalt stripping, concrete runway destruction, and deep trenching for utility pipelines.

• Tunneling & Civil Site Prep: Engineering-grade performance for underground tunneling excavation, structural slope profiling, and breaking up hard, compacted permafrost or dense clay during initial site leveling.

6. Partnering with SEWOOMIC: Your Trusted B2B Manufacturing Expert

Choosing an excavator attachments manufacturer requires finding a partner that deeply understands the demands of wholesale cross-border supply chains. With over 15 years of industry-leading production expertise, Guchuan Machinery provides reliable OEM and ODM support tailored to heavy equipment distributors, rental fleet managers, and spare-parts importers worldwide.

Why B2B Sourcing Agents Trust SEWOOMIC:

• Factory-Direct Pricing: Eliminate intermediary trading company markups and purchase directly from the source to maximize your profit margins.

• Customized OEM/ODM Options: Tailor the housing graphics, paint configurations, and mounting adapter brackets to suit your regional market demographics.

• Robust Cross-Border Support: Benefit from streamlined global logistics, comprehensive technical documentation, and guaranteed long-term spare parts availability.

Invest in the SEWOOMIC SB81 to eliminate maintenance-induced downtime and supercharge your site productivity. Contact our engineering team today to request a factory-direct quote.
