In the global construction, quarrying, and excavation sectors, selecting the right attachment is a calculated decision based on productivity, maintenance overhead, and machinery uptime. While enclosed silenced hammers excel in noise-sensitive municipal zones, heavy-duty earthmoving and rock-splitting projects require raw power, structural resilience, and rapid field serviceability.

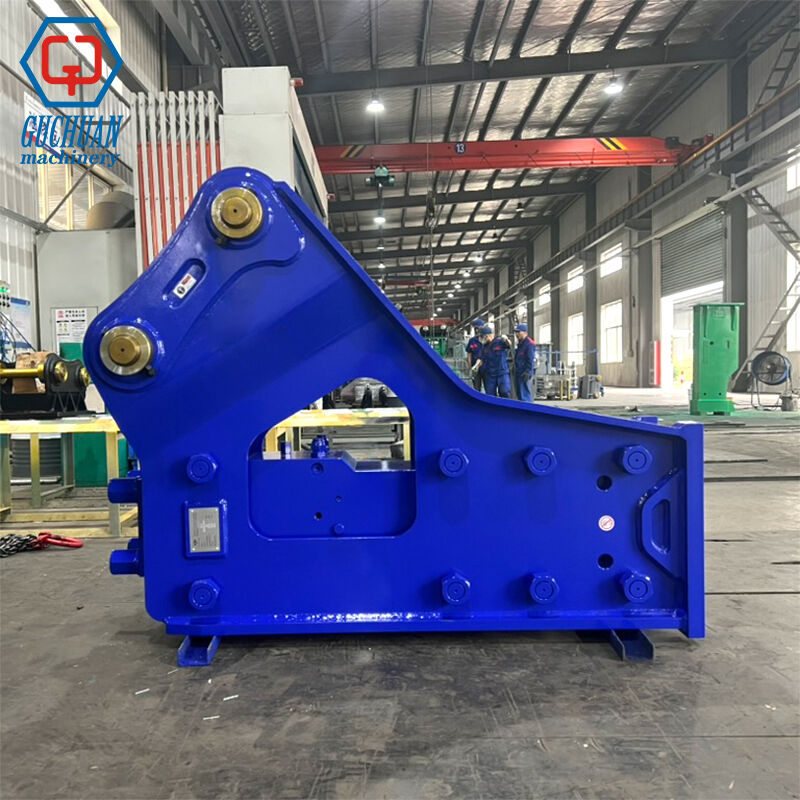

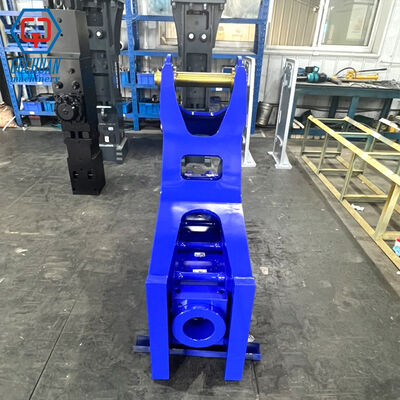

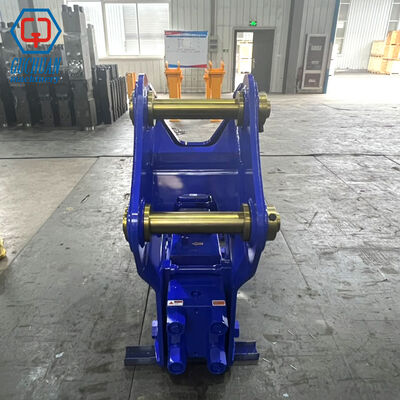

To meet these demanding operational requirements, SEWOOMIC (engineered and manufactured by Guchuan Machinery, established in 2010) introduces the SB70 (Internal Model: GCB210) Triangle Side Type Hydraulic Breaker. This open-frame, side-mounted powerhouse offers international-brand impact velocities and world-class durability at a highly competitive, factory-direct wholesale price.

Below is an authoritative technical breakdown of the engineering principles, unique structural advantages, compatibility metrics, and target applications that make the SB70 the premier side type hydraulic breaker for heavy equipment fleets worldwide.

1. The Core Engineering Principle: Optimized Nitrogen Gas Power

The performance of the SEWOOMIC SB70 relies on a time-tested, highly efficient nitrogen charged rock hammer system. Rather than depending solely on the excavator’s hydraulic system, this breaker uses a dual-energy synergy mechanism:

• Energy Accumulation: As hydraulic fluid from the carrier forces the piston upward, it compresses high-purity nitrogen gas ($N_2$) securely sealed within the breaker's back head.

• Explosive Stroke Release: When the internal directional control valve shifts, the immense kinetic energy stored within the compressed nitrogen is instantaneously released. This decompressed gas drives the heavy piston downward with devastating force against the tool chisel.

By capitalizing on this gas-assist technology, the SB70 functions as a high impact rock hammer that maximizes strike energy while reducing the overall volumetric oil flow demand on the host excavator's main hydraulic pumps. This preserves fuel, lowers system back-pressure, and ensures a relentless, stable strike frequency even through prolonged operating cycles.

2. Structural Advantages of the Triangle & Side-Mounted Design

The triangle type hydraulic breaker—frequently referred to in the international market as a side mount hydraulic rock hammer—features distinctive design enhancements that distinguish it from traditional top-mount or fully enclosed box-type breakers:

Lower Center of Gravity & Enhanced Reach

By positioning the installation pinning brackets directly on the side of the housing frame rather than atop the rear head, the overall operational length of the hammer is reduced. This compact profile moves the attachment's center of gravity closer to the excavator's dipper arm. Consequently, this side type excavator hammer offers superior stability during transport and allows operators to handle high-reach vertical demolition and deep trenching tasks with greater precision and minimized carrier tipping risk.

Superior Heat Dissipation Advantage

Continuous rock breaking generates extreme friction, leading to elevated thermal levels within the breaker cylinder. The open-frame architecture of this open frame hydraulic breaker permits continuous, unhindered airflow around the inner power cell. This enhanced cooling performance keeps hydraulic oil viscosity stable and significantly prolongs the service life of high-end polyurethane seal kits, preventing premature cylinder failure in arid or high-temperature quarry environments.

Unrivaled Field Serviceability

Time lost in the workshop is profit lost on the job site. The open type hydraulic concrete breaker configuration exposes the front head, back head, and primary tie rods. Fleet mechanics can inspect critical components, re-torque side bolts, check nitrogen pressure, or replace the tool bushing directly in the field without dismantling a heavy outer box. This direct-access engineering reduces maintenance downtime from hours to minutes.

Maximized B2B Cost-Efficiency

Featuring a streamlined frame structure with fewer internal wear pads, the SB70 triangle breaker offers a lower initial purchase price and reduced long-term total cost of ownership compared to silenced alternatives. Serving as a premium soosan sb70 breaker equivalent, it gives equipment distributors and rental companies a high-margin product that delivers uncompromising heavy-duty fracturing performance.

3. Technical Specifications

The SB70 (GCB210) is carefully engineered to match the hydraulic output profiles of standard 20-ton class heavy machinery, creating a flawless operational equilibrium:

4. Host Machine Compatibility: Built for 16-21Ton Class Carriers

The SB70 hydraulic jack hammer for excavator systems is fully optimized for medium-to-large scale crawler or wheeled excavators. It functions seamlessly across international equipment brands without choking the engine or causing thermal spikes in the carrier's primary cooling lines.

It is widely regarded by fleet operators as one of the best hydraulic breaker for CAT 320 applications, and integrates perfectly with:

• Cater-pillar (CAT): 320, 323, 326 series

• Komat-su: PC200, PC210, PC220 lines

• Hita-chi: ZX200, ZX210, ZX240 models

• Sa-ny: SY215, SY225 series

• Vol-vo / Kobel-co / Doo-san / Hyun-dai: All standard 16 to 21-ton excavators.

Whether deployed as a dedicated rock breaker for 20 ton excavator fleets or utilized as a versatile hydraulic breaker for 22 ton excavator configurations, its standardized mounting geometries make installation fast and straightforward.

5. Primary Application Scenarios

Thanks to its durable construction, the heavy duty side type breaker handles a variety of challenging infrastructure and earthmoving operations:

• Quarrying & Primary Extraction: Excellent when operating as a quarry rock breaker for primary material separation, reducing oversized boulders, and sizing blasted rock before crusher processing.

• Trenching & Utility Infrastructure: The lower profile of the triangle mount makes it ideal for cutting clean trenches through limestone, shale, and hard permafrost for cross-country utility pipelines and sewage networks.

• Road Reconstruction & Mass Demolition: Highly effective at ripping up thick highway asphalt layers, fracturing heavy concrete bridge decks, and dismantling reinforced concrete foundations where noise mandates are flexible.

• Mining & Slag Cleardown: Well-suited for clearing slag chambers in steel works, tunneling development, and mining face profiling where maximum durability is essential.

6. Partnering with SEWOOMIC: Global B2B Excellence

Sourcing from a proven excavator attachments manufacturer is crucial for overseas distributors and fleet suppliers. Backed by over 15 years of precision manufacturing experience, Guchuan Machinery provides comprehensive OEM and ODM support tailored to international markets.

Every SB70 cylinder undergoes specialized hydraulic breaker cylinder grinding (EMG precision process) to guarantee ultra-tight tolerances and eliminate oil leakage. By cutting out trading company intermediaries, SEWOOMIC provides high-performance, factory-direct equipment alongside secure cross-border logistics and full spare parts availability.

Contact our engineering team today to request a factory-direct quote and add the high-yielding SB70 triangle side type breaker to your inventory.
