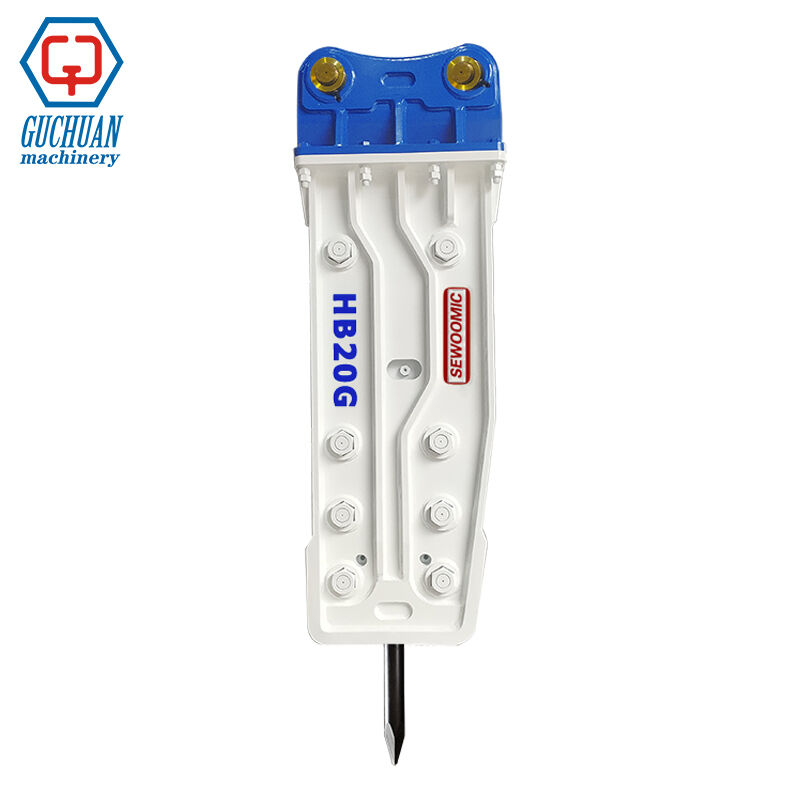

HB20G Open Type Hydraulic Breaker Rock Breaker for 18-25 Tons Excavator With 135mm Chisel

Brand Name:	SEWOOMIC
Model Number:	HB20G
MOQ:	1
Price:	Negotiable
Packaging Details:	Wooden Box
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE / ISO9001

Suitable Excavator:

18-25 Tons

Operating Weight:

1766 Kg

Required Oil Flow:

125-160 L/min

Setting Pressure:

210-230 Bar

Operating Pressure:

160-180 Bar

Impact Energy:

3692 Joule

Impact Rate:

350-600 Bpm

Hose Diameter:

1 Inch

Noise Level:

120 DB

Tool Diameter:

135 Mm

Warranty:

1 Year

Supply Ability:

100 pcs/month

Product Description

HB20G Open Type Nitrogen Hydraulic Breaker – Professional-Grade Demolition Power for 18–25 Ton Excavators

Company Overview: Guchuan Machinery Co., Ltd.

Established in 2010 and headquartered in Changzhou, Jiangsu, China, Guchuan Machinery Co., Ltd. is a leading manufacturer and global B2B supplier of high-performance hydraulic breakers, hydraulic hammers, rock breakers, and demolition attachments for construction machinery. With over a decade of focused R&D, precision manufacturing, and strict quality control, we have built long-term strategic partnerships with many world-renowned construction machinery brands and hydraulic breaker manufacturers across the globe.

Our product portfolio covers a full range of hydraulic breakers from mini to ultra-heavy-duty models, including:

SB10/GCB30, SB20/GCB40, SB30/GCB50, SB35/GCB53, SB40/GCB60, SB43/GCB75, SB45/GCB85, SB50/GCB100, SB60/GCB190, SB70/GCB210, SB81/GCB220, SB100/GCB280, SB121/GCB320, SB131/GCB350, SB140/GCB360, SB151/GCB400;

MS550/GHB120, MS600/GHB130, MS700/GHB140, MS800/GHB160;

HB15G/GCB180, HB20G/GCB200, HB30G/GCB300, HB40G/GCB330;

MB1500/NB1500.

We also produce customized ultra-heavy-duty hydraulic breakers with tool diameters of 175mm, 195mm, 200mm, 205mm, and 210mm for large-scale mining, quarrying, and heavy infrastructure projects.

Guchuan Machinery owns independent intellectual property rights and strong capabilities in developing auto-variable frequency pure hydraulic breakers and nitrogen-assisted hydraulic breakers. All our products are engineered to deliver exceptional power, durability, efficiency, and cost-effectiveness for distributors, rental companies, construction contractors, and engineering enterprises worldwide.

Product Introduction: HB20G Open Type Nitrogen Hydraulic Breaker

The HB20G open type nitrogen hydraulic breaker is a mid-range, high-performance demolition attachment designed exclusively for 18–25 ton excavators. It combines advanced nitrogen energy storage technology, a robust open-frame structure, optimized hydraulic systems, and heavy-duty components to deliver reliable breaking performance in diverse construction scenarios.

This model is widely used in municipal maintenance, building renovation, landscaping, farmland water conservancy, traffic engineering, and industrial site reconstruction. It excels at breaking reinforced concrete, asphalt, medium-hard rock, hardened soil, and small foundations with high efficiency and stability.

Parameter

Light Weight Range Hydraulic Breaker
Model No.	Chisel Diameter (mm)	Excavator Weight (ton)	Body Weight (kg)	Working Flow Rate (L/min)	Working Pressure (Bar)	Impact Rate (bpm)
SB10/GCB40	40	0.8-2.5	73	15-30	90-120	800-1400
SB20/GCB45	45	1.2-3.0	100	20-40	90-120	700-1200
SB30/GCB50	53	2.5-4.5	120	20-50	90-120	500-900
SB40/GCB60	68	4.0-7.0	298	40-70	110-140	400-800
Medium Weight Range Hydraulic Breaker
SB43/GCB75	75	6.0-9.0	375	50-90	120-150	400-800
SB50/GCB100	100	11-16	890	80-110	150-170	350-700
SB81/GCB22O	140	18-26	1754	120-180	160-180	350-500
SB81A/GCB220	140	18-26	1773	120-180	160-180	350-500
HB20G/GCB200	135	18-25	1680	125-150	160-180	400-800
Large Weight Range Hydraulic Breaker
SB121/GCB320	155	28-35	2555	180-240	160-180	300-450
SB131/GCB350	165	35-43	3065	200-260	160-180	250-400
HB30G/GCB300	150	25-30	2305	160-190	160-180	350-700
GCB500	195	50-60	5350	245-290	230-250	100-150
GCB650	210	65-100	7200	290-340	250-270	90-130

Working Principle & Advanced Technical Features

The HB20G adopts an advanced nitrogen-hydraulic composite power system, which is the core technology that sets it apart from standard hydraulic breakers.

1. Nitrogen Energy Storage & Recovery System

The rear chamber is filled with high-pressure nitrogen. During the piston’s upward stroke, nitrogen is compressed to store energy. During the downward stroke, hydraulic pressure and nitrogen expansion energy act simultaneously on the piston, significantly boosting impact energy and impact frequency. This design reduces hydraulic oil consumption, lowers heat generation, and protects the excavator’s hydraulic system.

2. Open Type Frame Structure

The open-frame design provides direct access to internal components for inspection, cleaning, and maintenance. It improves heat dissipation, reduces clogging from mud and debris, and enhances durability in harsh working conditions.

3. Optimized Hydraulic Control System

The precision-engineered hydraulic system ensures smooth oil flow, stable pressure, and consistent impact performance. It automatically adjusts impact frequency based on material hardness, preventing blank firing and reducing component wear.

4. High-Strength Alloy Steel Components

Key parts including the piston, cylinder, front head, tool bushing, and control valve are made from high-strength alloy steel (40CrMo, 42CrMo) through precision forging, heat treatment, and fine grinding. This ensures exceptional wear resistance, pressure resistance, and service life under heavy loads.

5. Anti-Blank Firing & Overload Protection

The built-in anti-blank firing system prevents piston damage when the chisel is not in contact with the material. Overload pressure protection avoids system failures caused by excessive pressure, improving safety and stability.

6. Easy Maintenance & Long Service Life

The modular design simplifies seal replacement, tool changes, and routine inspections. High-quality oil seals and wear parts extend service intervals and reduce downtime.

Core Product Advantages

1. Strong & Stable Breaking Power

With 3692 Joules of impact energy and an impact rate of 350–600 Bpm, the HB20G efficiently breaks reinforced concrete, asphalt, rock, and hardened soil. The nitrogen-assisted system ensures consistent power without hydraulic fluctuations.

2. Open Frame for Durability & Maintenance

The open structure reduces heat buildup, resists mud and dust, and allows quick maintenance. This lowers long-term operating costs and increases uptime.

3. Perfect Compatibility with 18–25 Ton Excavators

It fits all major excavator brands including CAT, Komatsu, Hitachi, Kobelco, Doosan, Hyundai, XCMG, SANY, and LiuGong. Installation and debugging are simple and fast.

4. High Efficiency & Energy Saving

The optimized hydraulic system matches the 125–160 l/min oil flow range of medium excavators, reducing fuel consumption while improving work efficiency by 20–30% in municipal and renovation projects.

5. Heavy-Duty Reliability

High-strength components, advanced heat treatment, and strict assembly standards ensure stable performance in harsh construction environments.

6. Safe & User-Friendly Design

Anti-blank firing, overload protection, and stable vibration control enhance safety for operators and equipment, especially in urban and confined spaces.

Main Application Fields & Scenarios

The HB20G open type nitrogen hydraulic breaker is widely used in projects requiring high efficiency, reliability, and versatility.

1. Municipal & Public Facility Maintenance

Sidewalk & Road Repair: Breaks concrete sidewalks, curbs, and damaged asphalt for quick patch repairs.
Trench Excavation: Crushes hardened soil and shallow rock for pipeline and cable trenches.
Drainage Construction: Demolishes concrete drainage ditches, pipe wells, and septic tanks; clears hardened blockages.
Urban Landscaping: Breaks old flower beds, retaining walls, and small concrete foundations for street lamps and billboards.

2. Building Renovation & Interior Demolition

Wall Reconstruction: Demolishes non-bearing walls, concrete partitions, and widens door/window openings.
Floor Removal: Breaks bathroom/kitchen floor layers and old terraces without structural damage.
Small Foundation Demolition: Crushes equipment bases, steps, and canopy foundations.
Basement Work: Performs local demolition in confined underground spaces.
Grooving: Cuts precise channels for pipelines with controlled vibration.

3. Landscaping & Farmland Water Conservancy

Rock Breaking: Crushes field boulders and weathered rock for land leveling.
Tree Pit Excavation: Works efficiently in hard soil and soft rock.
Ditch Restoration: Breaks hardened ditch linings and repairs small dams.

4. Traffic & Road Auxiliary Engineering

Highway Maintenance: Crushes guardrail foundations and damaged bridge decks.
Tunnel Repair: Compact size fits narrow tunnel spaces for small-scale repairs.
Railway Maintenance: Clears track bed hardened blocks and repairs drainage ditches.

5. Industrial & Commercial Sites

Factory Floor Renovation: Breaks old workshop concrete floors for replacement or grooving.
Equipment Demolition: Crushes small production line foundations and storage tank bases.

In all these applications, the HB20G delivers high efficiency, stable performance, and reliable operation.

Why Choose Guchuan Machinery HB20G Hydraulic Breaker?

Professional Manufacturer Expertise: Founded in 2010, we focus exclusively on hydraulic breakers with deep industry knowledge.
Full Product Range: We offer one-stop procurement from mini to ultra-heavy-duty models.
Independent R&D Capability: Auto-variable frequency and nitrogen hydraulic technologies ensure superior performance.
Strict Quality Control: High-grade materials, precision machining, and comprehensive testing guarantee reliability.
Global Partnerships: We cooperate with world-famous brands and serve customers in over 60 countries.
Professional B2B Service: Customization, technical support, spare parts supply, and after-sales service.
Cost-Effective Solution: High performance, long service life, and low maintenance reduce total cost of ownership.

Tags:

hydraulic demolition hammer

backhoe breaker

hydraulic breaker attachment

Products Details

Home > Products >

Hydraulic Breaker Hammer

HB20G Open Type Hydraulic Breaker Rock Breaker for 18-25 Tons Excavator With 135mm Chisel

All Category

Hydraulic Hammer

Hydraulic Breaker

Hydraulic Breaker Hammer

Excavator Breaker

Fully Hydraulic Breaker

Hydraulic Breaker Spare Parts

Excavator Quick Hitch

Excavator Hydraulic Shear

Hydraulic Grapple

Excavator Pulverizer

Excavator Screening Bucket

HB20G Open Type Hydraulic Breaker Rock Breaker for 18-25 Tons Excavator With 135mm Chisel

Brand Name:	SEWOOMIC
Model Number:	HB20G
MOQ:	1
Price:	Negotiable
Packaging Details:	Wooden Box
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SEWOOMIC

Certification:

CE / ISO9001

Model Number:

HB20G

Suitable Excavator:

18-25 Tons

Operating Weight:

1766 Kg

Required Oil Flow:

125-160 L/min

Setting Pressure:

210-230 Bar

Operating Pressure:

160-180 Bar

Impact Energy:

3692 Joule

Impact Rate:

350-600 Bpm

Hose Diameter:

1 Inch

Noise Level:

120 DB

Tool Diameter:

135 Mm

Warranty:

1 Year

Minimum Order Quantity:

Price:

Negotiable

Packaging Details:

Wooden Box

Delivery Time:

20-25days

Payment Terms:

T/T,L/C

Supply Ability:

100 pcs/month

Product Description

HB20G Open Type Nitrogen Hydraulic Breaker – Professional-Grade Demolition Power for 18–25 Ton Excavators

Company Overview: Guchuan Machinery Co., Ltd.

Our product portfolio covers a full range of hydraulic breakers from mini to ultra-heavy-duty models, including:

MS550/GHB120, MS600/GHB130, MS700/GHB140, MS800/GHB160;

HB15G/GCB180, HB20G/GCB200, HB30G/GCB300, HB40G/GCB330;

MB1500/NB1500.

We also produce customized ultra-heavy-duty hydraulic breakers with tool diameters of 175mm, 195mm, 200mm, 205mm, and 210mm for large-scale mining, quarrying, and heavy infrastructure projects.

Product Introduction: HB20G Open Type Nitrogen Hydraulic Breaker

Parameter

Light Weight Range Hydraulic Breaker
Model No.	Chisel Diameter (mm)	Excavator Weight (ton)	Body Weight (kg)	Working Flow Rate (L/min)	Working Pressure (Bar)	Impact Rate (bpm)
SB10/GCB40	40	0.8-2.5	73	15-30	90-120	800-1400
SB20/GCB45	45	1.2-3.0	100	20-40	90-120	700-1200
SB30/GCB50	53	2.5-4.5	120	20-50	90-120	500-900
SB40/GCB60	68	4.0-7.0	298	40-70	110-140	400-800
Medium Weight Range Hydraulic Breaker
SB43/GCB75	75	6.0-9.0	375	50-90	120-150	400-800
SB50/GCB100	100	11-16	890	80-110	150-170	350-700
SB81/GCB22O	140	18-26	1754	120-180	160-180	350-500
SB81A/GCB220	140	18-26	1773	120-180	160-180	350-500
HB20G/GCB200	135	18-25	1680	125-150	160-180	400-800
Large Weight Range Hydraulic Breaker
SB121/GCB320	155	28-35	2555	180-240	160-180	300-450
SB131/GCB350	165	35-43	3065	200-260	160-180	250-400
HB30G/GCB300	150	25-30	2305	160-190	160-180	350-700
GCB500	195	50-60	5350	245-290	230-250	100-150
GCB650	210	65-100	7200	290-340	250-270	90-130

Working Principle & Advanced Technical Features

The HB20G adopts an advanced nitrogen-hydraulic composite power system, which is the core technology that sets it apart from standard hydraulic breakers.

1. Nitrogen Energy Storage & Recovery System

2. Open Type Frame Structure

3. Optimized Hydraulic Control System

4. High-Strength Alloy Steel Components

5. Anti-Blank Firing & Overload Protection

6. Easy Maintenance & Long Service Life

The modular design simplifies seal replacement, tool changes, and routine inspections. High-quality oil seals and wear parts extend service intervals and reduce downtime.

Core Product Advantages

1. Strong & Stable Breaking Power

2. Open Frame for Durability & Maintenance

The open structure reduces heat buildup, resists mud and dust, and allows quick maintenance. This lowers long-term operating costs and increases uptime.

3. Perfect Compatibility with 18–25 Ton Excavators

It fits all major excavator brands including CAT, Komatsu, Hitachi, Kobelco, Doosan, Hyundai, XCMG, SANY, and LiuGong. Installation and debugging are simple and fast.

4. High Efficiency & Energy Saving

5. Heavy-Duty Reliability

High-strength components, advanced heat treatment, and strict assembly standards ensure stable performance in harsh construction environments.

6. Safe & User-Friendly Design

Anti-blank firing, overload protection, and stable vibration control enhance safety for operators and equipment, especially in urban and confined spaces.

Main Application Fields & Scenarios

The HB20G open type nitrogen hydraulic breaker is widely used in projects requiring high efficiency, reliability, and versatility.

1. Municipal & Public Facility Maintenance

Sidewalk & Road Repair: Breaks concrete sidewalks, curbs, and damaged asphalt for quick patch repairs.
Trench Excavation: Crushes hardened soil and shallow rock for pipeline and cable trenches.
Drainage Construction: Demolishes concrete drainage ditches, pipe wells, and septic tanks; clears hardened blockages.
Urban Landscaping: Breaks old flower beds, retaining walls, and small concrete foundations for street lamps and billboards.

2. Building Renovation & Interior Demolition

Wall Reconstruction: Demolishes non-bearing walls, concrete partitions, and widens door/window openings.
Floor Removal: Breaks bathroom/kitchen floor layers and old terraces without structural damage.
Small Foundation Demolition: Crushes equipment bases, steps, and canopy foundations.
Basement Work: Performs local demolition in confined underground spaces.
Grooving: Cuts precise channels for pipelines with controlled vibration.

3. Landscaping & Farmland Water Conservancy

Rock Breaking: Crushes field boulders and weathered rock for land leveling.
Tree Pit Excavation: Works efficiently in hard soil and soft rock.
Ditch Restoration: Breaks hardened ditch linings and repairs small dams.

4. Traffic & Road Auxiliary Engineering

Highway Maintenance: Crushes guardrail foundations and damaged bridge decks.
Tunnel Repair: Compact size fits narrow tunnel spaces for small-scale repairs.
Railway Maintenance: Clears track bed hardened blocks and repairs drainage ditches.

5. Industrial & Commercial Sites

Factory Floor Renovation: Breaks old workshop concrete floors for replacement or grooving.
Equipment Demolition: Crushes small production line foundations and storage tank bases.

In all these applications, the HB20G delivers high efficiency, stable performance, and reliable operation.

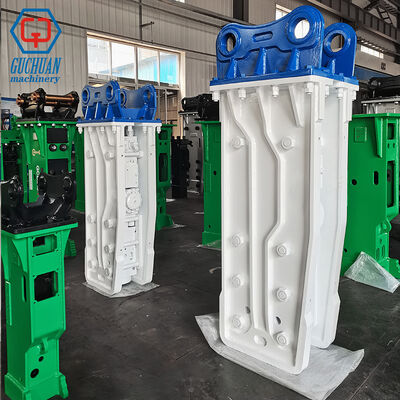

Why Choose Guchuan Machinery HB20G Hydraulic Breaker?

Professional Manufacturer Expertise: Founded in 2010, we focus exclusively on hydraulic breakers with deep industry knowledge.
Full Product Range: We offer one-stop procurement from mini to ultra-heavy-duty models.
Independent R&D Capability: Auto-variable frequency and nitrogen hydraulic technologies ensure superior performance.
Strict Quality Control: High-grade materials, precision machining, and comprehensive testing guarantee reliability.
Global Partnerships: We cooperate with world-famous brands and serve customers in over 60 countries.
Professional B2B Service: Customization, technical support, spare parts supply, and after-sales service.
Cost-Effective Solution: High performance, long service life, and low maintenance reduce total cost of ownership.

Tags:
