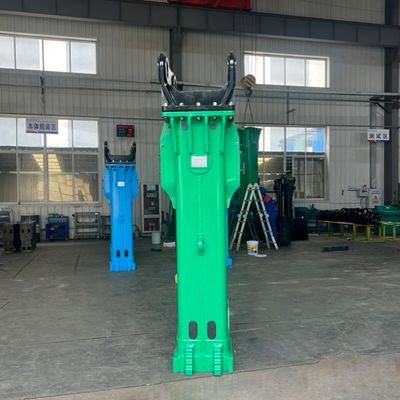

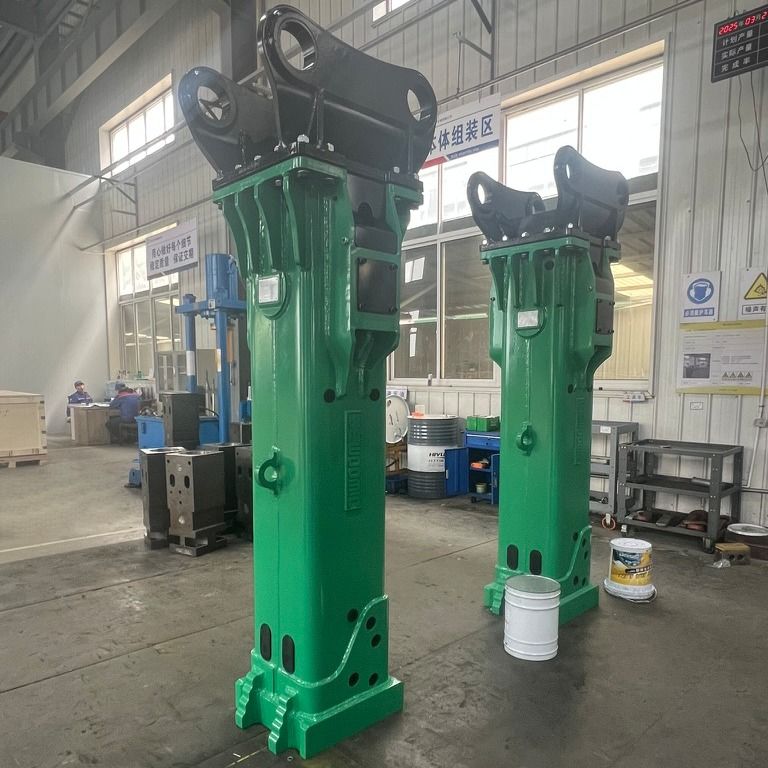

OEM MS700 Full Hydraulic System Breaker Hammer For 25-35 Ton Excavators With 400-500 Bpm Impact Rate

Brand Name:	SEWOOMIC
Model Number:	MS700/GHB230/GHB140
MOQ:	1 piece
Price:	Negotiable
Packaging Details:	Wooden Case
Payment Terms:	L/C,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu, China

Certification:

CE,ISO 9001

Suitable Excavator(ton):

25-35 Ton

Impact Rate:

400-500 Bpm

Required Oil Flow:

170-200 L/min

Working Pressure:

110-140bar

Relief Pressure:

180-200 Bar

Operating Pressure:

130-150 Bar

Accumlator Pressure:

40 Bar

Tool Diameter:

135 MM

Hose Diameter:

1 Inch

Warranty:

1 Year

Supply Ability:

50 unit/month

Highlight:

25-35 Ton Excavator Hydraulic Breaker

400-500 Bpm Impact Rate Hydraulic Hammer

Full Hydraulic System Excavator Breaker

Product Description

Guchuan OEM Construction Mining MS700 Full Hydraulic System Breaker Hammer For Excavators

Construction And Mining Machinery Industry MS700 / GHB230/ GHB140 Box Type Excavator Hydraulic Breaker With Core Components Breaker Hammer Chisel

Product Overview

The MS700 hydraulic breaker is a heavy-duty construction machinery attachment designed for excavators and is suitable for a variety of engineering scenarios. It uses an efficient gas-oil impact system that can significantly increase the impact force while reducing the demand on the main hydraulic system. The device is equipped with a variety of chisel types (such as pointed, flat wedge, blunt and conical) to meet different operating needs. Its side-mounted design reduces the overall length and facilitates operation and maintenance.

Technical Specifications

Small Range Models

Model	Applicable Weight (tons)	Working Weight (kg)	Impact Rate (bpm)	Operating Pressure (bar)	Chisel Diameter (mm)
SB10	0.8-2.5	73	800-1400	90-120	40
SB20	1.2-3	90	700-1200	90-120	45
SB30	2.5-4.5	120	600-1100	90-120	53
SB35	3-5.5	180	500-1000	100-130	60
SB40	4-7	298	500-900	110-140	68
SB43	6-9	380	400-800	120-150	75
R75	6-9	410	520-1000	110-130	75
SB45	7-14	510	400-800	130-160	85
SB50	11-16	890	350-700	150-170	100
SB60	15-18	1303	350-650	150-170	125

Medium Range Models

Model	Applicable Weight (tons)	Working Weight (kg)	Impact Rate (bpm)	Operating Pressure (bar)	Chisel Diameter (mm)
HB15G	15-18	133	350-650	150-170	120
HB20G	18-25	1680	400-800	160-180	135
SB70	16-21	1544	350-600	160-180	135
NB500	18-26	1500	400-800	160-180	135
SB81	18-26	1830	350-500	160-180	140

Large Range Models

Model	Applicable Weight (tons)	Working Weight (kg)	Impact Rate (bpm)	Operating Pressure (bar)	Chisel Diameter (mm)
HB30G	25-30	2305	350-700	160-180	150
SB121	28-35	2781	300-450	160-180	155
HB40G	35-43	2781	250-400	160-180	160
SB131	35-43	2996	250-400	160-180	165
SB151	40-50	3833	200-350	160-180	175

Application Fields

The MS700 / GHB230 hydraulic breaker is widely used in the following fields:

Mining: mining, rock crushing, secondary crushing
Infrastructure construction: tunnel excavation, roadbed compaction, and bridge demolition for railways and highways
Municipal engineering: concrete crushing, water, electricity, and gas engineering, and old urban area reconstruction
Building demolition: demolition of old buildings, crushing of reinforced concrete
Others: ice breaking, frozen soil crushing, and rust removal of hulls

Product Advantages

Efficient impact system: Adopts an efficient gas-oil impact system to increase the impact force while reducing the demand on the excavator's hydraulic system
Low maintenance cost: The design is simple, contains only two moving parts, and has low maintenance costs
Strong compatibility: Suitable for a variety of excavators, suitable for 25-35 tons of excavators
Shock and noise reduction: The shock-absorbing shell design is adopted to reduce noise and reduce the transmission of vibration to the host
Strong durability: High-quality steel and professional heat treatment technology are used to ensure the durability and stability of the equipment
Customized service: The appearance color, logo and brand can be customized according to customer needs

With its powerful functions and excellent performance, the MS700 / GHB230 hydraulic breaker has become an indispensable and efficient tool in the construction and mining fields.

Chisel Selection Guide

Product Structure

Through Bolt: Four bolts which connect the back head cylinder & front head
Back Head: The main function is to store nitrogen
Reversing Valve: Control the piston to move up and down at specified frequency
Cylinder: Here is the heart of the breaker, including the hydraulic circulation system to control the piston reciprocation
Piston: Transform the hydraulic power into strike power, punch the chisel to break
Front Head: The function is to support the cylinder and fix the chisel, to avoid the shaking force break the cylinder when operating
Chisel: Chisel is specially strengthened for wearing

Our Innovations

We can supply full hydraulic breakers of MB1500 and MSB250 for years. Currently we are developing new types hydraulic breakers and will come out in 2024.

Our Services

Pre-sale Services

Provide custom design service for client
Design and manufacture according to special requirement of client
Provide personnel technical training for clients

Medium-sales Service

Provide best forwarder option in cheap shipping seacost ahead of loading
Provide material/heat treatment/inspection report before loading

After-sales Services

Assist clients to prepare for the construction scheme
Provide install and debug equipment online service
Provide training for front-line workers from clients

OEM & ODM

We supply our GOOCHANCE brand hydraulic breakers, besides these, we also support OEM & ODM service.

Warranty

All our hydraulic breakers 12-18 months and spare parts 6 months.

Our Team

Team we have 4 girls to run and we can communicate in English/Japanese/Mexico smoothly.

Our Promise

We will be your reliable partner in construction machinery industry.

Frequently Asked Questions

Q: Are you a manufacturer?

A: Yes, our factory was established in 2010

Q: Are you sure your product will fit my excavator?

A: Our hydraulic breakers are suitable for most excavator. Show us your excavator model, we'll confirm the solution.

Q: How about your products warranty?

A: 12 months warranty for hydraulic breakers and 6 months for spare parts

Q: Can you produce according to customer's design?

A: Sure, OEM & ODM service available. We are professional manufacturer in Jiangsu.

Q: What's the MoQ and payment terms?

A: MOQ of hydraulic breaker is 1 set. Payment via T/T, Western Union accepted, our terms can be negotiated.

Q: How about delivery term?

A: 5-25 working days after payment

Q: How about the package?

A: Our hydraulic breakers wrapped by stretch film, packed by pallet or polywood case, or as requested

Q: Which country have you exported?

A: Saudi Arabia, Korea, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc
