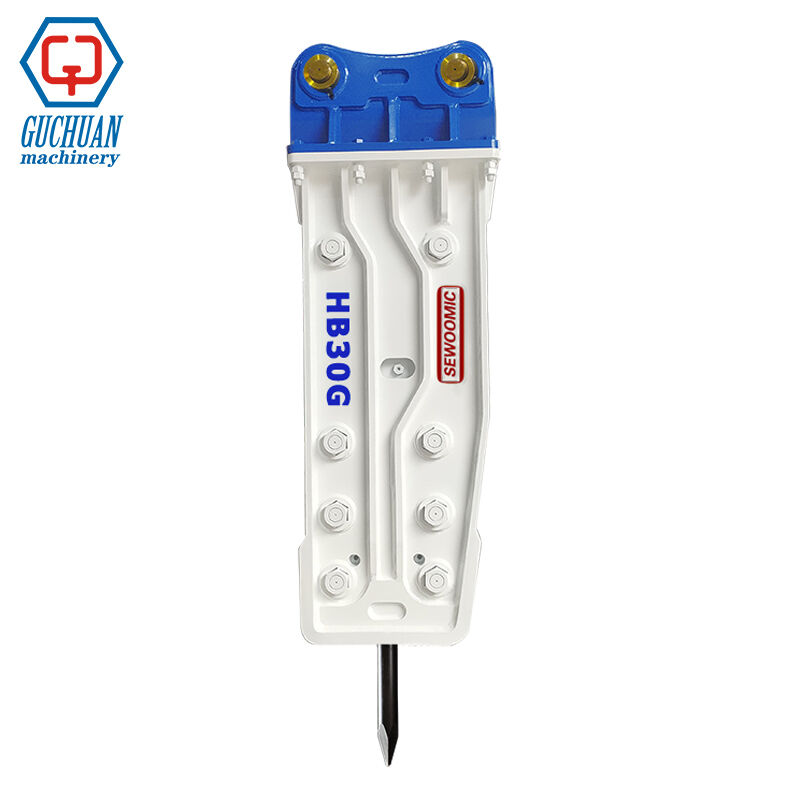

Open Type HB30G Hydraulic Breaker with 5193J Impact Energy and 150 mm Chisel for 25-35 Tons Excavator

Brand Name:	SEWOOMIC
Model Number:	HB30G / GCB300
MOQ:	1
Price:	Negotiable
Packaging Details:	Wooden Box
Payment Terms:	L/C,T/T,Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE ISO

Impact Rate:

300-450

Working Flow:

175-220 L/min

Operating Pressure:

160-180 Bar

Applicable Industries:

Construction/demolition Machinery

Warranty:

1 Year

Suitable Excavator:

25-35 Ton

Operating Weight:

2519kg

Impact Energy:

5193J

Hose Diameter:

1Inch

Noise Level:

120 DB

Tool Diameter:

150 Mm

Supply Ability:

100units/month

Highlight:

5193J Impact Energy Hydraulic Breaker

150 mm Chisel Hydraulic Hammer

25-35 Tons Excavator Jack Hammer

Product Description

Guchuan Open Type HB30G Hydraulic Breaker with 150 mm Chisel for 25-35 Tons Excavator

Maximize efficiency with the Guchuan HB30G hydraulic breaker. Delivering 5193 J impact energy for 25-35 ton excavators. Expertly engineered for heavy-duty demolition, quarrying, and rock breaking.

Technical Specifications

Model No.	Chisel Diameter (mm)	Excavator Weight (ton)	Body Weight (kg)	Working Flow Rate (L/min)	Working Pressure (Bar)	Impact Rate (bpm)
HB30G/GCB300	150	25-30	2305	160-190	160-180	350-700

Application Scenarios

Primary Rock Breaking: Efficiently fracturing large boulders and bedrock in quarries
Heavy-Duty Demolition: Breaking down thick concrete foundations, bridge piers, and reinforced structures
Trench Rock Excavation: Clearing obstructive rock layers for pipeline and utility installation
Mining & Tunneling: Secondary reduction of oversized materials and shaping tunnel profiles

Core Technology Features

Advanced Open-Type Design

Our open-type structure prevents nitrogen and oil chamber contamination, ensuring enhanced heat dissipation, simplified maintenance, and proven durability for high-intensity continuous operation.

Auto-Frequency & Pure Hydraulic Impact Technology

Features self-developed automatic frequency control that adjusts impact rate (350-600 BPM) based on material hardness. Pure hydraulic system provides consistent, controllable power with lower operating pressure demands.

Carrier-Optimized Performance

Precision-matched flow (160-190 L/min) and pressure (160-180 Bar) for 25-35 ton excavators, ensuring maximum power without overloading hydraulic systems.

Key Advantages

Superior Impact Energy: 5193 Joules for top-tier breaking force
Exceptional Reliability: High-strength, heat-treated steel construction for long service life
Higher Cost-Efficiency: Lower maintenance requirements and reduced downtime
User & Environment Friendly: Controlled noise levels and minimized vibration
Global Standard Compatibility: Easy mounting on all major 25-35 ton excavator brands
