GCS09 Double Cylinder Hydraulic Shear for 6-9T Excavators: Precision Cutting Power for Demolition & Scrap Processing

Meta Description: High-performance GCS09 double cylinder hydraulic shear for 6-9T excavators. 500mm opening, 400mm blade length, 180Bar pressure. Ideal for demolition, scrap, and material processing. Durable, efficient, and reliable.

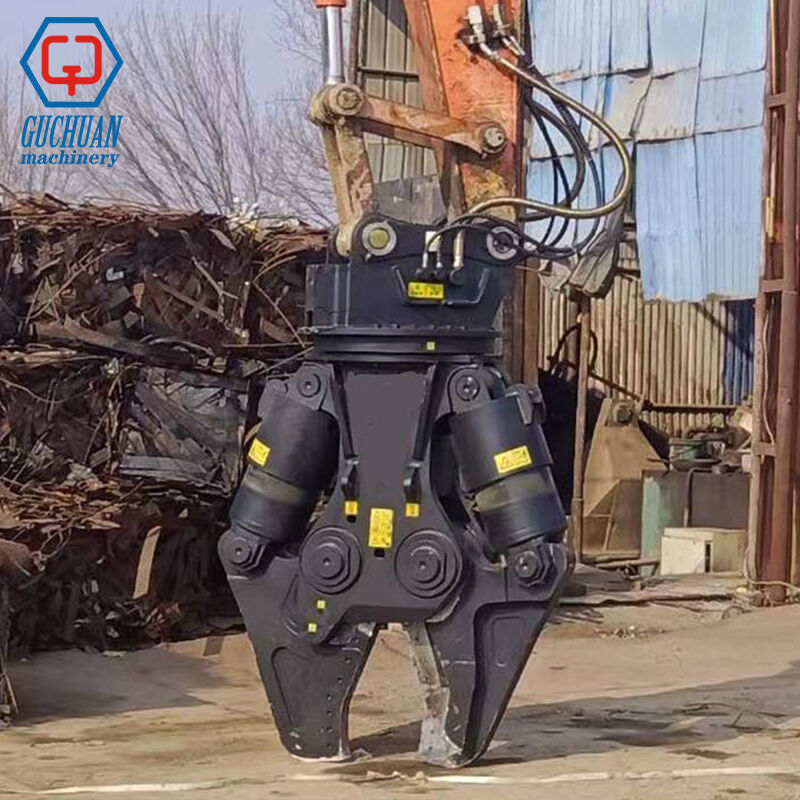

Product Overview: GCS09 Double Cylinder Hydraulic Shear

The GCS09 is engineered for precision and power in demanding cutting applications. Its dual-cylinder design ensures superior force distribution and cutting stability, making it an indispensable tool for material processing, industrial demolition, and scrap handling. Built to integrate seamlessly with 6-9T excavators, the GCS09 transforms your machine into a multi-functional powerhouse.

Key Specifications:

• Model: GCS09 Double Cylinder Hydraulic Shear

• Compatible Excavator Weight: 6-9 Tons

• Opening (Jaw): 500 mm

• Blade Length: 400 mm

• Overall Height: 1360 mm

• Overall Width: 810 mm

• Rated System Pressure: 180 Bar

• Required Oil Flow: 180 lpm

Design & Technical Features

1. Dual-Cylinder Actuation System: Two synchronized hydraulic cylinders deliver immense, evenly distributed cutting force. This design minimizes stress concentrations, enhances blade alignment for cleaner cuts, and significantly extends the attachment's service life compared to single-cylinder models.

2. Optimized Geometry: With a 500mm jaw opening and 400mm blade length, the GCS09 is perfectly sized for its carrier class. It efficiently handles a wide range of materials, from steel beams and rebar to pipes and demolition debris.

3. High-Grade Construction: Fabricated from high-tensile, abrasion-resistant steel alloys and fitted with hardened, replaceable blade tips. Critical components undergo precision machining and heat treatment to withstand shock loads and repetitive stress.

4. Efficient Hydraulic Integration: Designed to operate at a standard 180 Bar pressure with a flow requirement of 180 lpm, ensuring optimal performance from standard 6-9T excavator hydraulic systems without requiring extensive modifications.

Core Applications

The GCS09 is versatile for numerous sectors:

• Demolition: Cleanly cuts structural steel, concrete reinforcement, and pipes during building takedowns.

• Scrap & Recycling: Processes automobiles, appliances, and industrial scrap into manageable sizes for sorting and melting.

• Material Processing: Cuts long beams, rods, and other metals in fabrication yards and salvage operations.

• Infrastructure Decommissioning: Ideal for cutting bridges, railings, and other metal structures.



  Parameter

  Model No.	Excavat Weight (ton)	Weigt (Kg)	Jaw Opening (mm)	Blade Length (mm)	Rated Pressure (Bar)	Rated Flow(lpm)
  GCS09	6-9	500	500	400	180	180
  GCS18	12-18	1640	600	500	230	240
  GCS30	20-30	2850	850	670	260	300
  GCS40	≥30	3300	850	670	380	300

  Customer-Centric Advantages & Benefits

  • Enhanced Productivity: Complete cutting cycles faster with powerful, consistent force, allowing you to process more material per shift.

  • Exceptional Durability & Lower TCO: Robust construction and replaceable wear parts reduce downtime and maintenance costs, leading to a lower total cost of ownership.

  • Operator Safety & Control: The stable, controlled cutting action minimizes material splintering and sudden bursts of energy, creating a safer work environment.

  • Maximized Machine ROI: Turns your standard 6-9T excavator into a versatile processing tool, eliminating the need for multiple single-function attachments.

  • Guaranteed Compatibility: Precisely engineered to match the weight, hydraulic capacity, and geometry of 6-9 ton excavators for balanced operation and no risk of overloading.

  Why Partner with Guchuan Machinery?

  • Over a Decade of Expertise: Since 2010, we have focused on engineering high-quality, reliable machinery components and attachments.

  • B2B Specialist: We understand the needs of businesses and dealers, offering robust products, reliable supply, and professional support for cross-border trade.

  • Quality Commitment: From design to delivery, our process is governed by stringent quality control to ensure every product meets international performance standards.

  • Complete Product Range: In addition to the GCS series, we offer a full line of hydraulic breakers (like the HB/GCB & SB series) and other attachments to equip your fleet comprehensively.

    ---

    Company Profile

    Jiangsu Guchuan Machinery Co., Ltd. is a leading manufacturer based in Changzhou, Jiangsu Province, China. Established in 2010, our company occupies over 18,000 square meters and employs more than 120 skilled professionals. We specialize in the research, development, manufacturing, sales, and service of hydraulic breaker hammers and other Construction Attachments, offering comprehensive solutions for the construction and demolition industries.
