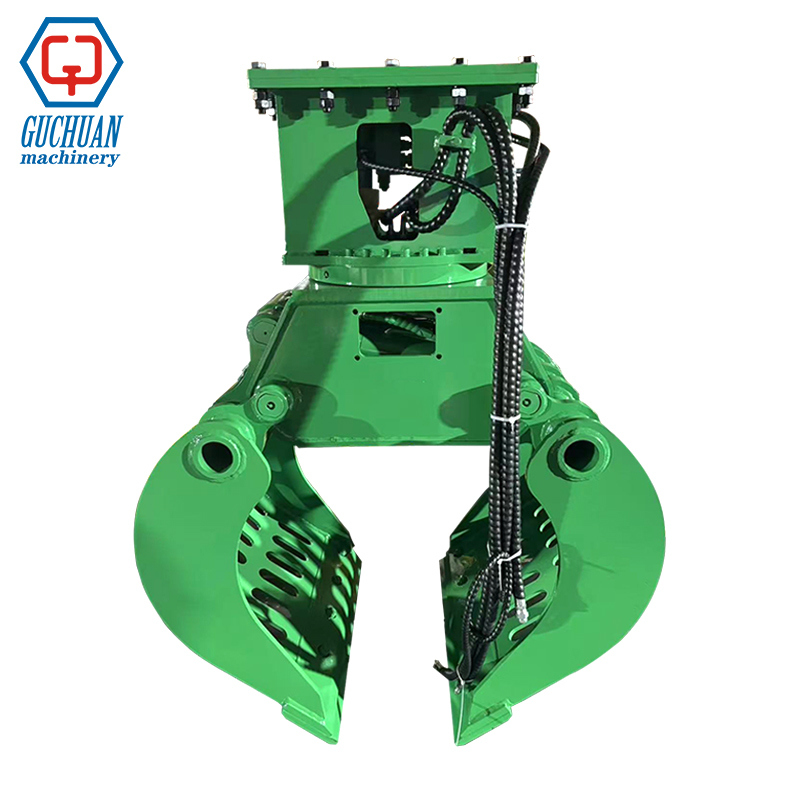

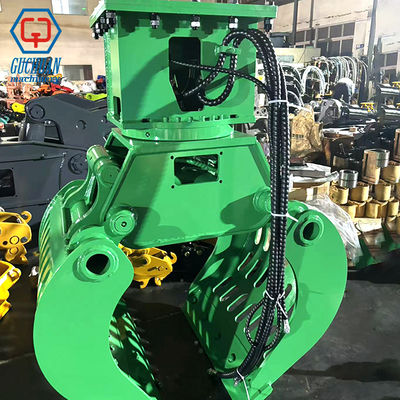

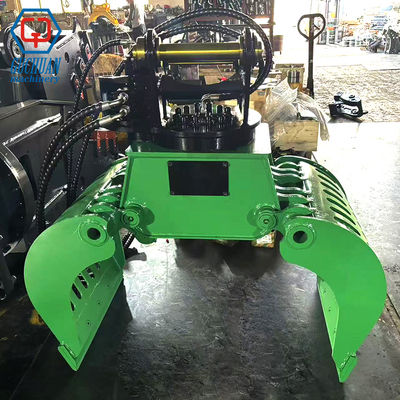

  Demolition Grapple: The Ultimate Tool for Selective Demolition & Material Sorting

  Guchuan Machinery, a leading Chinese manufacturer of premium engineering machinery attachments since 2010, presents our robust Demolition Grapple. Engineered for maximum efficiency and durability in the most demanding environments, this grapple is the ideal partner for demolition contractors, waste management facilities, and recycling yards.Our grapple is designed as a versatile, multi-purpose tool for excavators from 1 to 37 tons, offering unparalleled performance in selective demolition, material sorting, and scrap handling.









  Model	GCG-MINI	GCG-01	GCG-02	GCG-04	RCG-06	RCG-08	RCG-10	RCG-14	RCG-17
  Carrier (Ton)	1-2.5	2.5-4.5	4-6	6-10	10-15	16-22	23-26	27-30	31-37
  Cylinder (Bar)	250	250	300	350	350	350	350	350	350
  Cylinder (Liters/min)	6-13	8-15	10-20	15-30	30-65	40-80	55-110	55-110	95-165
  Cylinder (Safety valve)	N	N	N	N	Y	Y	Y	Y	Y
  360° Rotation (Bar)	250	100	100	100	140	140	140	140	140
  360° Rotation (Liters/min)	4-6	6-9	8-12	8-12	12-20	12-20	14-20	14-20	28-40
  360° Rotation (Tr/min)	10/15	10/15	10/15	10/15	10/15	10/15	10/15	10/15	10/15
  Force (N)	10000	12000	19000	25000	40000	50000	60000	62000	93000
  A (mm)	750	1090	1180	1290	1710	1845	2000	2100	2270
  B (mm)	570	770	850	960	1245	1375	1440	1465	1630
  C (mm)	720	770	840	910	905	1000	1050	1190	1275
  D (mm)	730	760	850	930	1080	1100	1290	1375	1425
  L (mm)	330	400	460	550	800	900	1010	1130	1210
  Volume (L)	50	77	105	147	395	470	700	820	1080
  Weight (Kg)	180	210	260	370	745	950	1230	1500	2100

  Primary Applications & Versatility

  Searching for a reliable demolition grapple for excavatoror a grapple for sorting and recycling? This tool is your answer. Its primary uses include:

  · •Selective Demolition:Perfect for primary stripping and precise tear-down of structures.

  · •Material Sorting & Recycling:Efficiently separate and sort concrete, metal, wood, and C&D waste at transfer stations.

  · •Scrap Handling & Material Reclamation:Expertly handle and load scrap metal, industrial waste, and bulk materials.

  · •Landfill and Green Waste Management:Ideal for handling logs, green waste, and general skip clearance.

  Unmatched Technical Features & Engineering Excellence

  1. Unlimited 360° Continuous Hydraulic Rotation

  The grapple features a high-torque, unlimited 360° hydraulic rotation motor from Parker, a global leader in motion and control technologies. This allows for precise positioning of the grapple jaws without moving the excavator’s boom, significantly enhancing operational efficiency and safety in confined spaces. This is a key feature for a rotating demolition grapple.

  2. Superior Durability with HARDOX 450/NM400 Steel

  We understand that wear and tear are your biggest concerns. That’s why the main structure is constructed from abrasion-resistant steel HARDOX 450 or NM400. This ensures exceptional impact strength and extended service life, reducing downtime and total cost of ownership.

  3. Reversible & Changeable Wear Blades

  To further combat wear in high-abrasion applications, the grapple is equipped with reversible and changeable wear blades. Once one edge is worn, simply flip or replace the blades, drastically cutting maintenance costs and extending the grapple's operational life.

  4. Customizable Shells for Specific Tasks

  We offer several sets of shellstailored for different applications (recycling, demolition, handling). Whether you need a rock grapple, scrap grapple, or a sorting grapple, the attachment can be customized to your exact project requirements, maximizing versatility and grip efficiency.

  5. Robust Hydraulic System & Safety

  · •Fully Guarded Cylinders:The high-pressure hydraulic cylinders are fully protected against impact and debris, ensuring reliability.

  · •Optional Lock Valve:An optional opening/closing lock valveprevents accidental movement of the grapple jaws, enhancing worksite safety, especially when carrying loads over sensitive areas.

  6. Easy Mounting & Compatibility

  The bolt-on mounting bracketis designed for quick and easy attachment to your machine. It offers multi-option compatibility with MS/CW seriesand other quick coupler systems, ensuring a perfect fit for your excavator.

  Why Choose Guchuan Machinery’s Demolition Grapple?

  · •Proven Quality:As a specialist in B2B cross-border trade, we maintain stringent quality control from raw material to finished product.

  · •Technical Superiority:Features like the Parker rotation motor and HARDOX steel construction place our grapple among the top tier of attachments available globally.

  · •Cost-Effective:The combination of durable materials, reversible blades, and low-maintenance design provides an excellent return on investment.

  · •Customizable Solutions:We work directly with you to configure the perfect grapple for your specific needs.

  Find Your Perfect Demolition Grapple Today

  As a trusted excavator grapple attachment supplier, Guchuan Machinery is committed to providing high-performance solutions that boost your productivity and profitability.Ready to enhance your demolition and sorting operations?Contact us today for a quote, technical specifications, or to discuss a custom configuration for your excavator.
