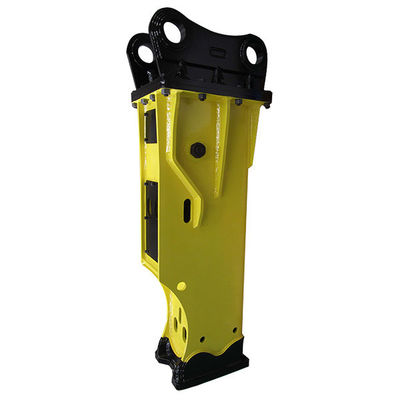

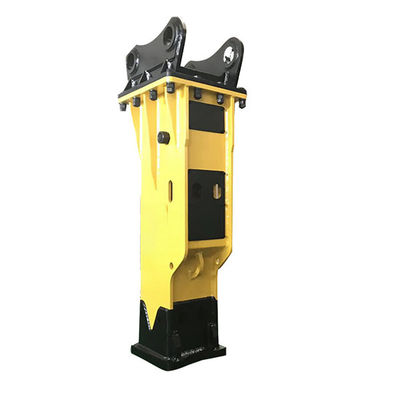

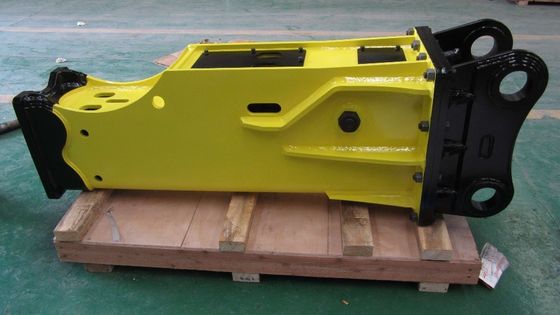

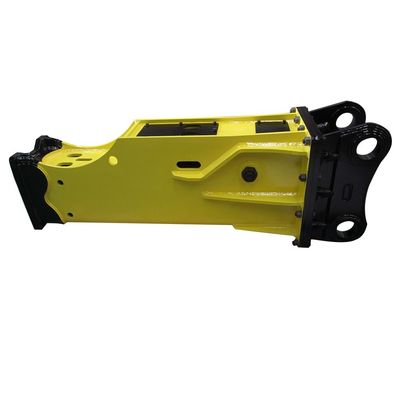

4-7 Ton Rock Drill Excavator Hydraulic Breaker Hammer With 68mm Chisel Diameter In Silenced-Box Type

Description

The 4-7 Ton Rock Drill Excavator Hydraulic Breaker Hammer with a 68mm chisel diameter is a powerful and efficient tool designed for mini excavators. This hydraulic breaker is ideal for road construction, demolition, and rock breaking applications. It features a silenced-box type design, which significantly reduces noise levels while maintaining high performance.

Key Features

1. Silenced-Box Design:

• Reduces noise levels, making it suitable for urban construction sites.
• The fully enclosed box protects the main body from damage.

2. High Impact Force:

• Delivers powerful impacts with an impact rate of 500-900 bpm, making it highly effective for breaking rocks and concrete.

3. Operating Pressure:

• Operates at a pressure range of 110-140 kg/cm² (160-180 bar), ensuring compatibility with excavators weighing 4-7 tons.

4. Chisel Diameter:

• Equipped with a 68mm chisel diameter, providing robust performance for heavy-duty tasks.

Benefits

1. High Efficiency: Powerful impact force and optimized hydraulic system ensure faster breaking.
2. Durability: High-quality materials and advanced manufacturing processes reduce wear and tear.
3. Versatility: Suitable for various applications, making it a valuable addition to any construction fleet.
4. Environmental Compliance: Silenced-box type reduces noise pollution.

The 4-7 Ton Rock Drill Excavator Hydraulic Breaker Hammer with a 68mm chisel diameter is a reliable and efficient tool for mini excavators, designed to meet the demanding needs of modern construction and demolition projects.

Parameter

SEWOOMIC Hydraulic Breaker 3 major types:
>>>Side Type: Versatile application including rock broken, paving road, building demolition etc.

Side Type Features:

1.Overall length shorter.

2.Hook back things conveniently.

3.Maintenance-free.

>>>Top Type: Applied to special operation that in large elevation angle.

Top Type Features:

1.Easy to locate and control;

2.More conducive to excavator;

3.Weight lighter,the lower risk of broken drill rode

>>> Box/Silenced Type: Low noise, saving energy and protecting environment.

Box/Silenced Type Features:

1.Reduce noise to protect the environment.

2.Full-closed bracket protects the main body from damage.

3.Enhanced performance,productivity and durability.

Advantages Of Goochance Hydraulic Breaker
▶ Powerful Performance
Goochance hydraulic breaker became Lighter,Stronger and More Powerful than ever.

▶ Adjustable Frequency
Goochance hydraulic breaker intelligently selects the most economical striking frequency,improves production efficiency,does not waste energy and ensures the best power recovery of the next blow,and can cope with various working conditions.
▶ Easy to Maintenance
Everything has been carefully designed and maintenance is no longer a chore.

▶ Easy Operation
Goochance hydraulic breaker allows the operator to focus on the operation monitoring hydraulic parameters or power settings.
▶ Engineering and Innovation
From machining to final assembly,Goochance hydraulic breaker are manufactured with world-class technology,top raw materials and best steel to provide the highest quality and reliability.

▶ Optimal Greasing Systems
Goochance hydraulic breaker provides greasing device so the breaker always get more optimal grease supply.

Product Structure

• Through Bolt

Four bolts which connect the back head cylinder & front head.

• Back Head

The main function is to store nitrogen.

• Reversing Valve

Control the piston to move up and down at specified frequency.

• Cylinder

Here is the heart of the breaker, including the hydaulic circulation system to control the piston reciprocation.

• Piston

Transform the hydaraulic power into strike power,punch the chicel to break.

• Fronft Head

The function is to support the cylinder and fix the chicel,to avoid the shaking force break the cylinder when operating.

• Chisel

Chisel is specially strengthened for wearing

Our innovations
we can supply full hydraulic breakers of MB1500 and MSB250 foryears.

Currently we are developing new types hydraulicbreakers and will come out in 2024.

OEM & ODM
We offer our brand of hydraulic breakers in addition to these, we also support OEM and ODM service.

OUR TEAM
Team Alibaba we have 4 girls to run and we can communicate fluently in English/Japanese/Mexico

WARRANTY
12-18 months on all our hydraulic breakers and 6 months on spare parts

OUR COMMITMENT
We will be your reliable partner in the construction machinery industry.

Our Service

• Pre-sale services:

1.Provide custom design service for client

2. Design and manufacture according to special requirement of client

3. Provide personnel technical traning for clients

• Medium-sales service:

1.Provide best forwarder option in cheap shipping seacost ahead of loading

2. Provide material/heat treatment/inspection report before loading

• After-sales services:

1.Assist clients to prepare for the construction scheme

2.Provide install and debug equipment online service
3.Provide traning for front-line workers from clients

OEM&ODM
We supply our GOOCHANCE brand hydraulic breakers, besides these, we also support OEM & ODM service

Warranty
All our hydraulic breakers 12-18 months and spare parts 6 months.

Our Team
We have 4 girls to run and we can communicate in English/Japanese/Mexico smoothly.

Our promise
We will be your reliable partner in construction machinery industry.

FAQ

Q:Are you a manufacturer ?
A: Yes, our factory was established in 2010
Q: Are you sure your product will fit my excavator?
A. Our hydraulic breakers are suitable for most excavator. Show us your excavator model, we'l confirm the solution.
Q:How about your products warranty?
A: 12 months warranty for hydraulic breakers and 6 months for spare parts
Q: Can you produce according to customer's design?
A.Sure, OEM & ODM service available. We are professional manufacturer in Jiangsu.
Q: What's the MoQ and payment terms?
A: MOQ of hydraulic breaker is 1 set. Payment via T/T, Western Union accepted, our terms can be negotiated.
Q: How about delivery term ?
A: 5-25 working days after payment

Q: How about the package?
A: Our hydraulic breakers wrapped by stretch film, packed by pallet or polywood case, or as requested
Q:Which country have you exported?
A: Saudi Arabia, Korea, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc
