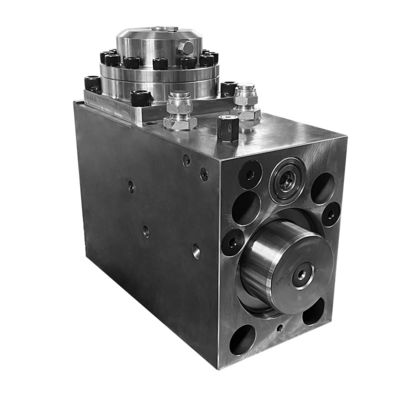

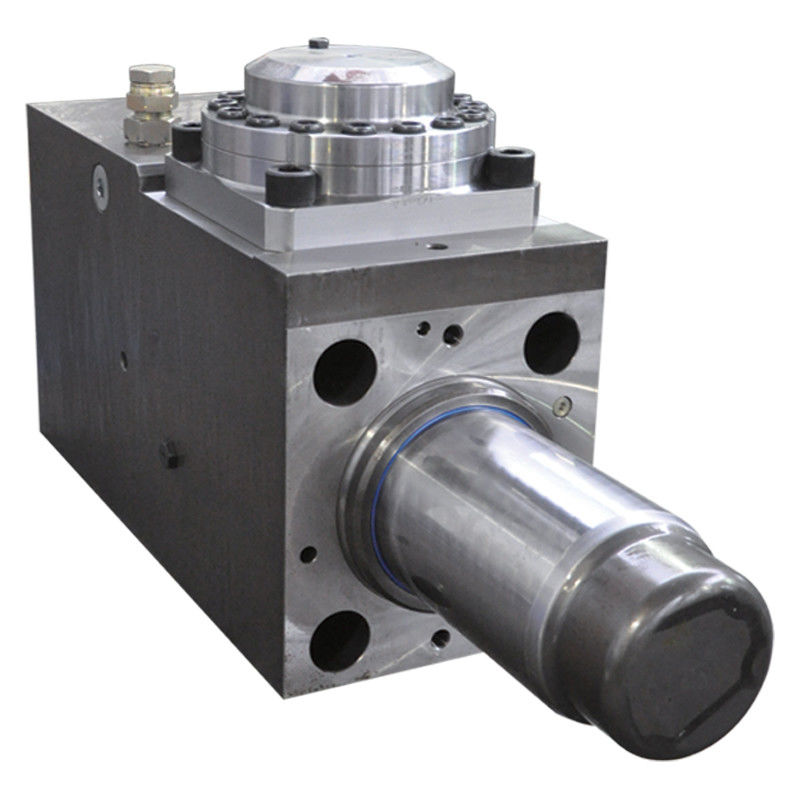

Industrial Backhoe Hydraulic Breaker Cylinder Key Components For Mining

Product Introduction

Hydraulic breaker cylinders are essential components in construction and mining machinery, providing the necessary power and durability to break through tough materials like rocks and concrete. These cylinders are designed to withstand high pressures and frequent impacts, making them ideal for heavy-duty applications in mining and construction.

Parameter

Key Features

1. Cylinder Barrel and Piston Rod:
   • The cylinder barrel houses the piston rod and is responsible for converting hydraulic energy into mechanical energy. It is typically made from high-strength steel or alloy steel to withstand high pressures and impacts.
   • The piston rod moves back and forth within the barrel, delivering the percussive force required to break materials.
2. Piston:
   • The piston is attached to the piston rod and is driven by hydraulic pressure. It is designed to withstand high-frequency impacts and is often made from materials like 42CrMo alloy steel, which offers excellent wear resistance and toughness.
3. Control Valve:
   • This component regulates the flow of hydraulic fluid into the cylinder, controlling the speed and force of the piston. It allows operators to adjust the impact power according to the specific requirements of the job.

Applications

• Mining: Hydraulic breaker cylinders are used in underground and open-pit mining operations to break rocks and minerals. They are essential for excavators, backhoes, and other heavy machinery.
• Construction: These cylinders are widely used in demolition, road construction, and excavation projects to break through concrete, asphalt, and rocks.

Delivery Time


We guarantee a delivery time of 15-25 days from the date of payment, ensuring that you receive your coupler promptly and can start benefiting from increased efficiency on your construction projects.

Hydraulic Quick Hitch Coupler:
>>>T Type: >>>P Type:
Features:
1.Strong Safety Pin At Accurate
2.High abrasive front tiger mount design
3.Reinforced cylinder with imported oil seals.(Simrit German Brand) Positon.


Why choose us

1. Your one-step manufacturer/exporter for all your contract manufacturing needs for construction equipment parts.
2. 12-mouths Warranty, CE and ISO 9001 Certification.
3. We have worked with Furukawa, Soosan, MSB, Daemo, YHB, Everdigm for 10 years, we are very strong at Asia type Hydraulic Breaker.
4. Our product is 100% tested before delivery.
5. We always take “Quality is our live” as the goal.
6. We aim to exceed our customer’s expectations. Whether your project is large or small, Guchuan commits all our resources to ensure your project meet your expectations.
7. After-sales service is 24 hours online. When necessary, we will visit customer's company to deal with after-sales or customer's complaints.

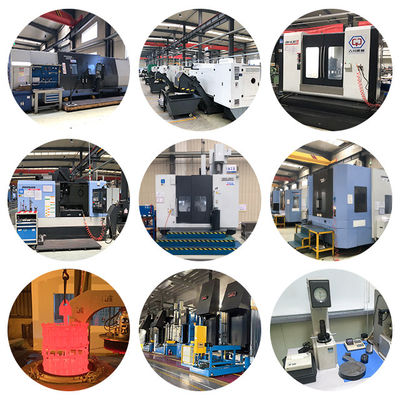

PRODUCTION PROCESS
Through/Side/ Bolt: Material: 42crmo
Bolt has 10.9 Grade and 12.9 Grade Heating processing →Quench→Temper→Surface treatment: natural colour and black coating Mounting Pin: Material: 42crmo
Hardening→Tempering-finish machining→ Mid frequency induction hardening →Outside diameter grinding The depth of quenching is 3MM and the high surface hardness,with high Durability. Special Checked Piston: Material: 20crmo
Thermal treatment use overall carburizing →quenching heat treatment → Processing using high precision checked grinding technology With high surface precision and good fineness . Hydraulic oil can adhere to the piston surface well and forming oil film , with good lubricity and abrasive resistance , to extend the piston’s life , and keep the force of impact . Inner Bush: Material: 42crmo or 20crmo
Forging blank → finish machining → carburizing→ quenching→Fine grinding Product accuracy is high and stand wear and tear. Front Cover: Material: 42crmo or 20crmo
Forging blank→finishing (finish machining) → carburizing heat treatment →assembly surface fine grinding Product is wear-resisting and impact resistance.

FAQ

Q: Are you a manufacturer ?
A: Yes, our factory was established in 2010.
Q: Are you sure your product will fit my excavator?
A: Our hydraulic breakers are suitable for most excavator. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for hydraulic breakers and 6 months for spare parts.
Q: Can you produce according to customer's design?
A: Sure, OEM & ODM service available. We are professional manufacturer in Jiangsu.
Q: What's the MOQ and payment terms?
A: MOQ of hydraulic breaker is 1 set. Payment via T/T, Western Union accepted, our terms can be negotiated.
Q: How about delivery term ?
A: 5-25 working days after payment.
Q: How about the package?
A: Our hydraulic breakers wrapped by stretch film, packed by pallet or polywood case, or as requested.
Q: Which country have you exported?
A: Saudi Arabia, Korea, Thailand, Cyprus, India, Canada, Australia, Peru, Egypt, Brazil, Mexico, South Africa, etc
