The Unseen Heart of Demolition Power

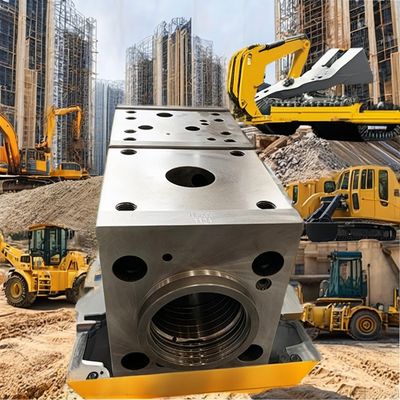

At the core of every high-performance hydraulic breaker lies its defining component: the cylinder. This is not merely a housing; it is the precision chamber where fluid power transforms into devastating impact force. In the demanding world of demolition, mining, and construction, the cylinder's integrity dictates the hammer's lifespan, efficiency, and reliability. At Guchuan Machinery, we engineer this critical component to the pinnacle of material science and thermal processing. Utilizing premium 20CrMo alloy steel, subjected to rigorous CQT (Quenching and Tempering) heat treatment, and finished to an optimal surface hardness of HRC 59-61, we create what is widely regarded as the industry's finest cylinder material specification. This article delves into the engineering excellence behind this core, explaining why it sets a new standard for durability and performance in hydraulic breakers.

Part 1: Introduction to Guchuan Machinery – Precision Engineering from Changzhou, China

Founded in 2010 in the industrial hub of Changzhou, Jiangsu Province, Guchuan Machinery Co., Ltd. has established itself as a trusted force in the global engineering machinery sector. We specialize in the design and manufacture of high-quality hydraulic breakers (hammers), serving a prestigious roster of international OEM partners through our dedicated B2B model.

Our expertise spans a comprehensive range of breaker models, ensuring compatibility with carriers from mini-excavators to the largest mining equipment:

SB/GCB Series: From the compact SB10 / GCB30 to the powerful SB151 / GCB400.

MS Series: Including models like MS550 ,MS600,MS700,MS810

HB/GCB Series: Such as the HB15G-HB40G

Ultra-Heavy-Duty Breakers: Capable of accommodating tool diameters of 175mm, 195mm, 200mm, 205mm, and 210mm for the most challenging applications.

Central to our innovation is the in-house R&D and manufacturing of core components. We don't just assemble breakers; we master the technology within them. Our proprietary automatic frequency conversion and pure hydraulic systems are built around the strongest foundation possible: our advanced cylinder technology.

Part 2: The Hydraulic Breaker Cylinder: Function, Failure, and Critical Demands

2.1 Core Function and Operating Principle

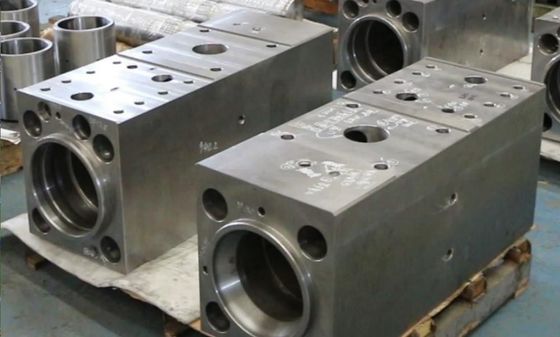

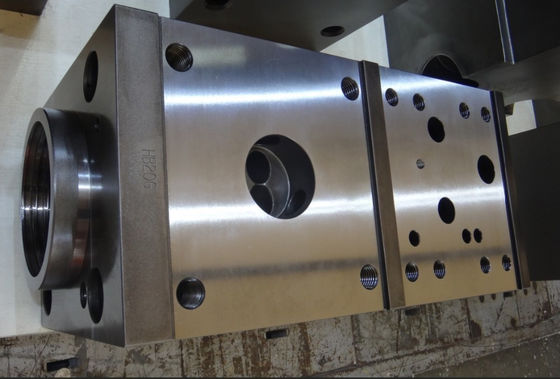

The cylinder acts as the high-pressure guide and chamber for the piston. During operation, hydraulic oil is directed into the cylinder, accelerating the piston downwards to strike the tool (shank). This kinetic energy is then transferred through the tool tip to fracture rock, concrete, or asphalt. The cylinder must withstand millions of these high-impact cycles, constant high-pressure fluid dynamics, and intense internal friction.

2.2 Common Failure Modes and the Cost of Compromise

A substandard cylinder leads to catastrophic and costly downtime. Common failure modes include:

Abrasive Wear & Scoring: Grooves cut into the cylinder bore by contaminated fluid or poor piston guidance, leading to hydraulic oil leakage and pressure loss.

Fatigue Cracking: Cyclic impact stresses can initiate micro-cracks, which propagate until the cylinder wall fails.

Deformation (Belling): The extreme force can permanently distort the cylinder's shape at the impact zone, destroying seal integrity.

Surface Spalling: Flaking or pitting of the hardened surface layer due to inadequate material toughness or heat treatment.

Each failure directly translates to lost productivity, expensive repairs, and high total cost of ownership. This is why the selection of material and heat treatment is not a detail—it is the decisive factor.

2.3 Key Performance Requirements for the Cylinder

To prevent these failures, the cylinder material must achieve a near-perfect balance of properties:

High Core Strength & Toughness: To resist deformation and absorb impact energy without cracking.

Exceptional Surface Hardness: To resist abrasive wear and scoring.

Excellent Fatigue Resistance: To endure millions of stress cycles.

Good Through-Hardening Properties: To ensure consistent performance across the entire component wall.

Part 3: Deep Dive: The 20CrMo CQT HRC 59-61 Advantage

3.1 The Material: Why 20CrMo Alloy Steel is Superior

20CrMo is a chromium-molybdenum low-alloy steel renowned for its strength, hardenability, and toughness—a combination essential for high-stress components.

Chemical Composition & Synergistic Effects:

Carbon (C ~0.20%): Provides the fundamental basis for hardness and strength through martensite formation after quenching.

Chromium (Cr ~1.00%): Enhances hardenability, allowing for a deeper uniformly hardened zone during quenching. It also forms hard carbides that increase wear resistance and improves corrosion resistance.

Molybdenum (Mo ~0.20%): A key alloying element that dramatically increases toughness at high strength levels. It prevents temper brittleness during the heat treatment process and contributes to grain refinement and strength.

Comparison of Key Steel Grades for Breaker Cylinders:

Property 20CrMo (Guchuan Standard) Medium Carbon Steel (e.g., 1045) Result for Breaker Performance

Hardenability Excellent (Deep, uniform hardening) Moderate (Shallow hard case) Consistent hardness profile, resists belling.

Strength-Toughness Balance Optimal Fair (Brittle at high hardness) Resists both cracking (fatigue) and wear.

Fatigue Life Very High Moderate Longer service life, more reliable.

Wear Resistance Superior (Chromium carbides) Good Exceptional resistance to scoring and abrasion.

3.2 The Process: Controlled Quenching and Tempering (CQT)

The potential of 20CrMo is unlocked only through precise Controlled Quenching and Tempering (CQT). This two-stage thermal process is what transforms the raw steel into a super-component.

Quenching: The machined cylinder is heated to a precise austenitizing temperature and then rapidly cooled (quenched) in oil. This process transforms the microstructure into martensite, an extremely hard but brittle phase. For 20CrMo, this results in a very high initial hardness.

Tempering: The quenched part is then reheated to a specific, carefully controlled temperature below its critical point and held. This crucial step relieves internal stresses and allows the martensite to transform into tempered martensite. Tempering sacrifices a small amount of hardness to gain a massive increase in toughness and ductility.

The precision of CQT at Guchuan cannot be overstated. Temperature control, timing, and quenching medium are strictly regulated to achieve the exact mechanical properties required.

3.3 The Result: The Optimal Hardness – HRC 59-61

The final surface hardness of HRC 59-61 (Rockwell Hardness Scale C) is the engineered outcome of our 20CrMo CQT process. This range represents the "sweet spot" for hydraulic breaker cylinders:

Hard Enough: At HRC 59-61, the surface has exceptional resistance to abrasive wear and scoring. It will maintain a smooth bore far longer than a softer material, preserving seal integrity and hydraulic efficiency.

Tough Enough: Thanks to the 20CrMo chemistry and proper tempering, this hardness level retains sufficient ductility and fracture toughness to resist crack initiation and propagation from cyclic impact stresses.

A Balanced Property Profile: Softer cylinders wear out prematurely. Harder cylinders (above ~HRC 62) risk becoming brittle and prone to catastrophic spalling or cracking. Our HRC 59-61 specification is the proven benchmark for maximizing service life.

Part 4: The Guchuan Manufacturing & Quality Assurance Edge

Our commitment to quality extends from material sourcing to final inspection.

Material Traceability: We source certified 20CrMo steel billets, with full material test reports (MTRs) to ensure chemical composition integrity.

Precision Machining: Prior to heat treatment, cylinders are machined on advanced CNC systems, ensuring precise dimensional tolerances and surface finishes.

In-House CQT Treatment: We perform the critical CQT process in our own controlled furnace facilities, allowing for unwavering process consistency and real-time quality monitoring.

Final Honing & Inspection: After heat treatment, the cylinder bore undergoes precision honing to achieve the final, mirror-like finish essential for optimal piston movement and seal life. Each cylinder is inspected for:

Final Hardness (verified via Rockwell testing).

Bore Dimensional Accuracy and Surface Finish.

Microstructure Analysis to confirm proper heat treatment.

Part 5: Conclusion & Technical Partnership Invitation

The cylinder is the heart of the hydraulic breaker. Compromising on its quality compromises the entire machine's value. By specifying 20CrMo material, CQT heat treatment, and a final hardness of HRC 59-61, Guchuan Machinery provides an unparalleled foundation for breaker performance, durability, and total cost-effectiveness.

For OEM partners and industry experts who understand that true reliability is built from the inside out, our cylinder technology represents a strategic advantage. It is the result of over a decade of focused engineering, aimed at solving the fundamental challenges of impact machinery.

Partner with Guchuan Machinery. Let us equip your hydraulic breakers with the industry's most resilient core. Contact our engineering team today to discuss how our cylinder technology and complete breaker solutions can enhance your product line's reputation for unstoppable performance.

Disclaimer: The technical specifications and processes described herein are proprietary to Guchuan Machinery Co., Ltd. and represent our standard for high-grade cylinder manufacturing. Performance is dependent on proper system design, operation, and maintenance. All trademarks and model names are for reference purposes.
