Today, we focus on a critical component that transforms raw power into productive work: the specialized steel chisels for our nitrogen-assisted hydraulic breakers, specifically engineered for the SB60/GCB190, SB70/GCB210, and SB81/GCB220 models. These chisels—with diameters of 125mm, 135mm, and 140mm respectively—are not mere accessories but precision-engineered tools that significantly influence breaker performance, efficiency, and longevity.

Technical Specifications and Model Compatibility

• 125mm Steel Chisel: Engineered exclusively for the SB60/GCB190 hydraulic breaker
• 135mm Steel Chisel: Precision-matched to the SB70/GCB210 model specifications
• 140mm Steel Chisel: Specifically designed for the SB81/GCB220 breaker system

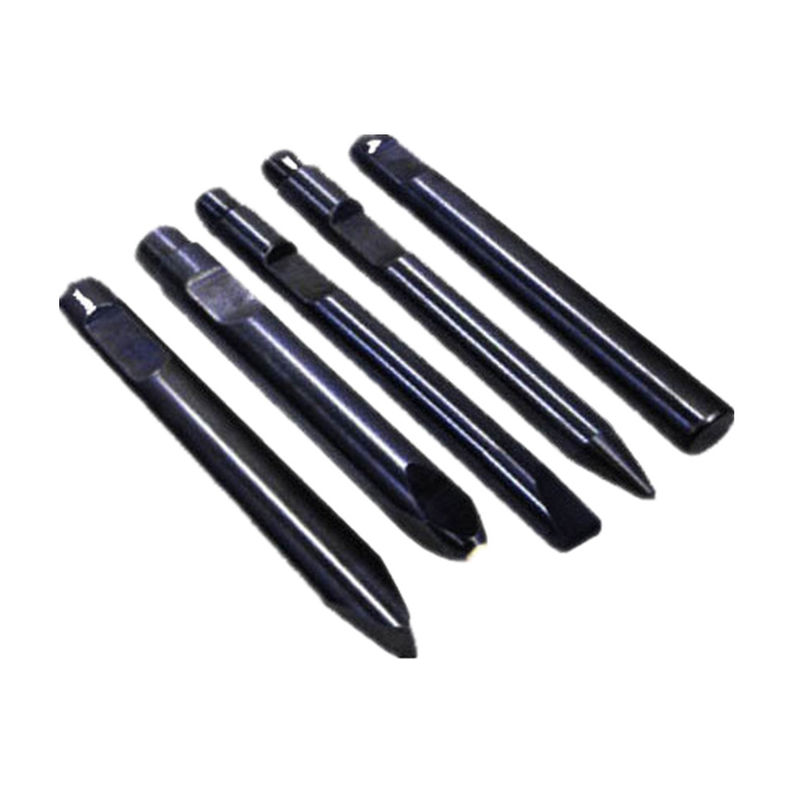

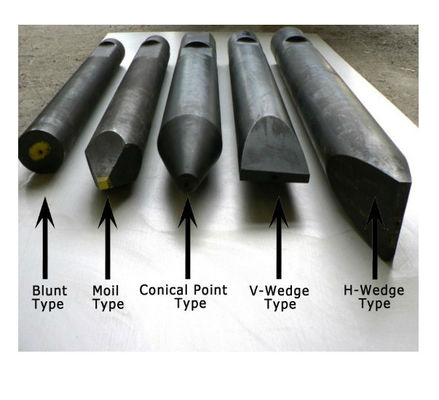

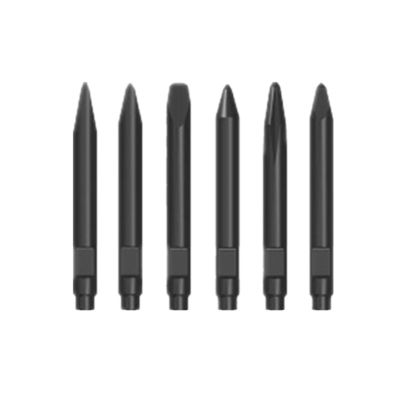

Types

• Moil Point (Pyramid Point): Ideal for focused, high-impact breaking of hard, dense materials like large rocks and reinforced concrete. Its pointed tip delivers extreme pressure to initiate cracks.

• Chisel Point (Flat Tip): The most versatile tool, perfect for general demolition, breaking slabs, and trenching in medium-hard materials. The wide edge provides excellent material-splitting capability.

• Blunt / Punch Tool: Features a flat, wide tip for compacting ground, driving posts, or breaking very hard and brittle surfaces where a pointed tool might get stuck.

• Asphalt Cutter: A wide, chisel-like tool specifically designed for cutting asphalt with minimal fracturing of the underlying base, perfect for road maintenance and repair.

Material Science and Metallurgical Innovation

• High-Carbon Chromium Steel Base: Providing exceptional wear resistance and surface hardness
• Vanadium and Molybdenum Additives: Enhancing grain structure and impact toughness
• Controlled Nickel Content: Improving fatigue resistance and overall durability

1. Austenitization: Heating to precise temperatures to transform the steel microstructure
2. Quenching: Rapid cooling to develop maximum hardness
3. Tempering: Controlled reheating to relieve internal stresses and optimize toughness
4. Surface Induction Hardening: Creating an exceptionally hard exterior (58-62 HRC) while maintaining a ductile core

Applications and Operational Advantages

• Primary Rock Breaking: Efficient fracturing of granite, basalt, limestone, and other dense geological formations
• Concrete Demolition: Rapid processing of reinforced concrete, foundations, and structural elements
• Secondary Reduction: Precision breaking of oversized material at crushing and recycling operations
• Trenching and Tunneling: Consistent performance in confined excavation applications
• Quarry Operations: High-production material fragmentation in mining and aggregate production

1. Reduced Fuel Consumption: Efficient energy transfer minimizes carrier machine fuel requirements
2. Extended Breaker Service Intervals: Properly matched chisels reduce stress on internal breaker components
3. Increased Production Rates: Optimized geometry and materials enable faster breaking cycles
4. Lower Operating Costs: Extended service life and reduced machine wear decrease cost per ton of material processed

Comparative Advantages Over Conventional Chisels

• Advanced Carbide Distribution: Uniform dispersion of tungsten carbide particles in the working surface
• Micro-Structural Optimization: Fine-grained martensitic structure resistant to crack propagation
• Surface Integrity: Minimized micro-fractures and inclusions that serve as wear initiation points

• Optimized Acoustic Impedance Matching: Minimized energy reflection at the tool-material interface
• Reduced Energy Losses: Precision tolerances eliminate "hammering" within the toolholder
• Directional Force Concentration: Geometry that focuses impact energy directly into the fracture zone

• Controlled Failure Mode: Engineered to bend rather than fracture catastrophically
• Splinter-Resistant Design: Surface treatment minimizes hazardous fragment generation
• Temperature Tolerance: Maintains structural integrity across operational temperature extremes (-20°C to 300°C)









  Technical Specifications in Detail

  GCB190 (SB60) 125mm Chisel Specifications

  • Overall Length: 850mm ± 2mm
  • Working Length: 750mm ± 2mm
  • Shank Diameter: 125mm ± 0.5mm
  • Weight: 48.5kg ± 0.5kg
  • Hardness Profile: 60-62 HRC (surface), 45-48 HRC (core)
  • Minimum Retained Strength After Wear: 85% of original at 50mm wear

  GCB210 (SB70) 135mm Chisel Specifications

  • Overall Length: 950mm ± 2mm
  • Working Length: 825mm ± 2mm
  • Shank Diameter: 135mm ± 0.5mm
  • Weight: 58.2kg ± 0.5kg
  • Hardness Profile: 60-62 HRC (surface), 45-48 HRC (core)
  • Minimum Retained Strength After Wear: 85% of original at 50mm wear

  GCB220 (SB81) 140mm Chisel Specifications

  • Overall Length: 1050mm ± 2mm
  • Working Length: 900mm ± 2mm
  • Shank Diameter: 140mm ± 0.5mm
  • Weight: 68.5kg ± 0.5kg
  • Hardness Profile: 60-62 HRC (surface), 45-48 HRC (core)
  • Minimum Retained Strength After Wear: 85% of original at 50mm wear

  Compatibility with Ultra-Heavy Duty Applications

  While specializing in the SB60/GCB190, SB70/GCB210, and SB81/GCB220 compatible chisels, Guchuan Machinery maintains extensive manufacturing capabilities for ultra-heavy duty applications. Our production facilities can manufacture chisels compatible with toolholder diameters of 175mm, 195mm, 200mm, 205mm, and 210mm for the most demanding breaking applications. This capability reflects our comprehensive engineering expertise across the entire spectrum of hydraulic breaking technology.

  Innovative Manufacturing and Quality Assurance

  State-of-the-Art Production Technology

  Guchuan employs advanced manufacturing processes that ensure consistent quality and performance:

  • CNC-Controlled Forging: Precision shaping under computer-controlled conditions
  • Robotic Handling Systems: Eliminating human error in thermal processing stages
  • Laser Measurement and Verification: Sub-millimeter accuracy in dimensional validation
  • Automated Ultrasonic Testing: 100% inspection for internal defects and inconsistencies

  Rigorous Quality Control Protocol

  Each chisel undergoes fourteen distinct quality verification checks:

  1. Raw material spectrometry analysis
  2. Dimensional verification at forging stage
  3. Microstructural examination post-quenching
  4. Hardness testing at multiple points
  5. Surface finish evaluation
  6. Dimensional tolerance verification
  7. Magnetic particle inspection
  8. Ultrasonic flaw detection
  9. Load testing simulation
  10. Fatigue resistance estimation
  11. Coating adhesion testing
  12. Final dimensional audit
  13. Weight verification
  14. Packaging integrity check

  Selection Guidelines and Technical Recommendations

  Matching Chisel to Application

  For optimal performance, we recommend the following application-specific selections:

  • Homogeneous Rock Formations: Standard geometry for consistent material
  • Reinforced Concrete: Enhanced tip geometry for rebar penetration
  • Fractured/Composite Materials: Modified tip configuration for varied resistance
  • Extreme Abrasive Conditions: Special wear-resistant treatment applications

  Operational Best Practices

  1. Proper Installation: Ensure clean toolholder and correct retention system engagement
  2. Regular Inspection: Monitor for wear patterns indicating misalignment or improper operation
  3. Rotation Schedule: Implement systematic chisel rotation to distribute wear evenly
  4. Temperature Management: Allow for thermal stabilization in extreme operating conditions
  5. Contamination Prevention: Protect chisel seats from debris and material ingress

  Economic Analysis and Total Cost of Ownership

  Lifecycle Cost Advantages

  While Guchuan steel chisels may command a modest premium over generic alternatives, their total cost of ownership reveals significant advantages:

  • Extended Service Life: 30-40% longer operational life reduces replacement frequency
  • Reduced Machine Wear: Properly matched tools decrease stress on carrier and breaker
  • Lower Downtime Costs: Reduced changeout frequency and enhanced reliability
  • Improved Productivity: Efficient energy transfer increases tons processed per hour
  • Residual Value: Maintain usable length for secondary applications after primary service

  Return on Investment Calculation

  Based on field data from multiple operations, Guchuan chisels typically deliver a 200-250% return on investment premium compared to economy alternatives when factoring in all operational cost variables.




































  Technical Support and Customer Partnership

  Comprehensive Technical Resources

  Guchuan provides extensive support resources to maximize customer success:

  • Application Engineering Support: Site-specific recommendations for optimal tool selection
  • Wear Analysis Services: Laboratory evaluation of wear patterns and failure modes
  • Operational Training: Best practices for installation, operation, and maintenance
  • Performance Monitoring: Tools to track and optimize tool utilization

  Global Logistics and Supply Chain

  With established partnerships worldwide, we ensure timely delivery and consistent supply:

  • Regional Inventory Stocking: Strategic locations for reduced lead times
  • Emergency Response Capability: Expedited processing for critical requirements
  • Documentation Compliance: Complete certification and documentation packages
  • Reverse Logistics: Streamlined processes for warranty and evaluation returns

  Environmental and Sustainability Considerations

  Resource Efficiency

  Our manufacturing processes and product design incorporate multiple environmental considerations:

  • Material Efficiency: Optimized designs minimize raw material requirements
  • Recyclability: Standardized steel alloys facilitate complete recycling
  • Energy Recovery: Manufacturing waste heat captured for facility requirements
  • Extended Lifecycle: Reduced replacement frequency decreases overall resource consumption

  Emission Reduction Contributions

  Through improved breaking efficiency, Guchuan chisels indirectly contribute to emission reductions:

  • Reduced Fuel Consumption: Efficient tools decrease carrier machine operating hours
  • Extended Equipment Life: Reduced stress prolongs primary equipment service life
  • Optimized Operations: Faster breaking cycles reduce overall project duration and associated impacts










































  Conclusion: Engineering Excellence for Demanding Applications

  Guchuan Machinery's steel chisels for the GCB190, GCB210, and GCB220 hydraulic breakers represent the pinnacle of tool engineering for demanding breaking applications. From precision-matched dimensions to advanced metallurgical properties, every aspect of these tools is optimized for performance, durability, and value.

  Our commitment to innovation extends beyond product manufacturing to comprehensive customer partnership. We work collaboratively with operations to understand specific challenges and develop solutions that deliver measurable improvements in productivity, cost efficiency, and operational safety.

  As you evaluate tooling options for your hydraulic breaking operations, consider not just the initial acquisition cost but the total operational impact. The right tool, precision-matched to your equipment and application, delivers value far beyond its purchase price through extended life, reduced downtime, and improved productivity.

  Contact Guchuan Machinery Today

  Discover how our engineered steel chisels can transform your breaking operations. Contact our technical team for application-specific recommendations, detailed specifications, or to arrange product testing. As specialists in hydraulic breaker technology with over a decade of innovation and manufacturing excellence, we're positioned to be your trusted partner for the most demanding breaking challenges.
